Kapaisi Waist Height Tripod Turnstile KPS-TD-3102

Kapaisi Waist Height Tripod Turnstile KPS-TD-3102

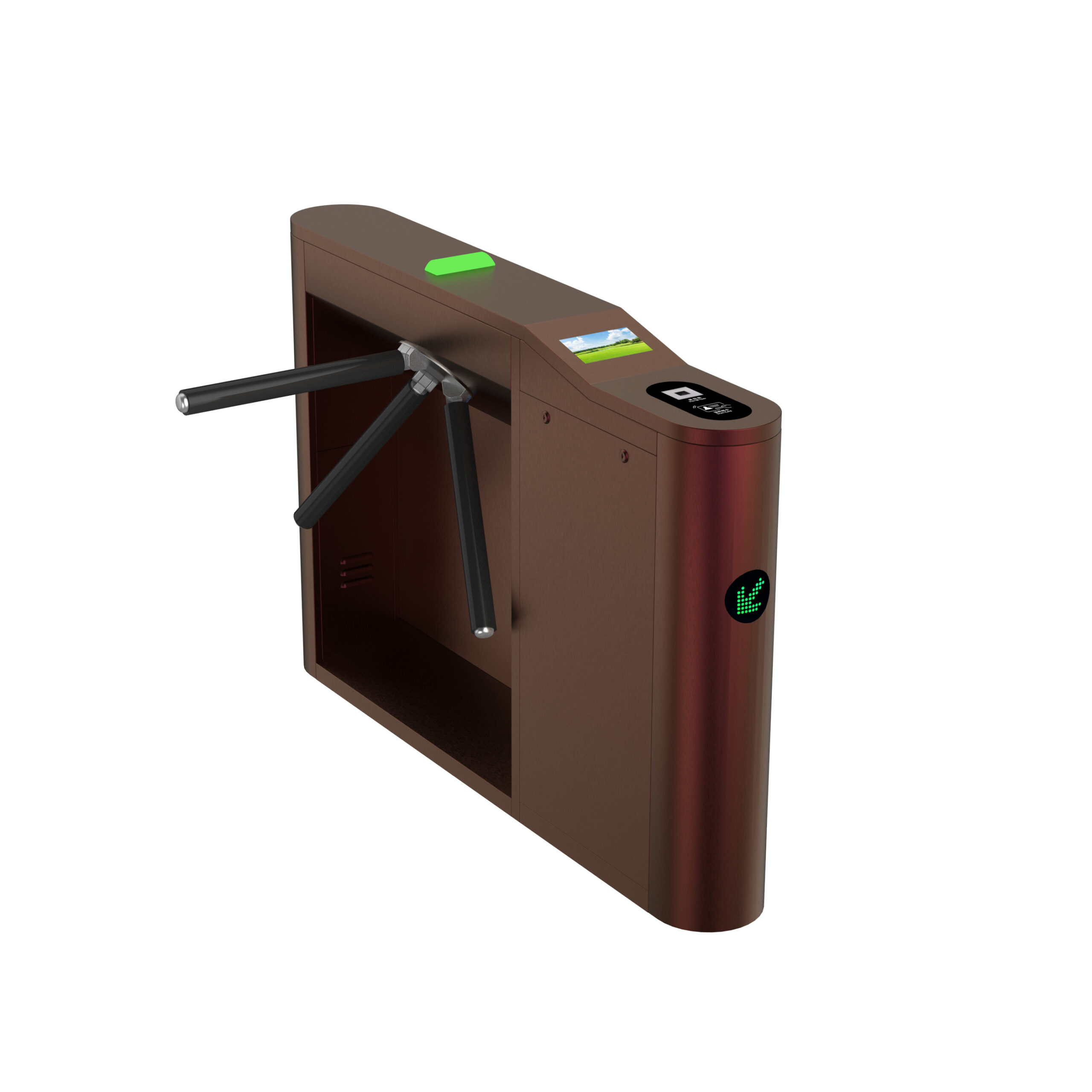

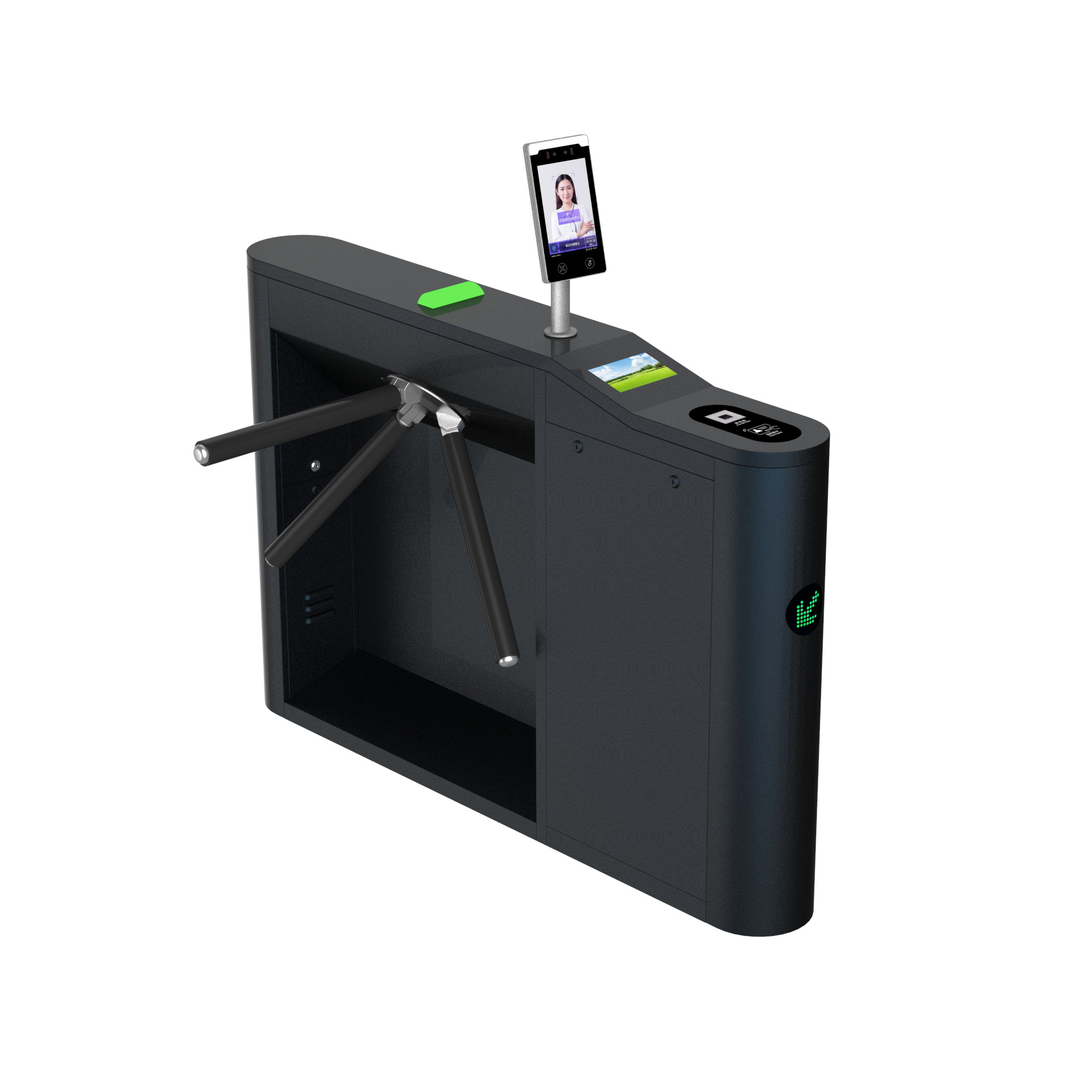

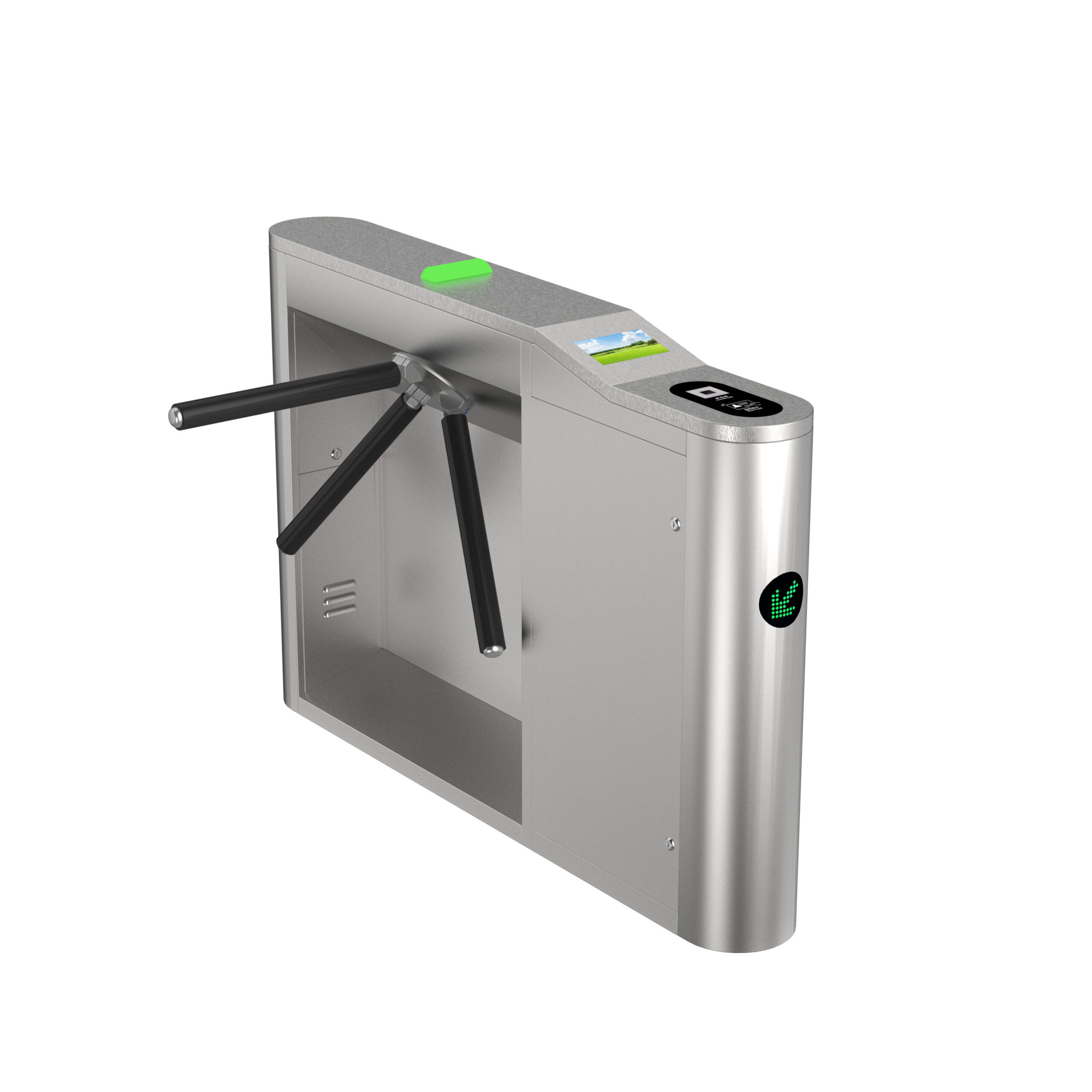

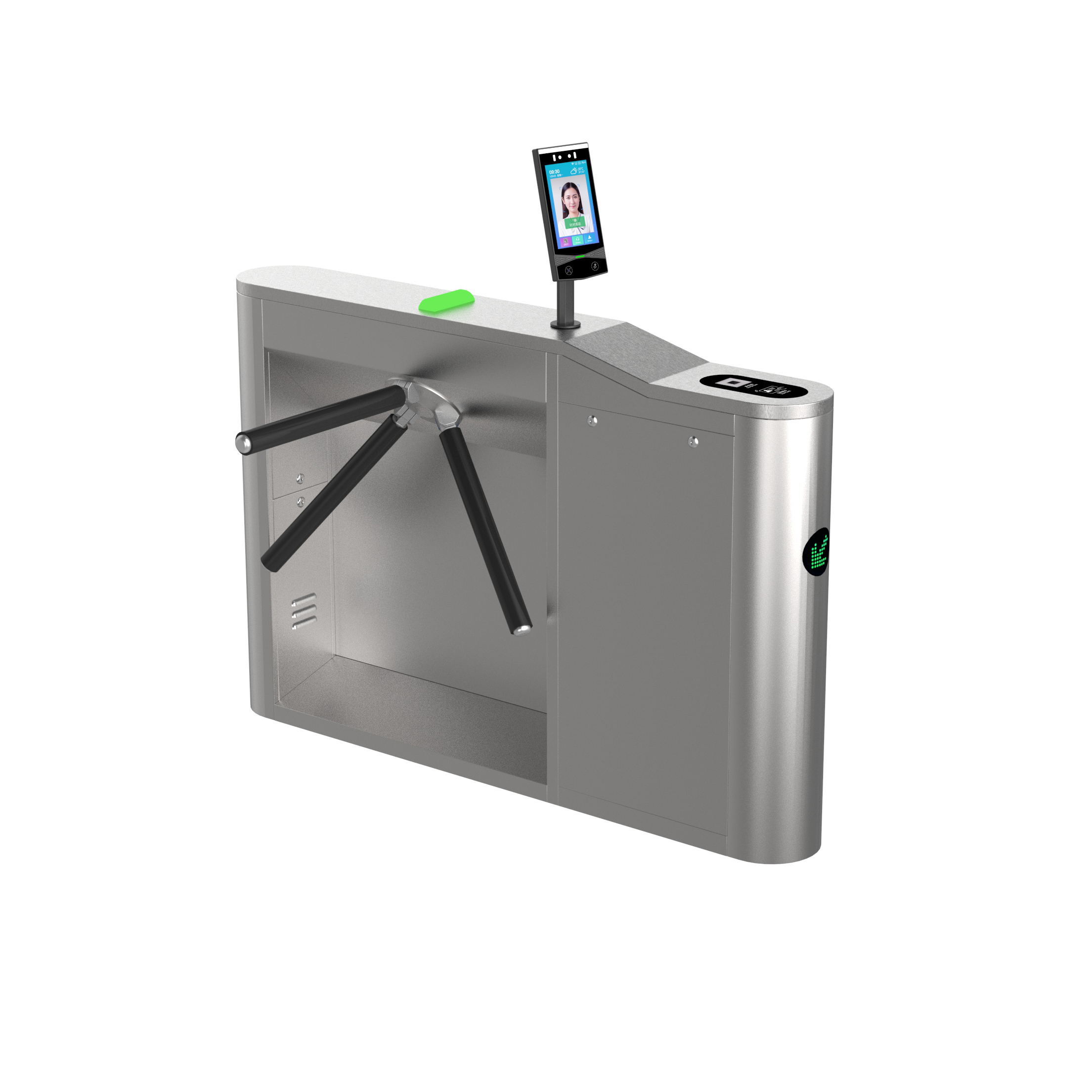

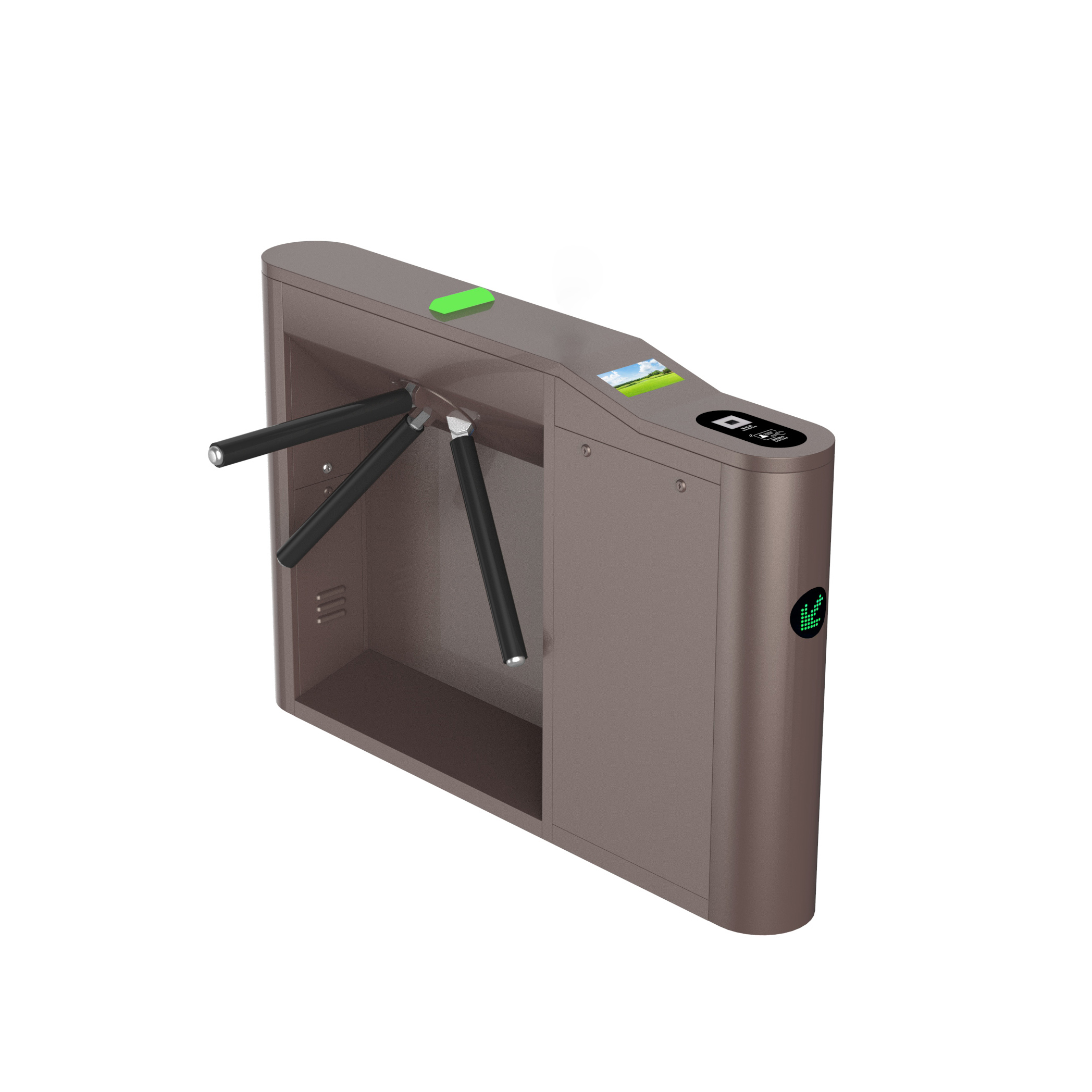

The KPS-TD-3102 Ticketing Tripod Turnstile is equipped with high-longevity and high-stability core components, designed to handle large passenger flows in ticketing scenarios. It supports optional integration with facial recognition modules, ticketing control units, 7-inch HD LCD displays, ID card readers, various IC/ID card readers, QR code scanners, and ID verification devices. Interface documentation is available to facilitate seamless integration with various systems. This turnstile is widely used in entrance and exit control scenarios such as scenic spots, buildings, residential communities, universities, and stadiums.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• High-Quality Material:The housing is made of premium 304 stainless steel with a top cover thickness of 1.75mm (national standard) and a body thickness of 1.45mm. The structure includes side sealing panels for enhanced strength and stability.
• Precision Craftsmanship:The entire machine uses a grooving process with minimal gap spacing and features an outdoor waterproof design, making it suitable for both indoor and outdoor environments.
• Brushless DC Motor: Equipped with a brushless DC motor featuring power-on self-check, low failure rate, and exceptionally long service life.
• LED Indicators: Large LED indicators display the direction and status of passage. Voice and light alerts are triggered for both authorized access and unauthorized pushing attempts.
• Low-Noise Operation:Special noise-reduction design in the mechanism ensures quiet operation for an improved user experience.
• Access Control:Only authorized users are allowed to pass. If an unauthorized person attempts to push through, the clutch locks automatically and an audible and visual alarm is triggered.
• Auto-Reset Function:If a user fails to pass within the preset time after authorization, the system automatically cancels the access permission. The time limit is configurable.
• Flexible Passage Modes:Supports multiple combinations of normally open/closed modes, bi-directional or one-way access, and free passage modes.
• Passage Memory Function: After receiving multiple valid authorizations, the gate allows the corresponding number of users to pass, tracking the number of people in real time.
• Fire Linkage & Emergency Mode:Supports external fire alarm signals or emergency button signal lines. Upon receiving the signal, the arm drops automatically to comply with emergency exit regulations.
• Anti-Reverse Passage:The controller detects direction via sensors. Only forward rotation is allowed after authorization; reverse rotation triggers a lock.
• Automatic Arm Drop & Raise:In the event of a power outage, the arm automatically drops to ensure unobstructed passage. Once power is restored, the arm automatically raises, improving operational efficiency.
• Customizable Voice Prompts:Supports a variety of voice settings, allowing specific voice broadcasts after card swipes for different application environments.
• Remote Control Interface:Provides a linkage input interface for remote control of the gate, meeting special user requirements, fire safety demands, and remote management.
• Self-Diagnosis & Alarm:Features automatic fault detection and alarm prompts, making maintenance and usage more convenient.
• Ventilation System: Designed with a special airflow structure, it includes dual ball-bearing long-life fans and thermal insulation to prevent condensation caused by temperature differences between the inside and outside of the cabinet.
• Electrical Safety:Equipped with a built-in leakage protection switch to enhance personal safety. All internal electrical modules operate at voltages below 24V, ensuring safer on-site wiring.
• Peripheral Support:Compatible with optional peripherals including facial recognition modules, ticketing control units, 7-inch HD LCD display, ID card readers, various IC/ID card readers, QR code scanners, and ID verification devices.
