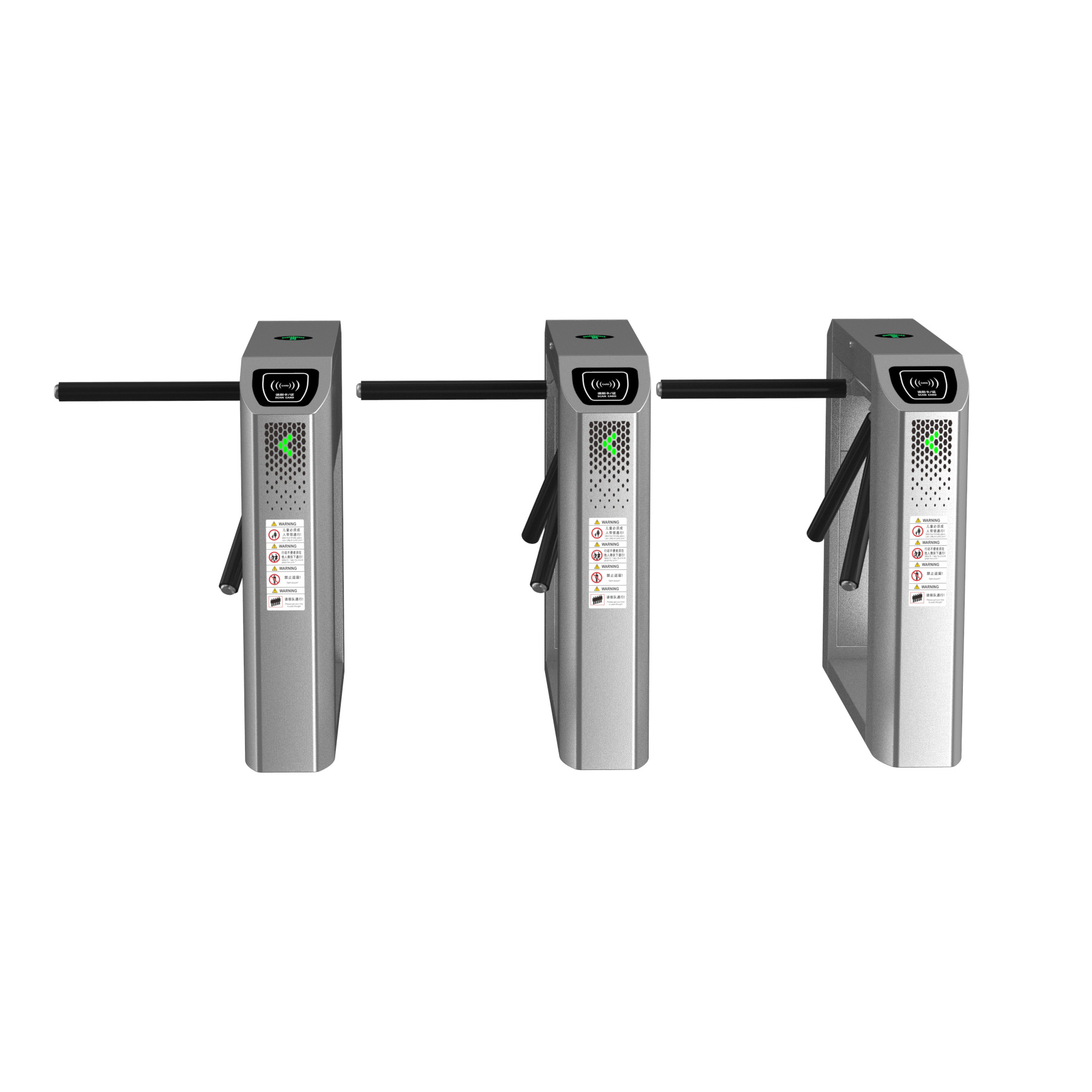

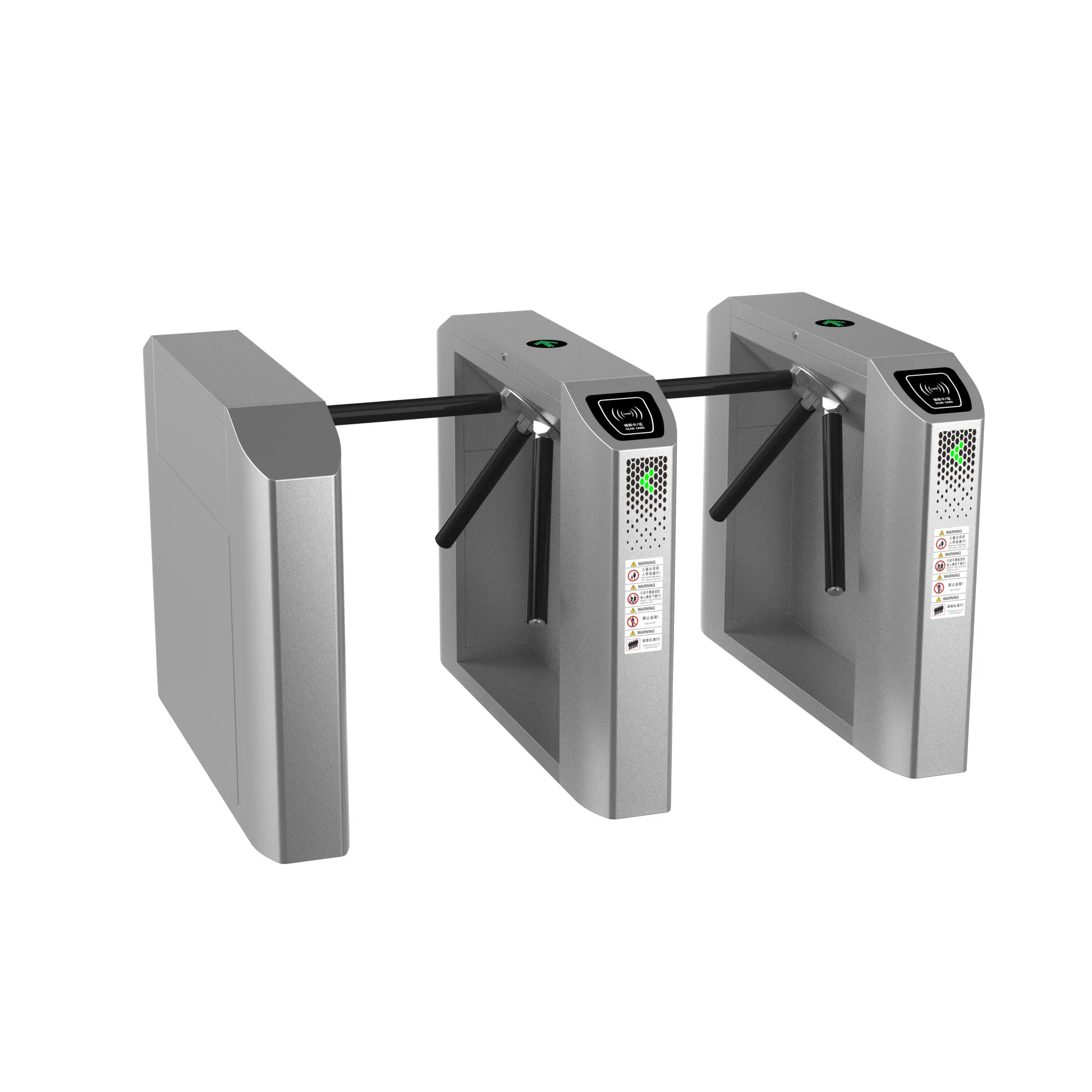

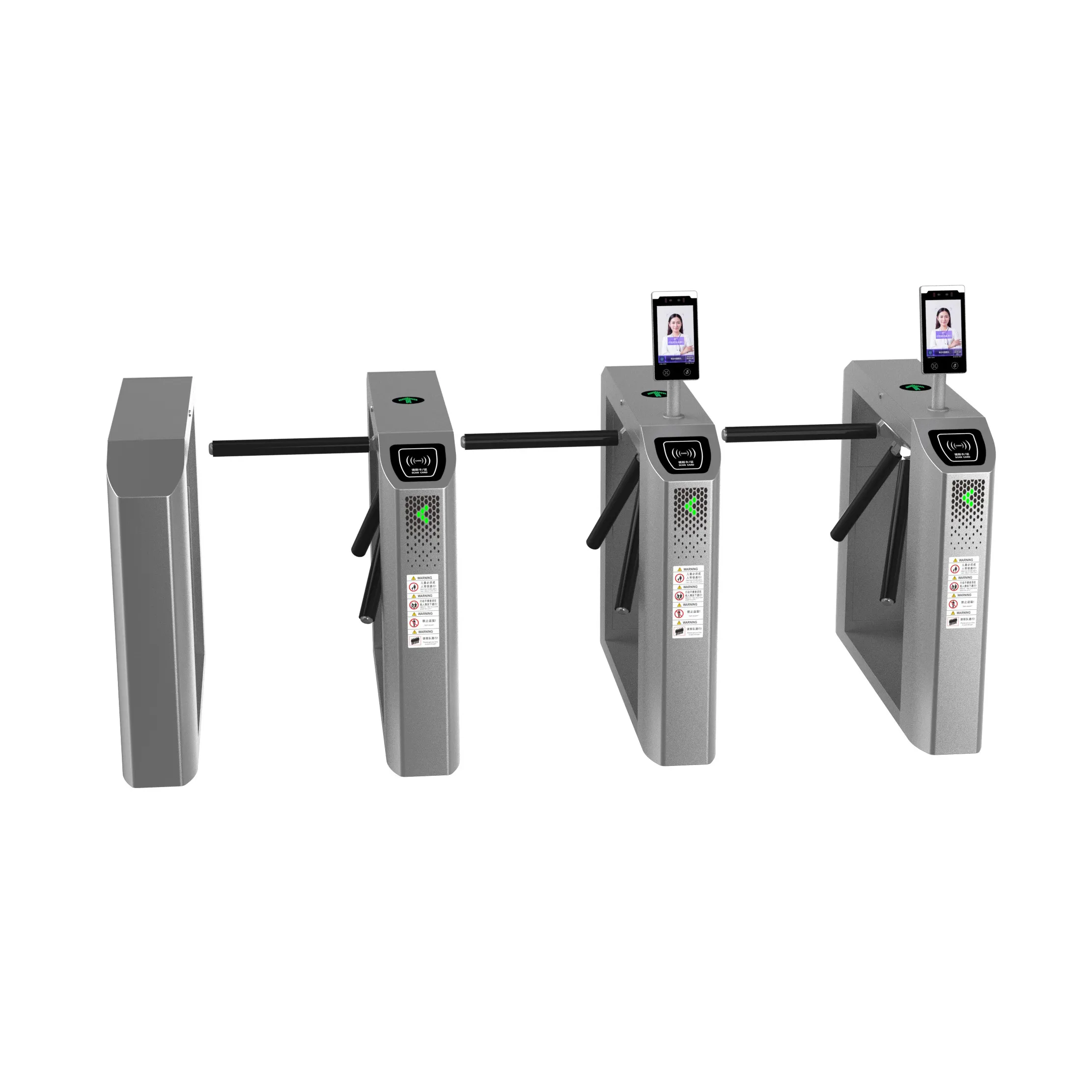

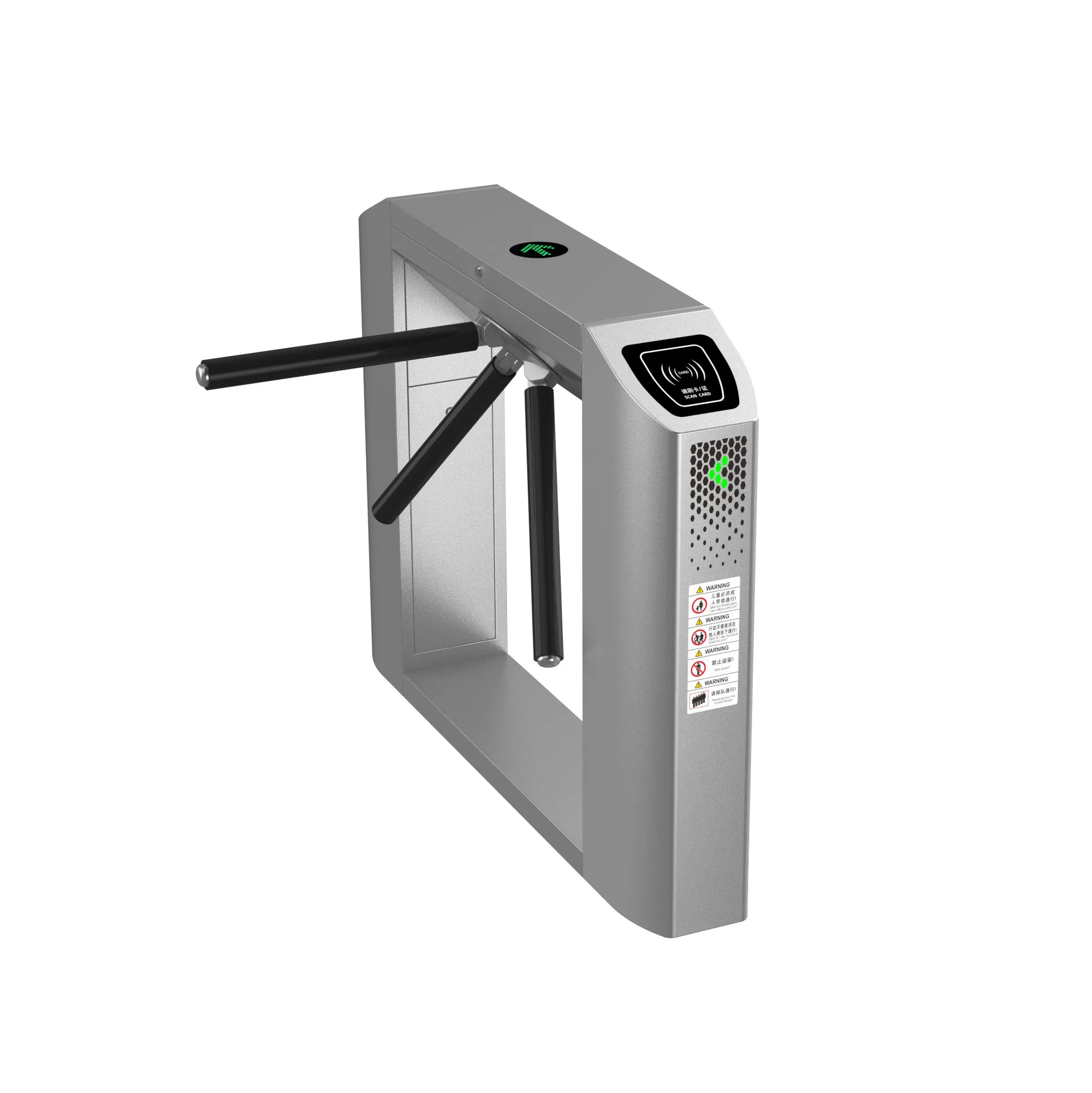

Kapaisi Vertical Tripod Turnstile KPS-TD-3103

Kapaisi Vertical Tripod Turnstile KPS-TD-3103

The Kapaisi Vertical Tripod Turnstile KPS-TD-3103 features a hydraulic silent semi-automatic mechanism, ensuring smooth operation with low noise. It is equipped with a six-tooth molded ratchet and a cast aluminum rotating disc, providing a well-designed, stable, and durable structure. This ensures high security, anti-tailgating, and anti-reverse rotation capabilities, making it ideal for high-traffic ticketing scenarios. The device uses a standard electrical interface and supports optional integration with facial recognition modules, various IC/ID card readers, QR code scanners, and ID card readers.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material: The housing is made of high-quality SUS 304 stainless steel, which is rust-resistant, durable, and structurally stable.
• Mechanism Type:Equipped with a self-adjusting hydraulic damper, the mechanism significantly reduces noise when the rod returns to position, ensures impact-free operation, and allows the rod to decelerate and reset automatically.
• Audio-Visual Indicators:The top cover includes an LED light indicating the direction of passage (allowed or denied). Side indicator lights are also standard to inform pedestrians of lane availability.
• Anti-Tailgating: The system automatically cancels access permission after each valid passage to prevent tailgating.
• Anti-Impact Function:The rod locks automatically if no valid open signal is received.
• Anti-Reverse Rotation:The mechanism is equipped with a six-tooth molded ratchet to prevent the rotating unit from moving in the reverse direction.
• Passage Memory Function:Configurable to remember multiple consecutive access signals. For example, five valid card swipes allow five people to pass consecutively.
• Auto Reset Function:If the user fails to pass within a set time after authorization, the system automatically cancels access. The time limit can be customized in the mainboard settings.
• Power Failure Passage: The arm will automatically drop during a power outage, allowing for quick and safe passage in emergencies, meeting fire escape requirements.
• Custom Voice Prompts: Multiple voice options are available, enabling specific voice broadcasts after card swipes in different application environments.
• Selectable Passage Modes:Supports bi-directional and single-direction access, which can be set via the mainboard menu.
• Entry/Exit Counting Support: The mainboard can output passage signals for both entry and exit directions. It supports external dual-direction counters to display the number of users passing through each direction.
• Fire Linkage and Emergency Mode:Can connect to fire alarm systems or emergency button signal lines. Upon receiving a signal, the device enters free-passage mode to comply with emergency requirements.
• Wireless Remote Control (Optional):Optional wireless receiver and remote kit allow for remote opening and closing of the gate.

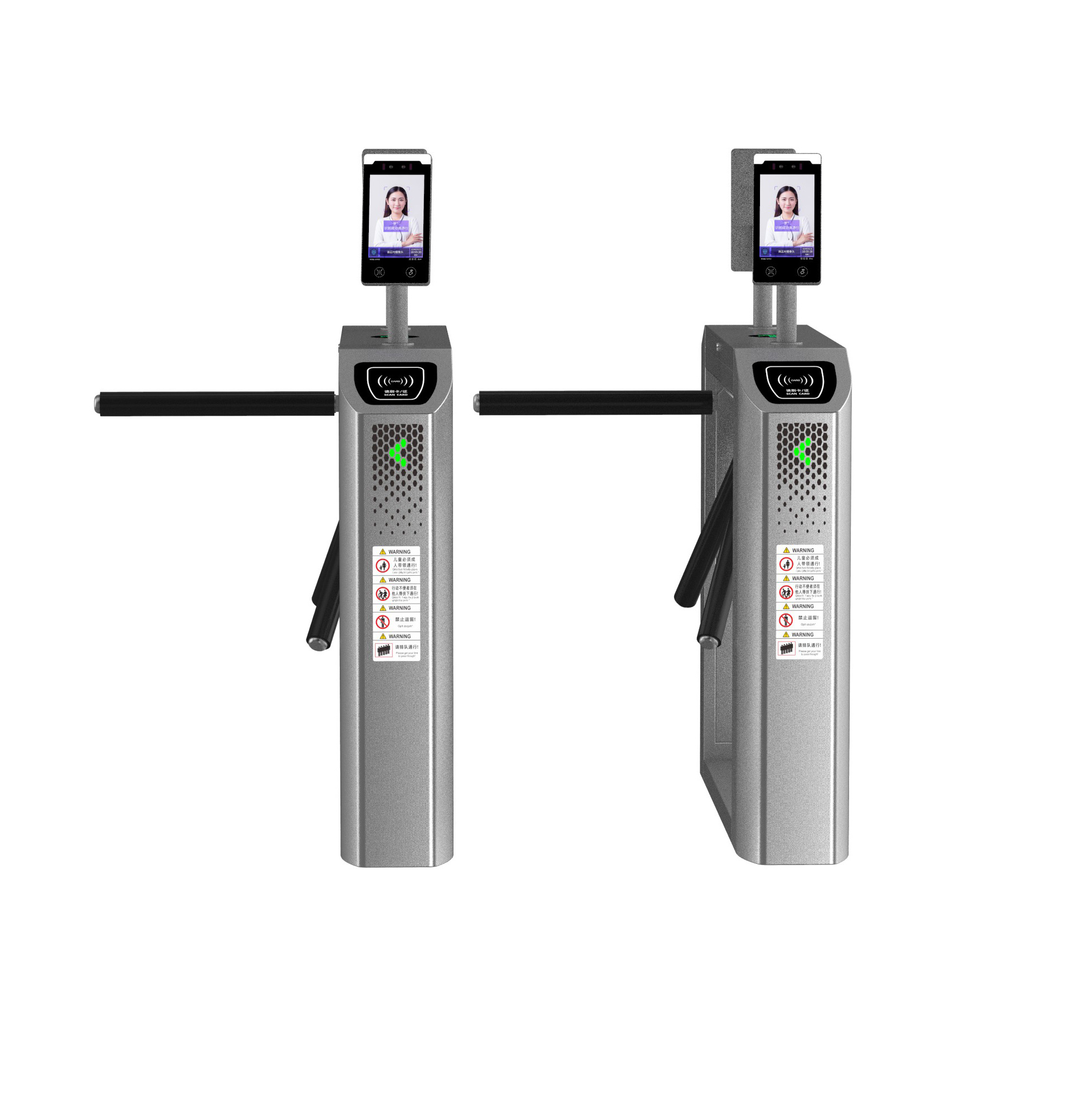

• Optional Authentication Modules:Supports integration with card readers, facial recognition, fingerprint scanners, QR code readers, and ID card readers, enabling flexible multi-authentication combinations.
