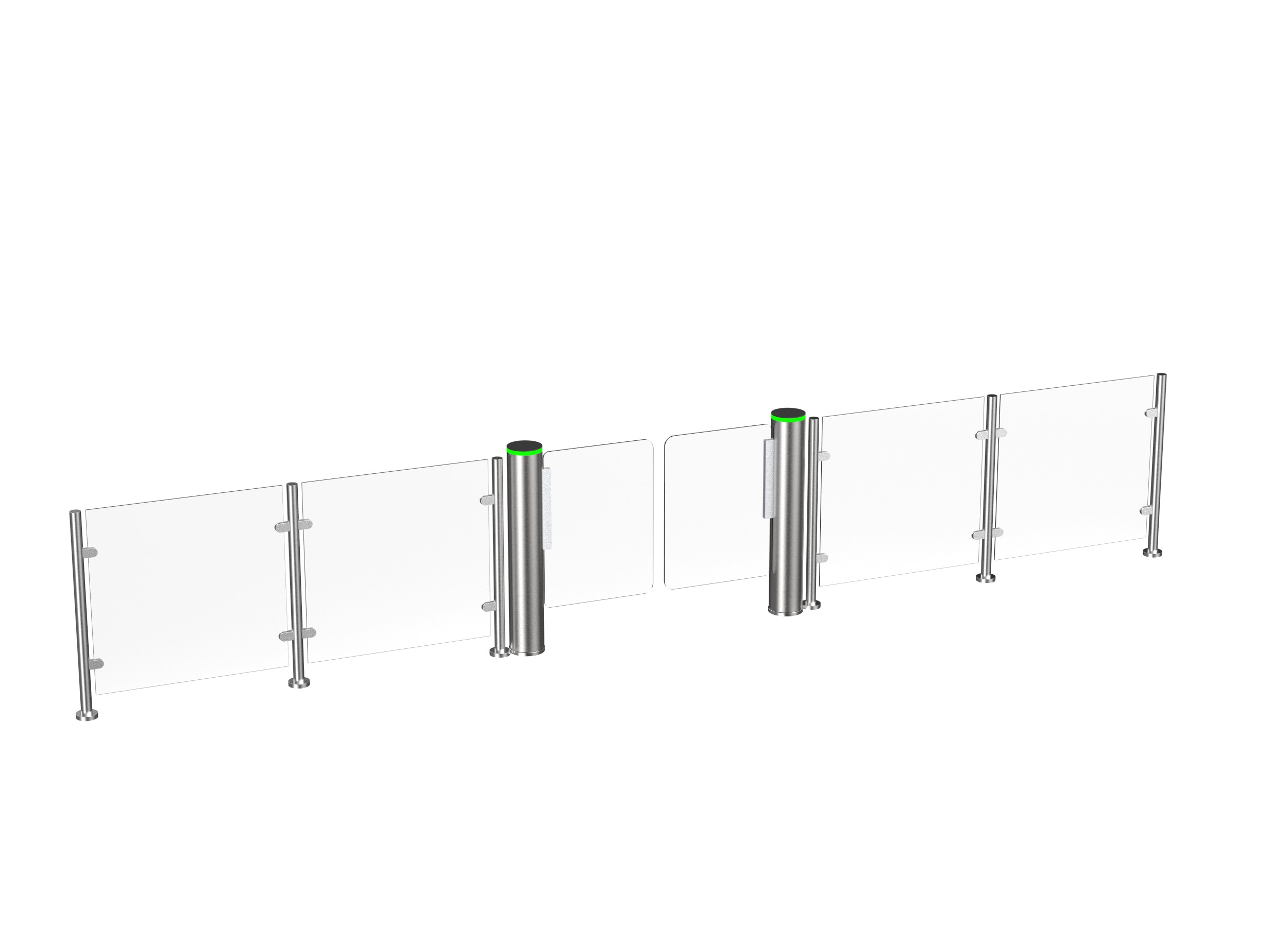

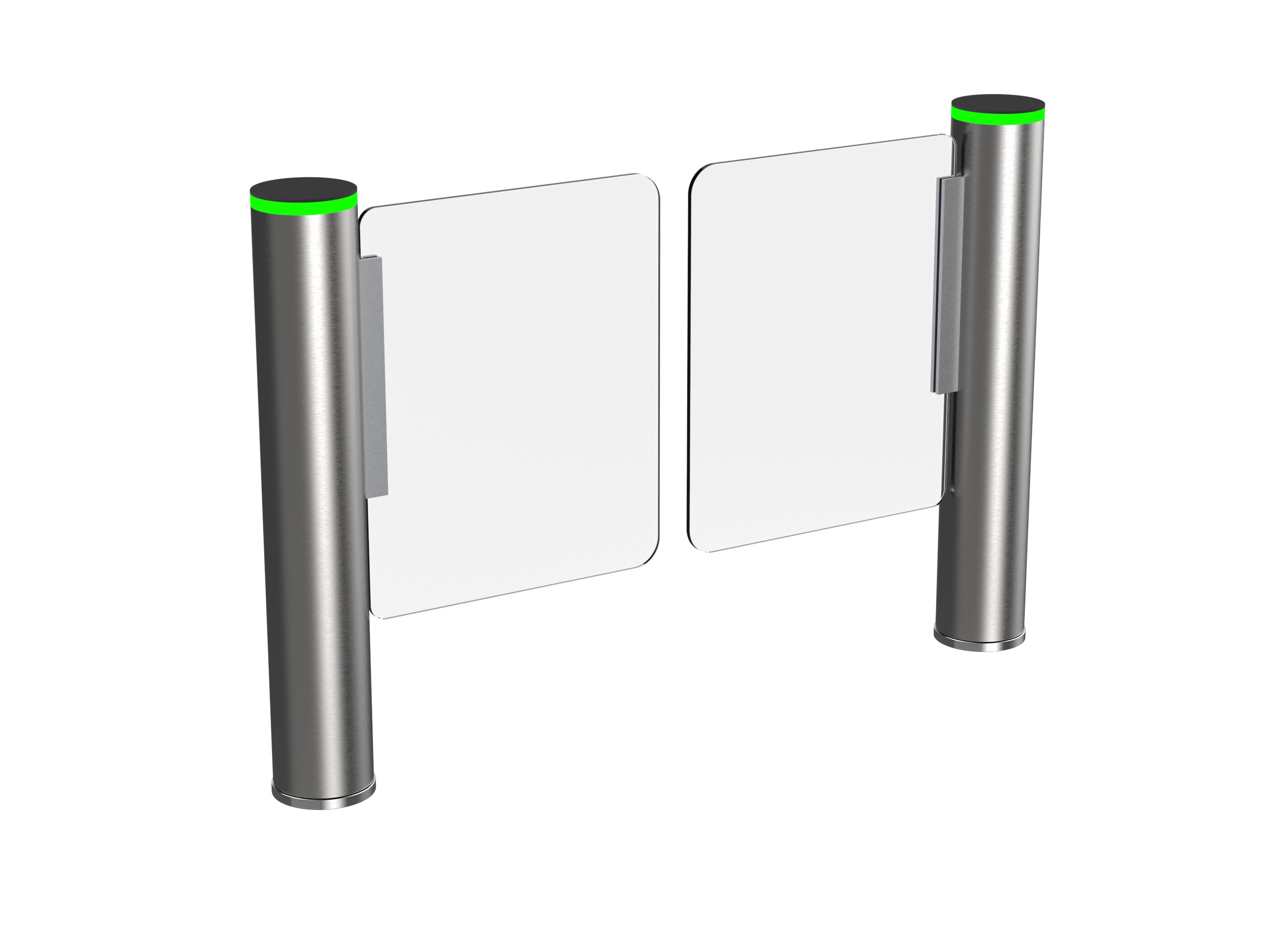

Kapaisi Intelligent Swing Turnstile Barrier KPS-TD-3301

Kapaisi Intelligent Swing Turnstile Barrier KPS-TD-3301

Kapaisi Intelligent Swing Turnstile Barrier KPS-TD-3301 features a sleek and modern design with a durable, impact-resistant structure. It supports a wide range of identification devices such as IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals, ensuring seamless integration with various access control systems. Ideal for high-security and high-traffic areas such as office buildings, campuses, and subway stations.

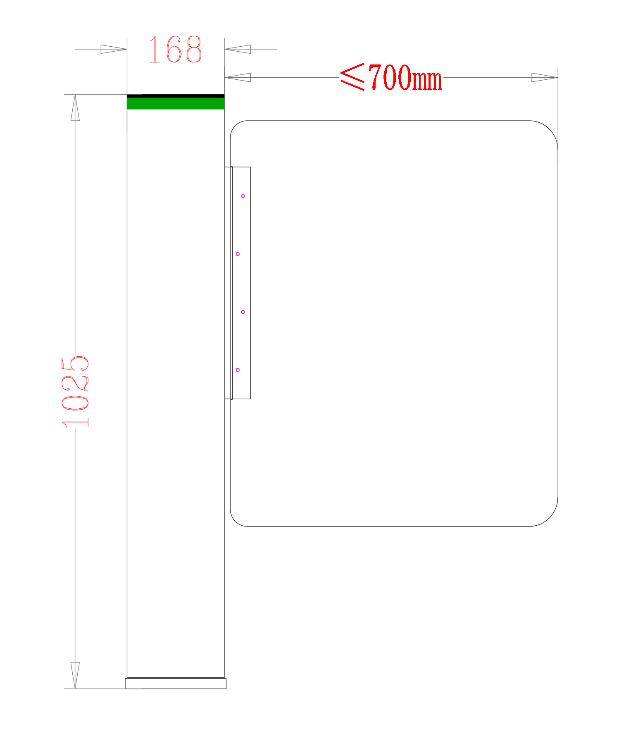

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material Characteristics:The housing is made of 2.5mm high-quality 304 stainless steel, ensuring a stable and robust structure.

• Motor Type:Equipped with a 60W DC brushless motor that performs a self-check upon power-on. It offers low failure rates and long service life.

• Audio-Visual Alarm Function:Integrated LED indicators show passage direction and status. Audible and visual alerts are triggered for authorized access and unauthorized entry.

• Auto-Reset Function: If no passage occurs within the preset time after the gate opens, the system will automatically cancel the user’s access rights. The passage time can be customized.

• Customizable Voice Prompts:Supports multiple voice prompt options, allowing specific audio messages to be played after card swiping according to different usage scenarios.

• Multiple Passage Modes:Supports bi-directional controlled access, or controlled entry with sensor-based exit. Gate opening/closing speed can be adjusted based on traffic flow to improve operational efficiency.

• Simplified Master-Slave Design:When used in pairs, only four wires are needed to connect the master and slave units, making on-site wiring easy (no connection cable required when used as a single unit).

• Standard Wireless Remote Control:Comes with two long-range remote controls, enabling peak-hour always-open mode, single-pass entry, and single-pass exit functions.

Safety Features:

• Obstacle Rebound Function:The gate is equipped with an obstacle rebound mechanism. If resistance is detected while the gate wing is resetting, the motor will automatically stop to prevent injury. When closing, if the infrared sensor is not triggered but an obstacle is encountered, the gate will rebound to the open position.

• Power-Off Free Passage:In the event of a power failure, the gate wings will automatically open, allowing free passage to prevent panic.

• Brake Lock Anti-Collision Design:Utilizes a gear-type electromagnetic clutch for anti-collision locking. If a person attempts to pass or force open the gate without a valid signal, and the swing arm is pushed beyond a preset angle, the brake will engage to lock the gate and prevent unauthorized access. The gate then automatically resets and triggers an alarm. This design not only ensures personal safety but also minimizes mechanical damage from repeated collisions, extending the lifespan of the drive mechanism.

• Fire Alarm Integration: When a fire alarm signal is triggered, the gate will automatically open to allow emergency evacuation.
