Kapaisi KPS-TD-3305 Security Turnstile Gate

Kapaisi KPS-TD-3305 Security Turnstile Gate

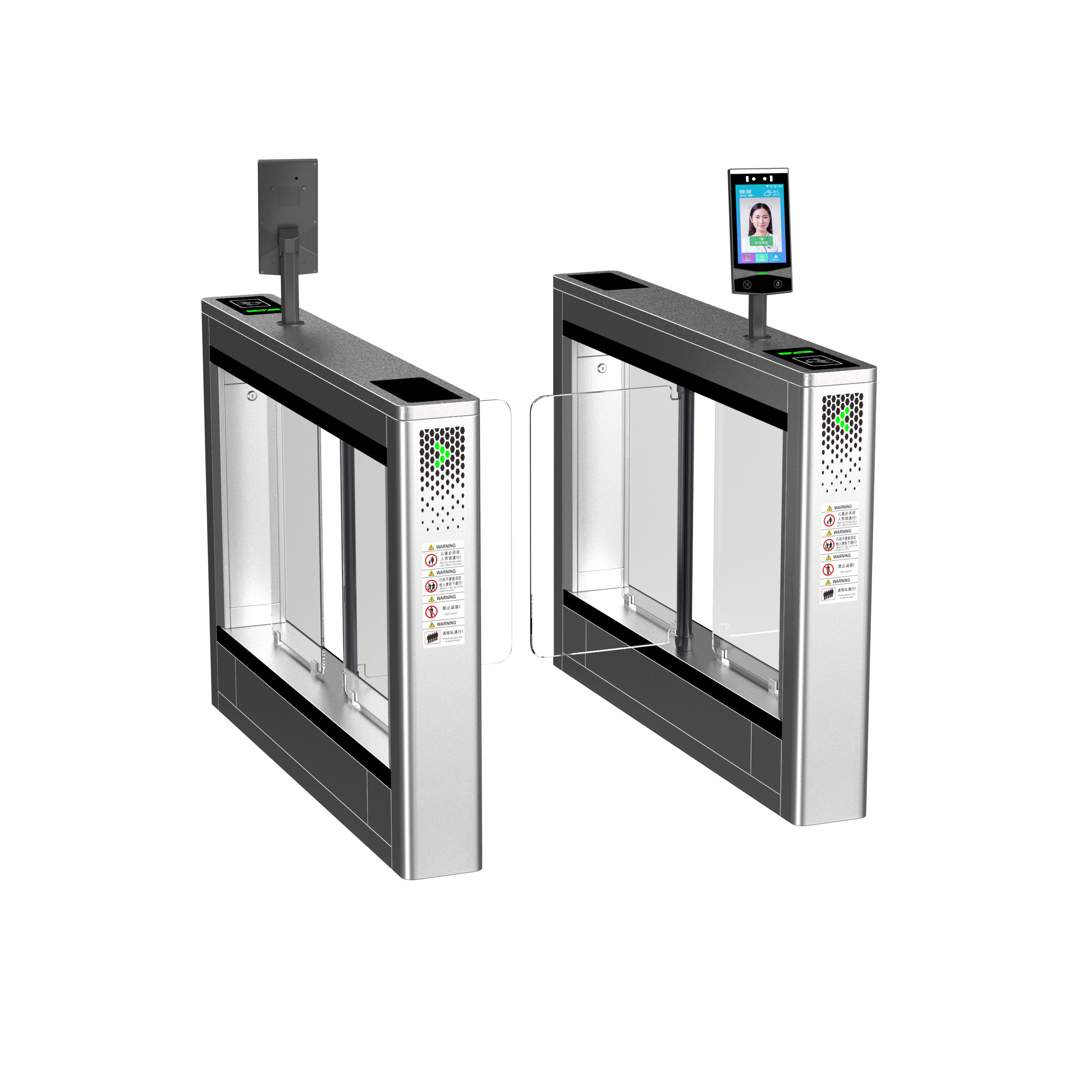

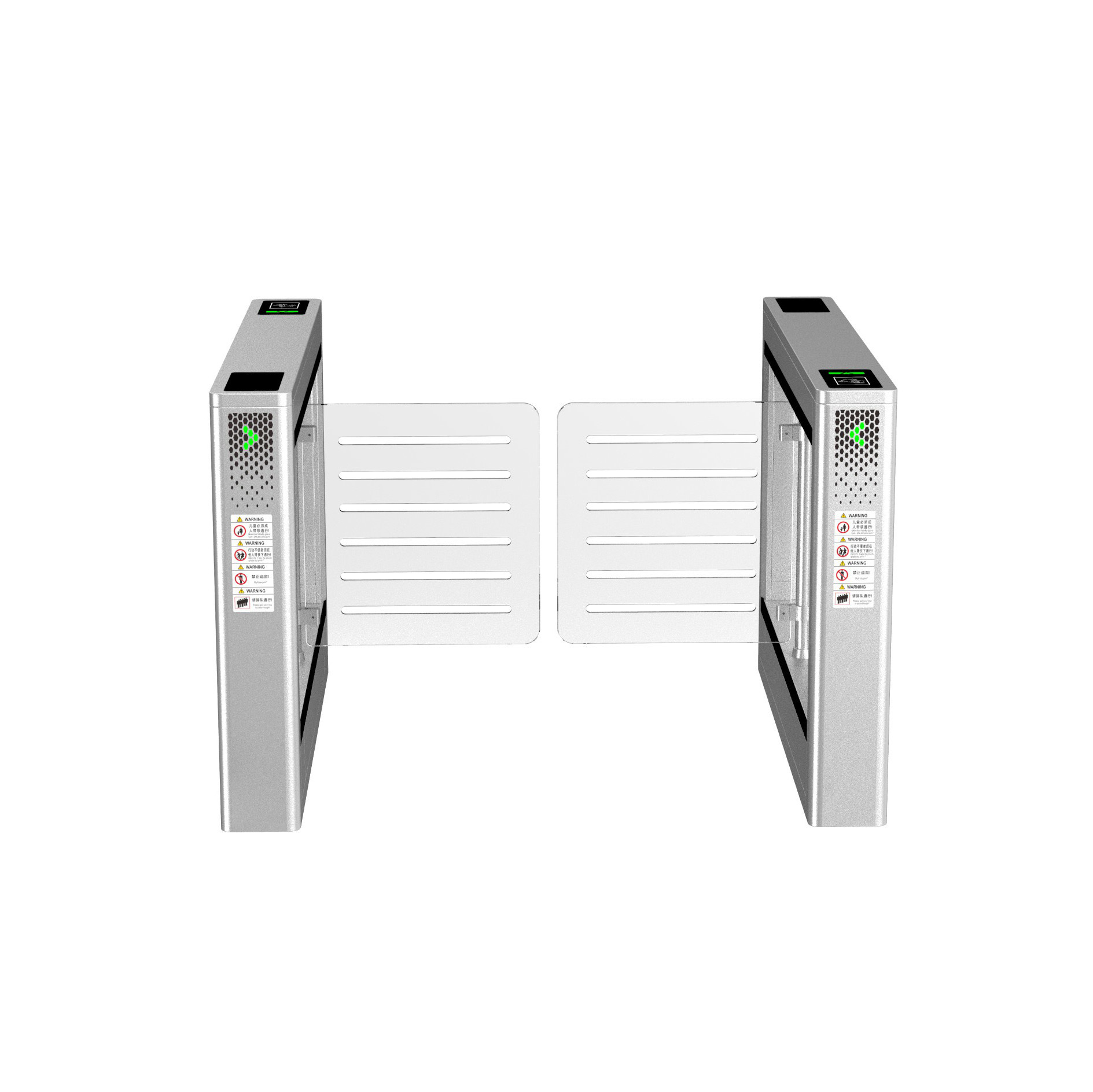

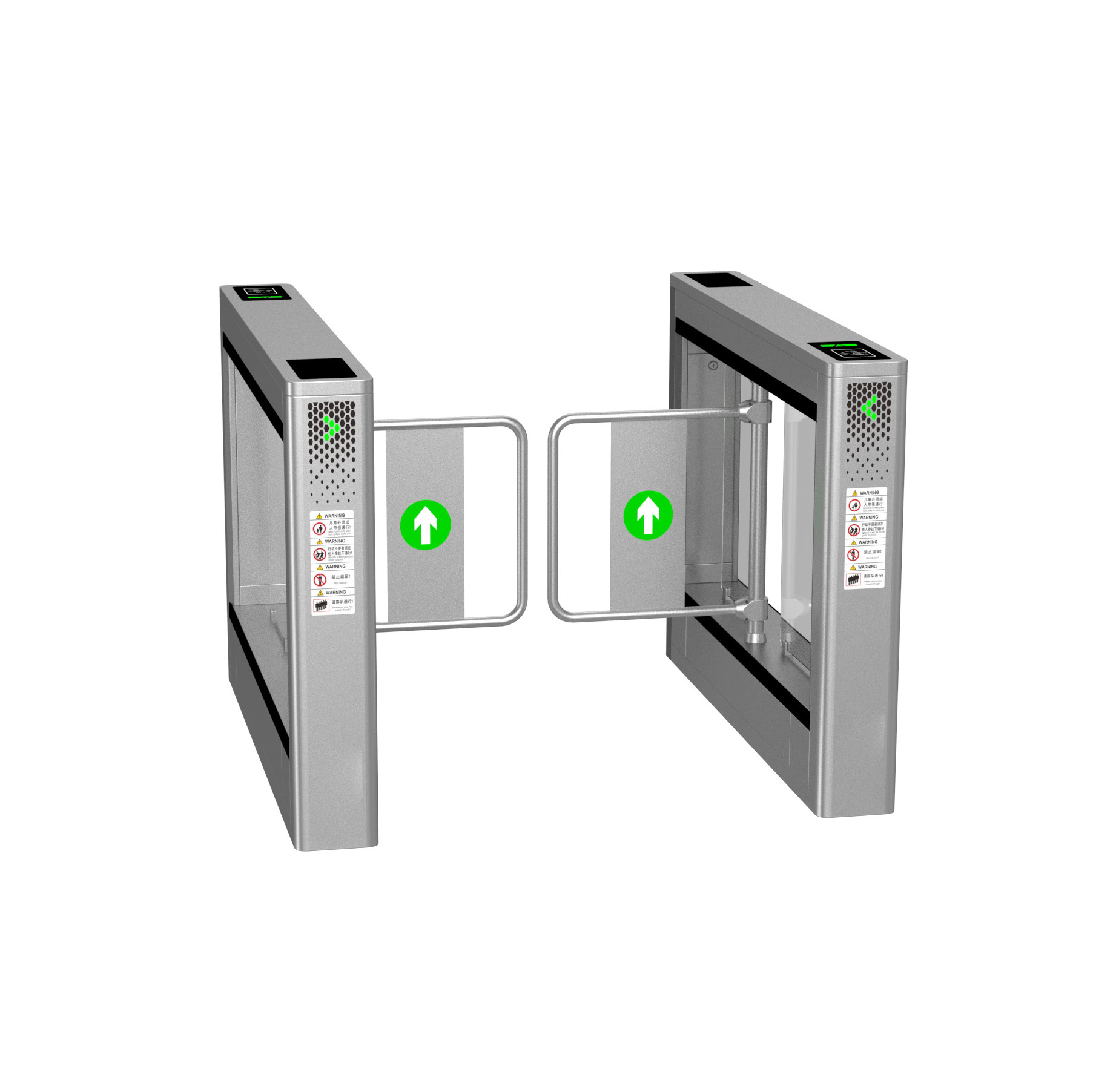

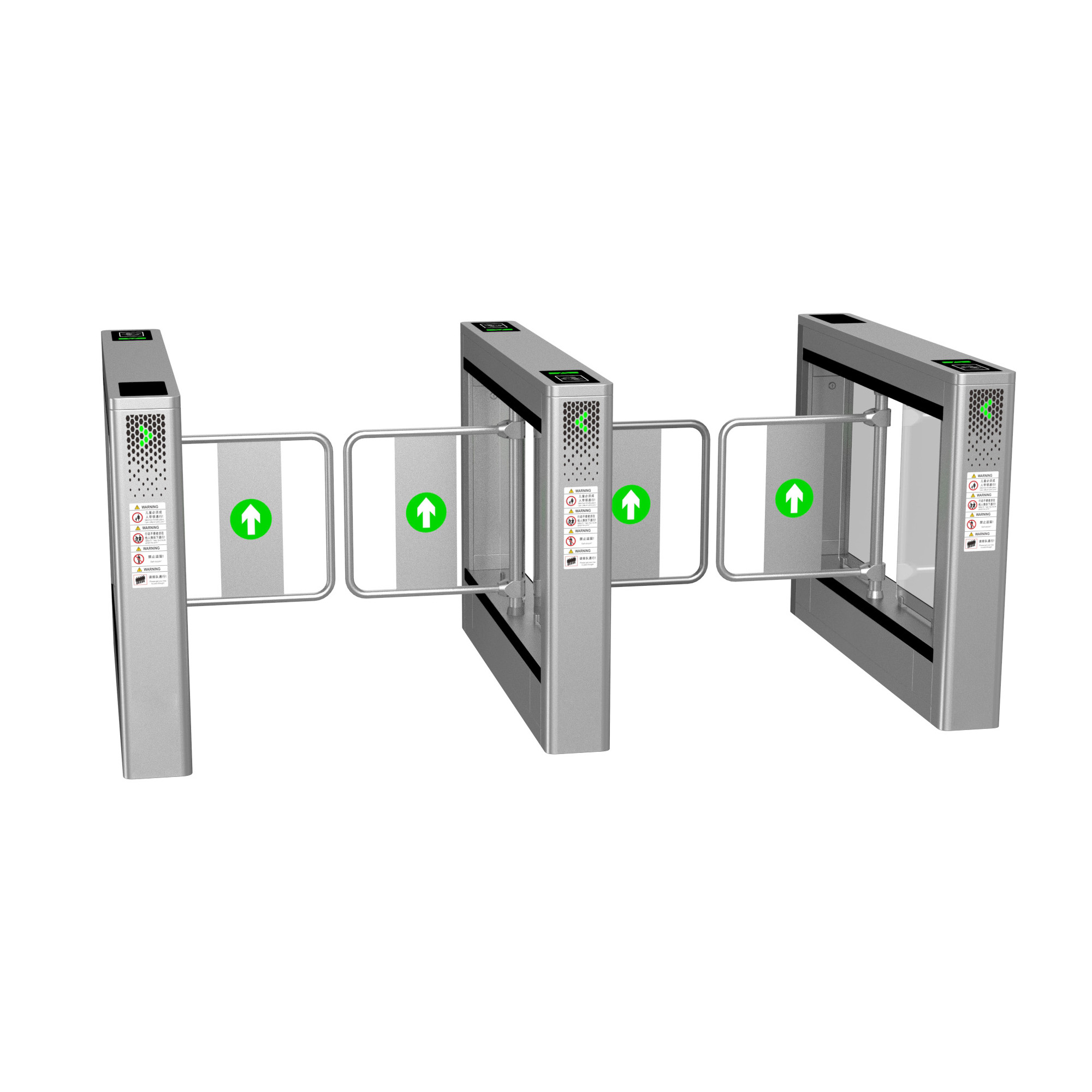

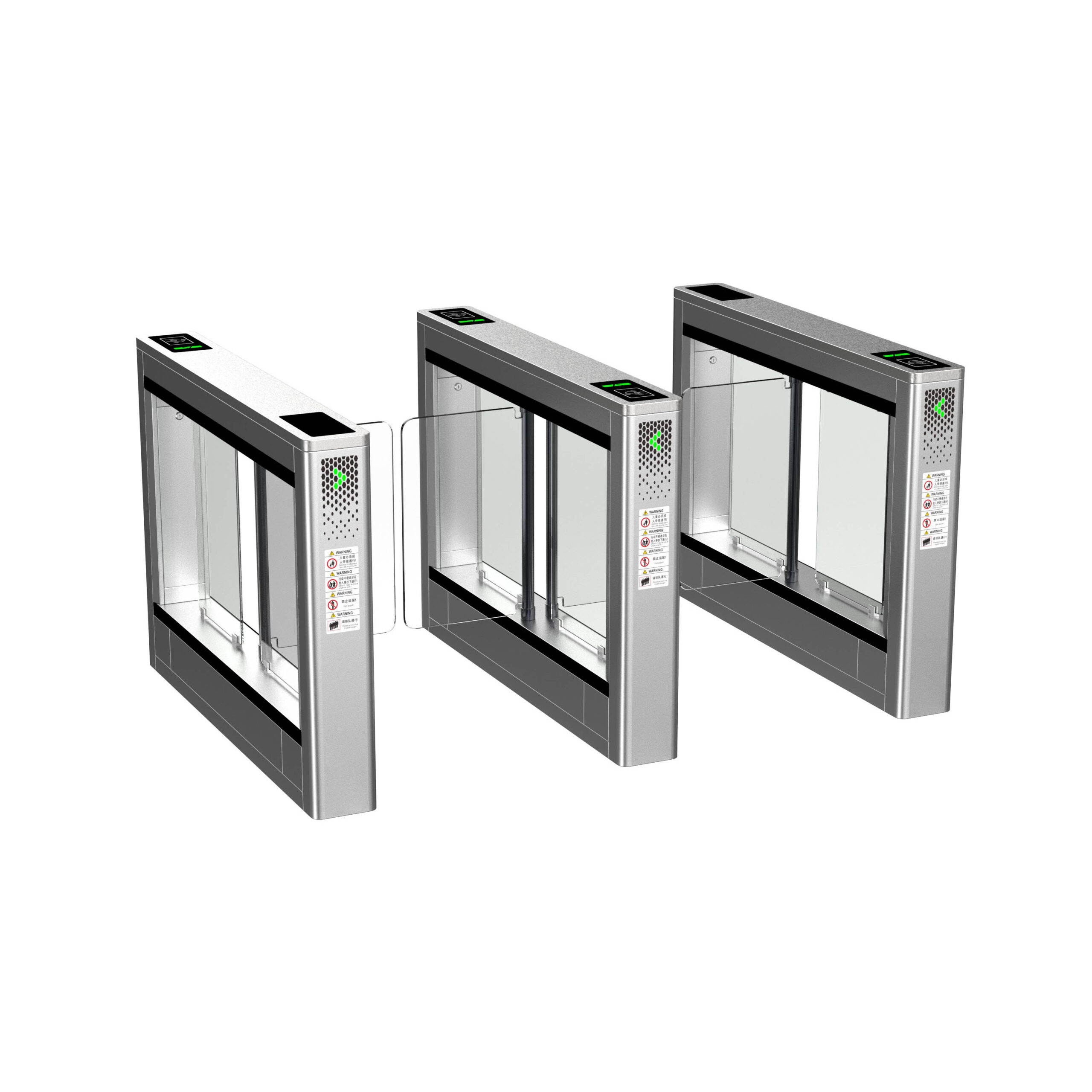

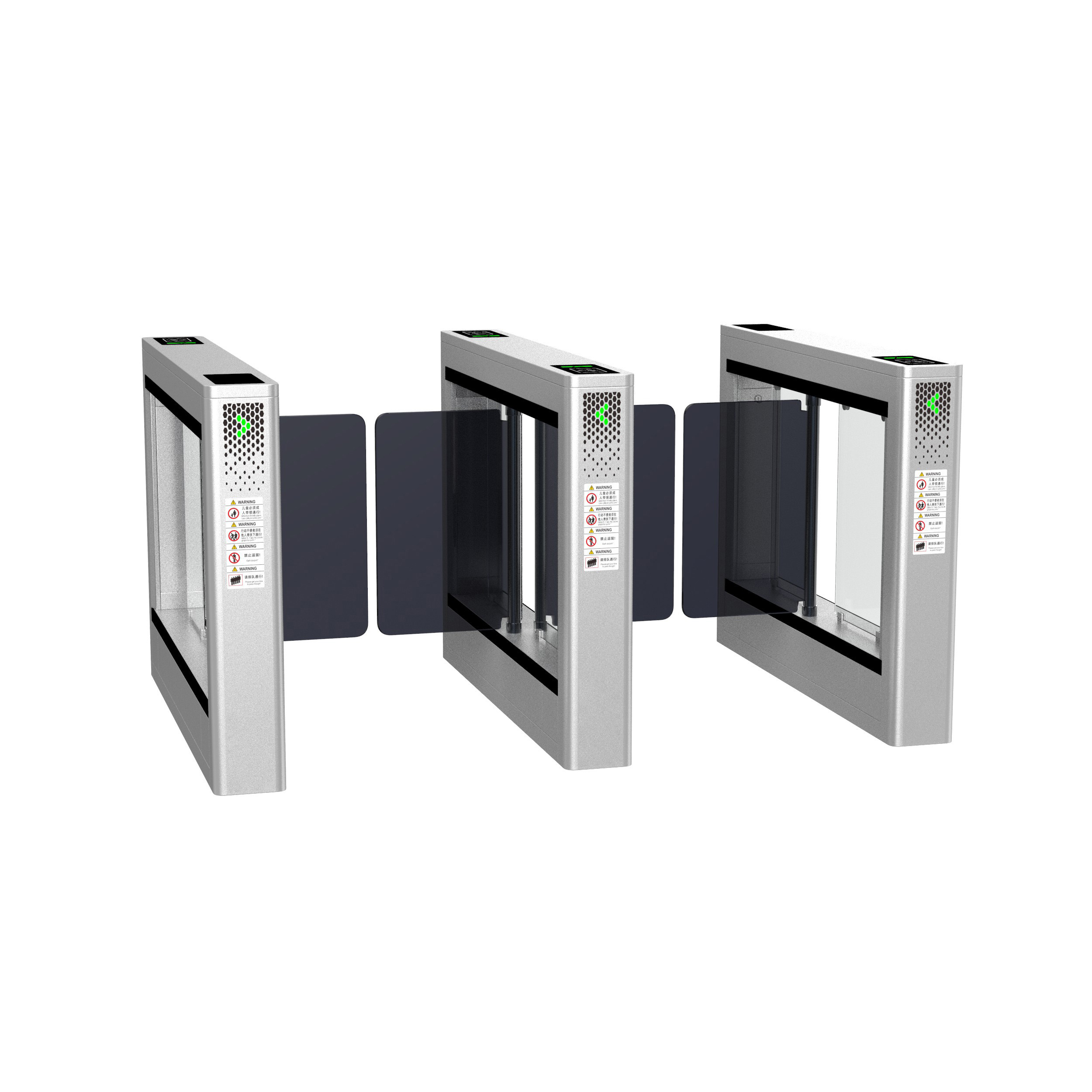

The Kapaisi KPS-TD-3305 Security Turnstile Gate is made from stamped national-standard 304 stainless steel and is equipped with a DC brushless motor. It features a sleek and modern design, offering strong durability and high resistance to external impact. The system supports various identification devices, including IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals, making it easy to integrate with access control systems. It is widely used for pedestrian access management in CBD business centers, modern office buildings, upscale residential communities, and kindergartens.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material Characteristics:The entire housing is made of premium 1.2mm national-standard 304 stainless steel, offering strong structural stability and durability.
• Structural Craftsmanship:Built with grooving techniques for minimal gap spacing and fine workmanship. Designed with a waterproof structure suitable for both indoor and outdoor use. The top cover opens inward, making it convenient to install facial recognition devices close to a wall.
• Motor Type:Equipped with a DC brushless motor mechanism, featuring power-on self-test, low failure rate, and long lifespan—supporting a minimum of 5 million fault-free passages.
• Sound and Light Alarm Indicators:Uses LED indicators to show the direction and status of passage. Alerts are triggered for authorized access and unauthorized intrusion.
• Anti-Tailgating Function:Equipped with 8 pairs of infrared sensors and tailgating tracking control technology. Only authorized personnel can pass, while unauthorized intrusion triggers a sound alarm. Operates reliably in various weather conditions, with no false alarms.
• Passage Memory Function:After multiple authentications, the gate remembers the number of people authorized and closes only after all have passed—enabling smooth, continuous passage.
• LCD Display with Chinese-English Menu:The main control board includes an LCD screen with Chinese-English menu settings for intuitive function parameter configuration.
• Auto Reset of Access Rights: If no passage occurs within the set time after authorization, the system automatically cancels access rights. Passage time is configurable.
• Custom Voice Broadcast:Supports various voice settings, allowing customized audio prompts upon card swiping in different environments.
• Multiple Passage Modes:Supports bidirectional access control or controlled entry with sensor-based exit. Gate opening speed can be adjusted based on foot traffic to optimize efficiency.
• People Counting Function:Supports separate counting of entries and exits for accurate statistics.
• Access Restriction Interface:Includes a “deny access” interface to ensure the gate remains closed during designated restricted time periods, even if an open signal is received.
• Easy Maintenance:The gate arm uses a clamp-on design, allowing for quick and convenient replacement and maintenance.
• Simple Master-Slave Design:Utilizes a 1-to-1 brushless control system. Only a 4-core cable is needed between master and slave units, simplifying wiring and later maintenance.
• Ventilation System:Features a specialized air duct design with dual long-life ball-bearing fans and insulation cotton to effectively prevent condensation caused by temperature differences inside and outside the cabinet.

Safety Features

• Anti-Pinch Function:Infrared anti-pinch detection triggers an audible alarm when obstacles are detected during gate closing.
• Rebound-on-Obstacle Function:During reset, if an obstacle is encountered, the motor stops automatically to prevent injury. If the infrared sensor is not triggered and an object blocks the gate, it reopens automatically.
• Power Failure Passage:Equipped with a supercapacitor that automatically opens the gate wings during power outages, allowing free passage and preventing panic.
• Multi-Level Collision Buffering:In cases of unauthorized access or forced entry without a valid signal, the gate arm deflects slightly, triggers reverse force, and sounds an alarm—reducing mechanical damage and extending motor lifespan.
• Fire Alarm Linkage: When a fire signal is received, the gate will automatically open for emergency evacuation.
• Built-in Leakage Protector: Enhances personal safety and makes on-site wiring more convenient. All electrical modules in the device operate at voltages below 24V.

Optional Features

• Wireless Receiver (Optional): Can be paired with a remote control to enable remote gate opening, normally open, and normally closed modes. One receiver can connect to up to 80 remote controls, and one remote control can be paired with multiple receivers to achieve one-to-many functionality.
• Access Control Integration (Optional):Supports integration with facial recognition systems, IC/ID card readers, and QR code scanners.
