Kapaisi Arc-Shaped Security Optical Turnstiles KPS-TD-3302

Kapaisi Arc-Shaped Security Optical Turnstiles KPS-TD-3302

The KPS-TD-3302 Arc-Shaped Security Optical Turnstiles is made from stamped, national-standard 304 stainless steel and equipped with a DC brushless motor. It features a sleek and modern design, offering durability and resistance to external impacts. The gate supports various identification devices, including IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals, ensuring seamless integration with access control systems. It is widely used in pedestrian access control areas such as CBD business centers, modern office buildings, upscale residential communities, and kindergartens.

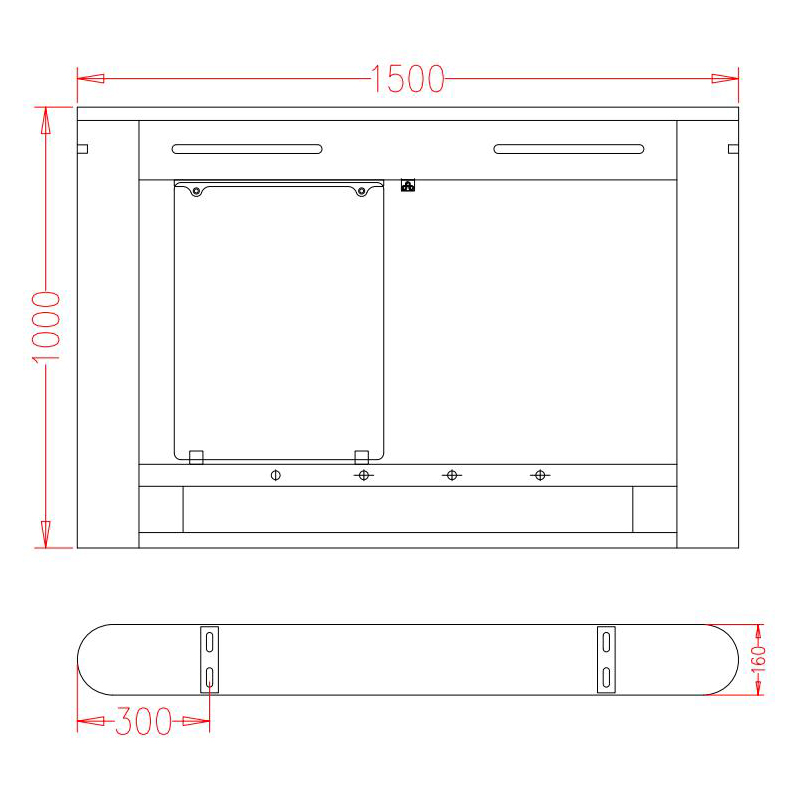

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material Characteristics:The housing is made of national standard 1.0mm stainless steel, and the top cover uses 1.2mm premium 304 stainless steel, ensuring a stable and robust structure.
• Motor Type:Equipped with a DC brushless motor that performs self-checks upon startup, featuring low failure rates and long service life. Supports at least 5 million normal operations.
• Custom Voice Prompts: Offers multiple voice options that can be customized to broadcast specific messages after card authentication in different environments.
• Multiple Passage Modes:Supports bidirectional controlled access or controlled entry with sensor-based exit. The swing speed can also be adjusted based on pedestrian traffic to improve efficiency.
• People Counting Function:Supports separate counting for entry and exit directions.
• Easy Maintenance: The gate wings use a clamp-on design, making replacement and maintenance more convenient.
• Simple Master-Slave Design: Only four wires are needed to connect between the master and slave units.
• Ventilation System: Features a specially designed air duct system with dual ball-bearing long-life fans and thermal insulation cotton to effectively prevent condensation caused by external cold and internal heat.

Safety Function：

• Audio-Visual Alarm Function:Equipped with LED indicators to show the passage direction and status. The system provides sound and light alerts for authorized access and unauthorized intrusion.
• Anti-Pinch Function:Features infrared anti-pinch protection. If an obstruction is detected during gate closing, an audible alarm is triggered.
• Anti-Collision Rebound Function:When the gate wings are resetting and encounter an obstacle, the motor automatically stops to prevent injury. If the wings close without infrared triggering but meet resistance, they will rebound to the open position.
• Anti-Tailgating Function:Uses 6 pairs of infrared sensors with anti-tailgating tracking control technology. Only authorized personnel are allowed through. Unauthorized entry triggers an alarm. The system operates reliably without false alarms, even in challenging environments like sunny or rainy conditions.
• Auto-Reset Function:If no passage occurs within a preset time after the gate opens, the system automatically cancels the current access authorization. The passage time is configurable.
• Power Failure Passage:Equipped with a built-in supercapacitor. In the event of a power outage, the gate wings automatically open to allow free passage and prevent panic.
• Multi-Level Anti-Collision Buffering: If an unauthorized attempt or forced entry occurs without a valid signal, the gate rod buffers at a certain angle, triggers counterforce and an alarm. This not only enhances safety but also significantly reduces mechanical wear, prolonging the lifespan of the movement mechanism.
• Passage Memory Function:When multiple users are verified in quick succession, the system memorizes the number of people and closes the gate only after all have passed, ensuring continuous and efficient access.
• Fire Alarm Integration:When a fire signal is triggered, the gate opens automatically to allow for emergency evacuation.
• Leakage Protection:Comes with built-in leakage protection to enhance personal safety. Simplifies wiring during installation. All electrical modules operate at voltages not exceeding 24V.

Optional Features

• Wireless Receiver (Optional): Can be paired with a remote control to enable remote gate opening, normally open, and normally closed modes. One receiver can connect to up to 80 remote controls, and one remote control can be paired with multiple receivers to achieve one-to-many functionality.
• Access Control Integration (Optional): Supports integration with facial recognition systems, IC/ID card readers, and QR code scanners.
