Heavy Duty Barrier Fence Gate for Parking Lot KPS-KJ-9001
- Simple design, Durable and long-lasting
- Operates even during power outages
- Multiple control methods available
- Easy to install
Product Parameter

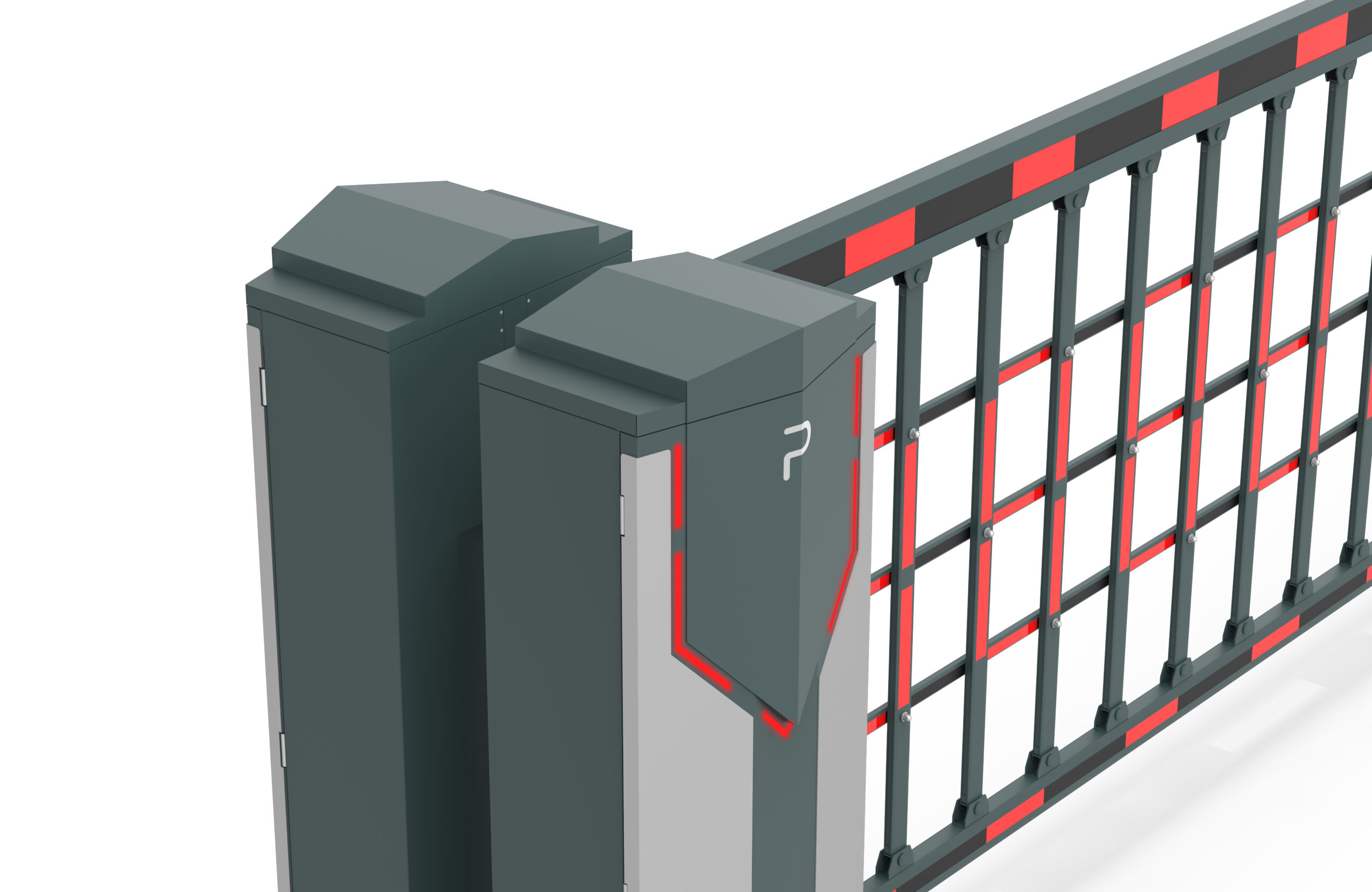

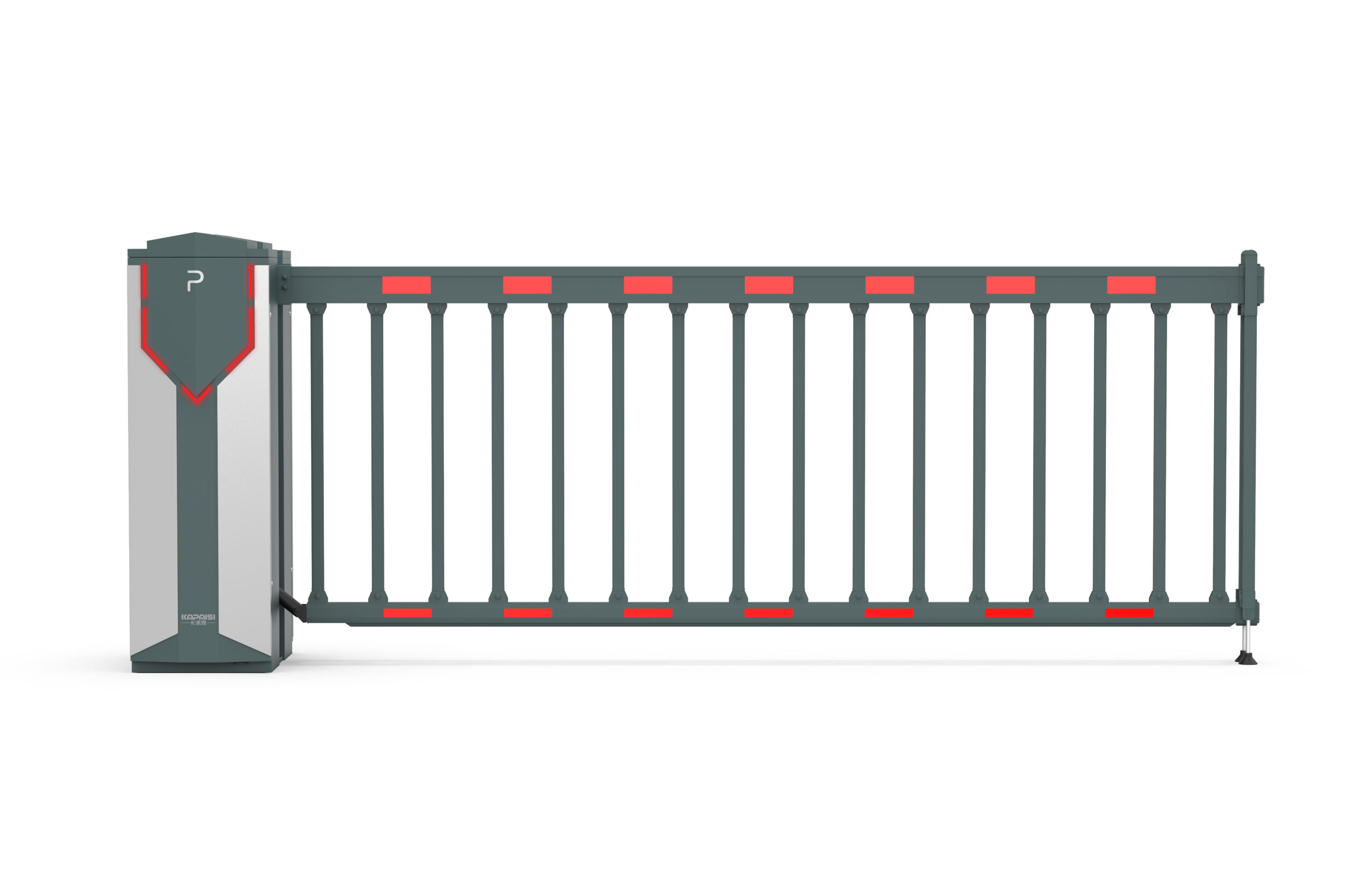

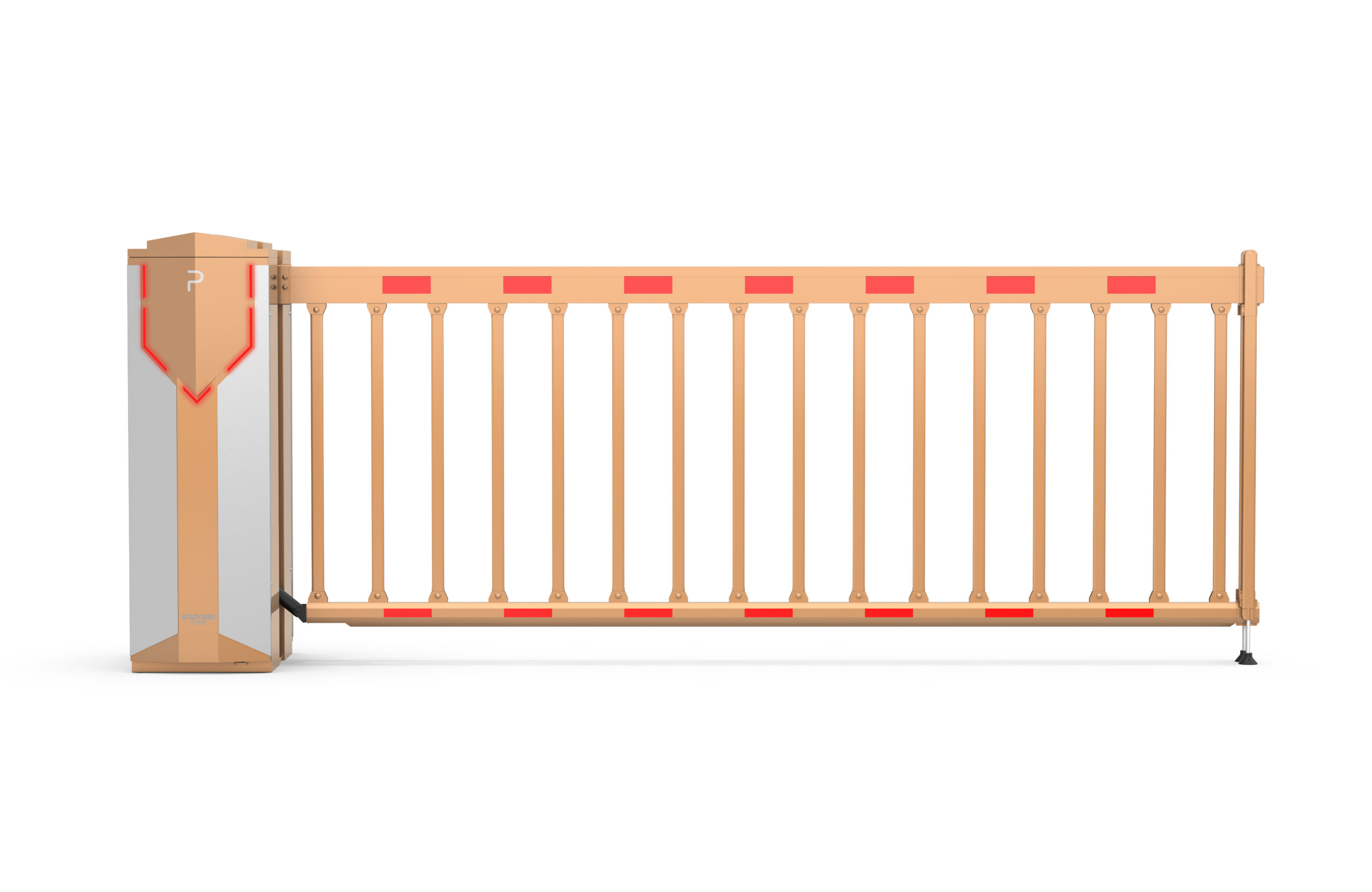

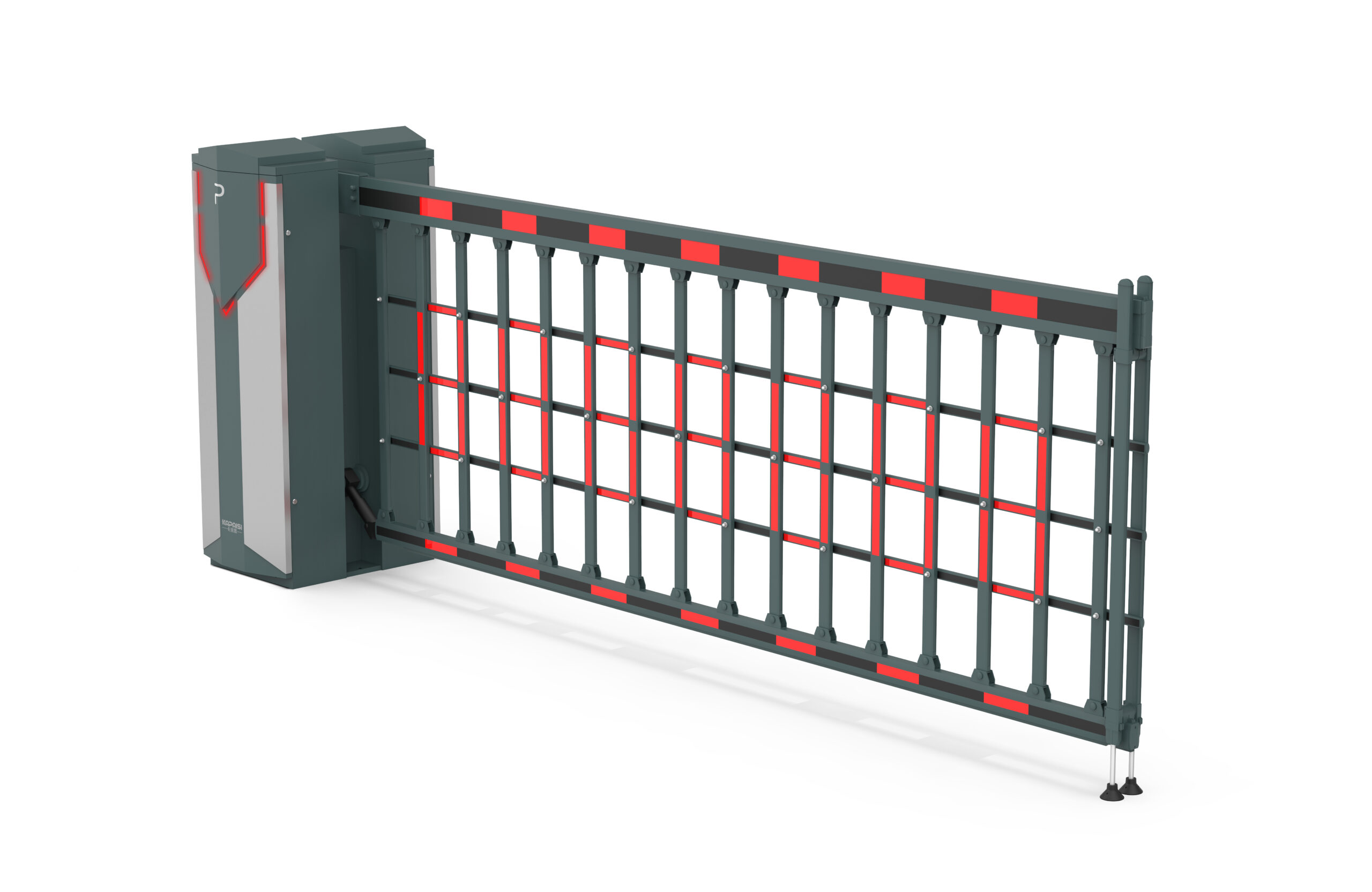

Heavy Duty Barrier Fence Gate KPS-KJ-9001
The heavy duty barrier fence gate KPS-KJ-9001 features a sleek and durable design with a robust integrated core and a high-power brushless DC motor for smooth and reliable operation. Its triple-gear system, precision-cast swing arm, and servo control ensure efficient performance even in demanding environments. It supports various control methods such as remote control, manual switches, and vehicle detectors. With anti-crush functions, power backup, and solar power compatibility, it is ideal for secure and intelligent vehicle access management in parking facilities.

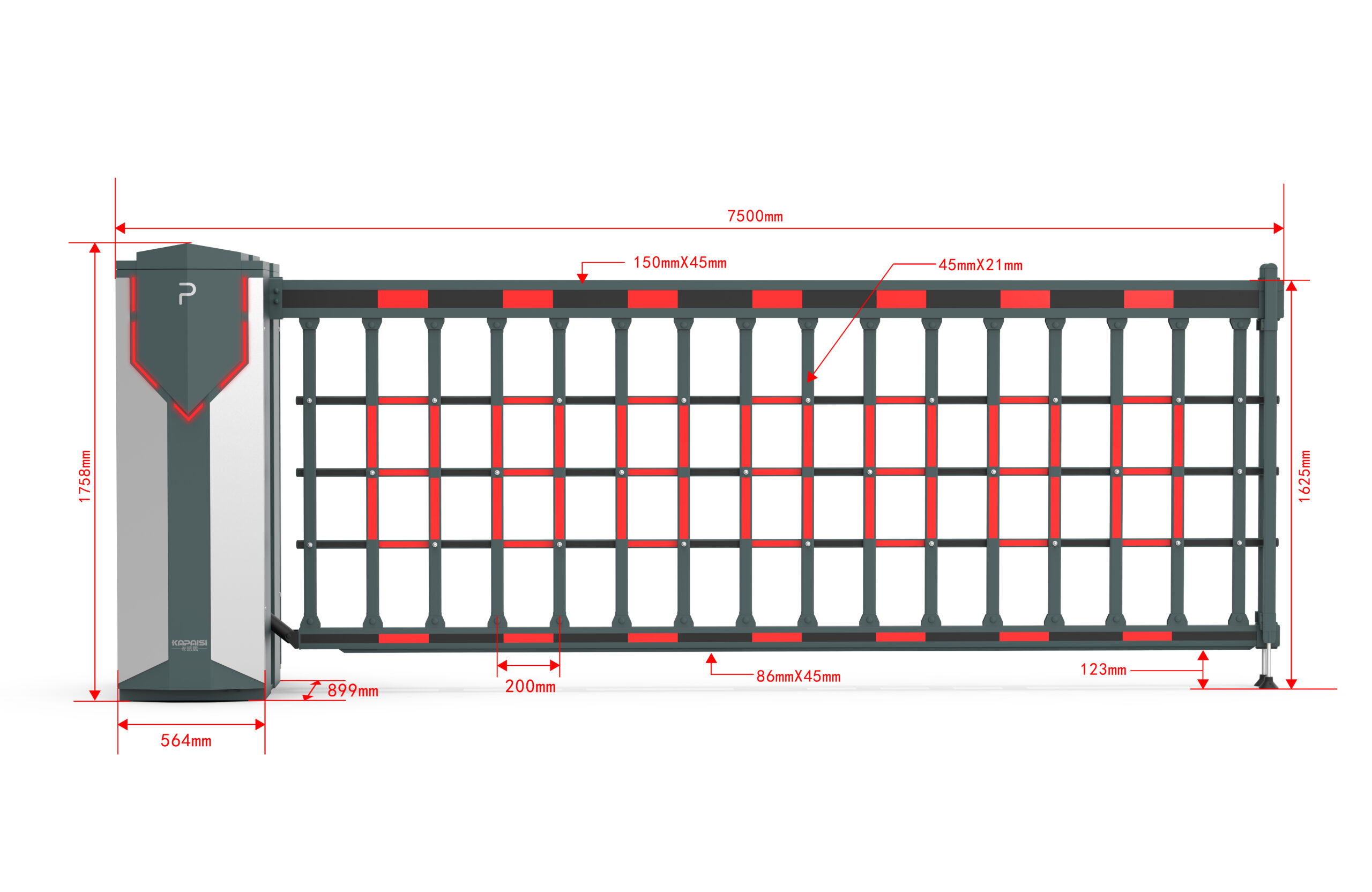

Product Dimensions
| Item | Specification |
| Main Unit Dimensions | 1758 × 900 × 564 mm |
| Packaging Dimensions | 1800 × 940 × 610 mm |
| Barrier Arm Size | Large Arm: 150 × 45 × 1.7 mm Middle Arm: 86 × 45 × 1.7 mm Small Arm: 45 × 21 × 1.0 mm |
Technical Specifications
| Parameter | Specification |
| Power Supply | AC 220V ±10%, 50/60Hz; DC 24V, 15A |
| Rated Power | 280W |
| Leakage Current | ≤2mA |
| Insulation Resistance | ≥1MΩ (under normal conditions for motor power circuit) |
| Grounding Resistance | ≤0.1Ω (for AC operation) |
| Operating Temperature | -35℃ to +75℃ |
| Operating Humidity | ≤90% RH |
| Remote Control Frequency | 433MHz, learning code; effective distance ≤30m Supports up to 25 groups of codes, each with 2 remotes |
| Arm Opening/Closing Time | 3–6 seconds (≤6 seconds, adjustable according to site requirements) |
| Cabinet Material | Dual-arm housing, made of Q235 cold-rolled steel, thickness T = 1.8 mm, powder-coated surface |
| Protection Grade | IP44 |
| Service Life | ≥1,000,000 open/close cycles |
Core Mechanism Features
- The mechanism uses a brushless DC motor with a 4-stage gear system and dual crank-arm linkage balanced structure. It is clutch-free and includes a manual handwheel.
- The brushless DC motor uses pure copper wire for the rotor.
- The main shaft swing arm and driving crank arm are made of cast steel; the linkage rods are cast steel with deep groove ball bearings.
- Dual sets of balancing springs are installed on both sides of the core to ensure smooth gate operation.
- The main shaft has a diameter of ∮40mm, made from precision-machined 45# steel with a galvanized surface.
- Balance spring specs: (∮5/∮6.5/Φ7.5) × ∮40 × 420 mm. Multiple springs are selected and matched to different arm lengths and corresponding mounting holes.
Basic Product Functions
- Gate opening/closing angle: 90° ±2°.
- Equipped with standard dry contact interfaces for open, close, and stop signals.
- Supports integration with vehicle detectors, infrared sensors, pressure wave sensors, and barrier radar to prevent vehicle collisions.
- Controller timeout protection: If the gate operation exceeds the expected time due to a fault, the gate will automatically stop.
- Supports control via wireless remote or wired control buttons for open, close, and stop operations.
- Uses a brushless DC motor with a pure copper rotor for stable gate movement.
- Equipped with counting and digital check functions for gate operation tracking.
