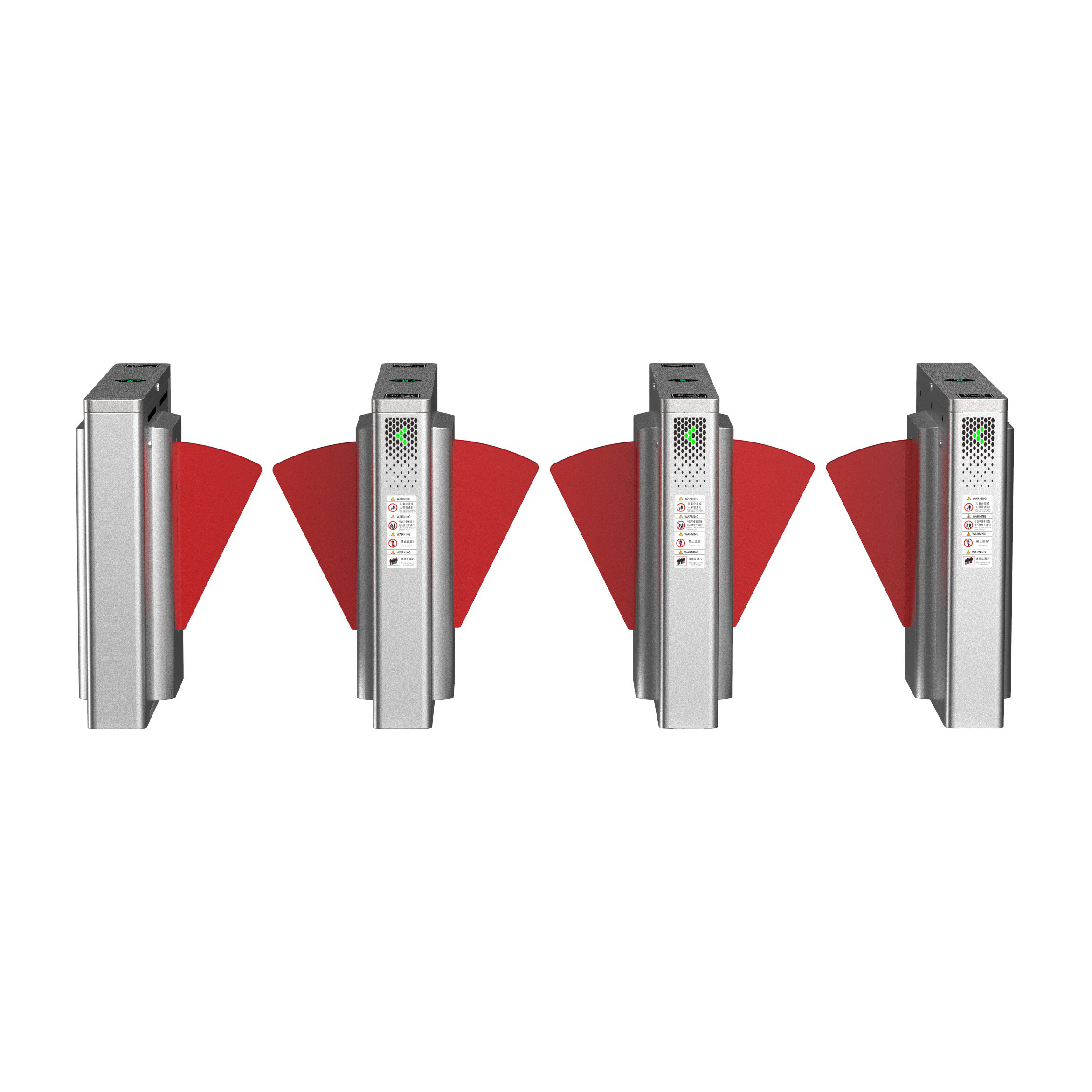

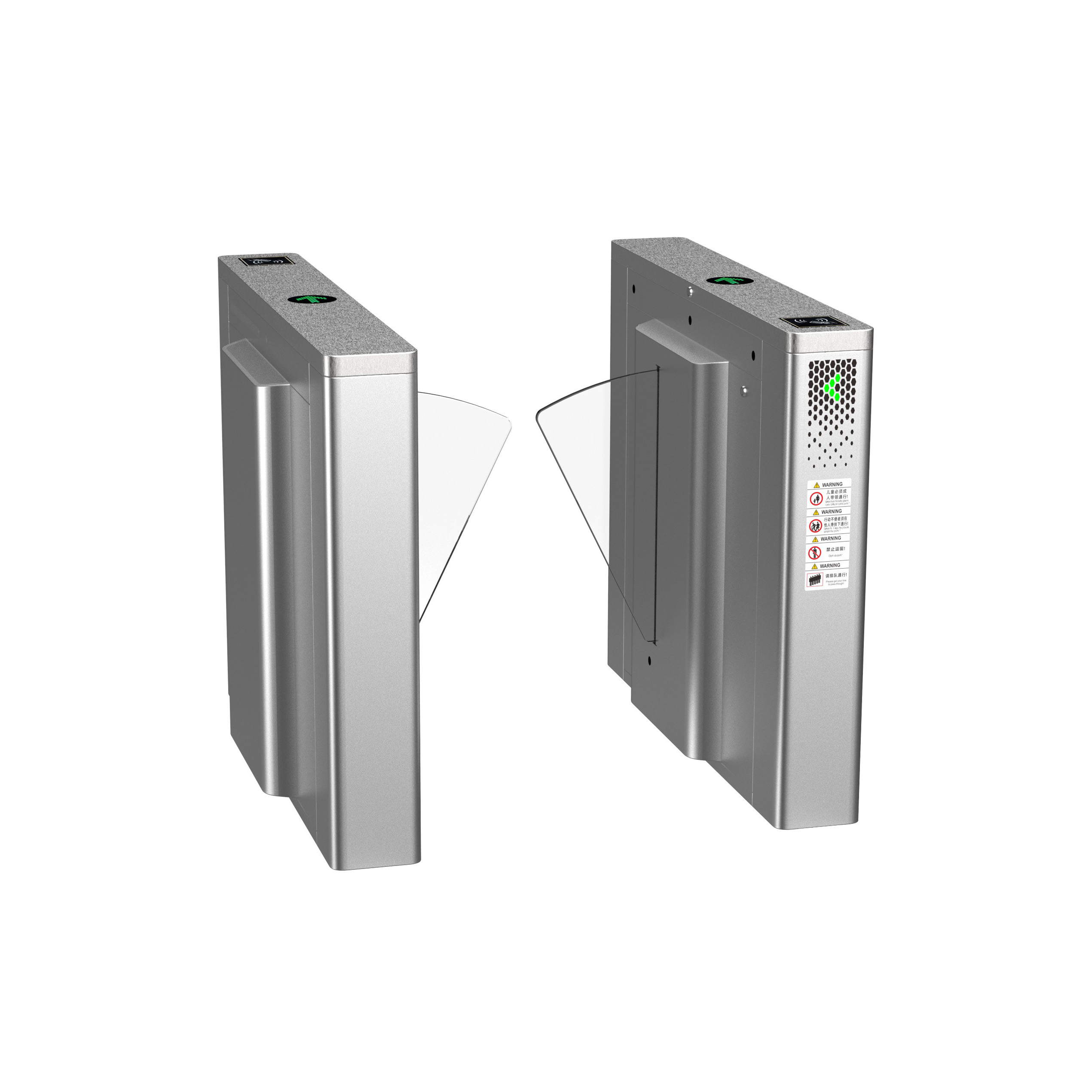

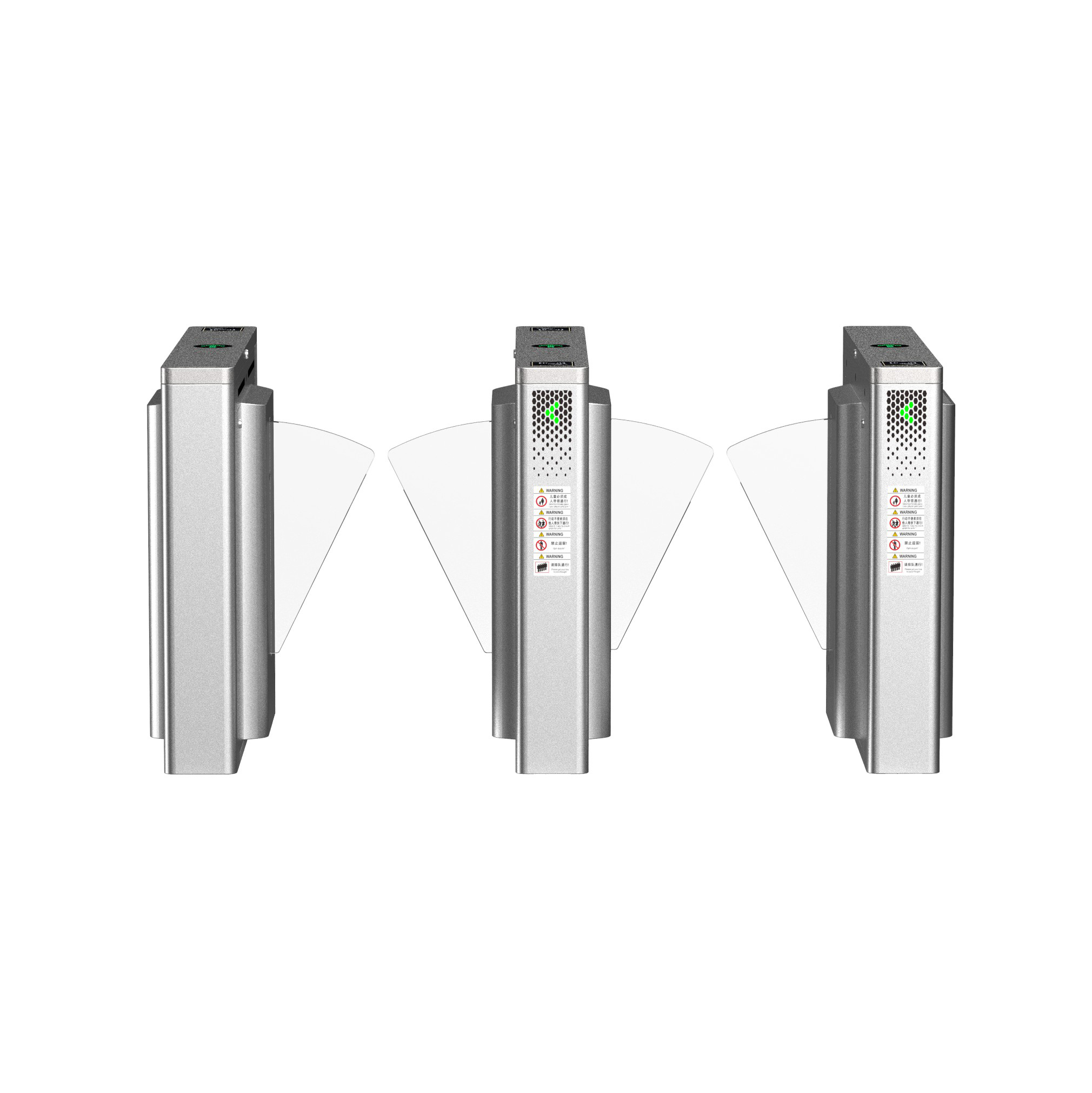

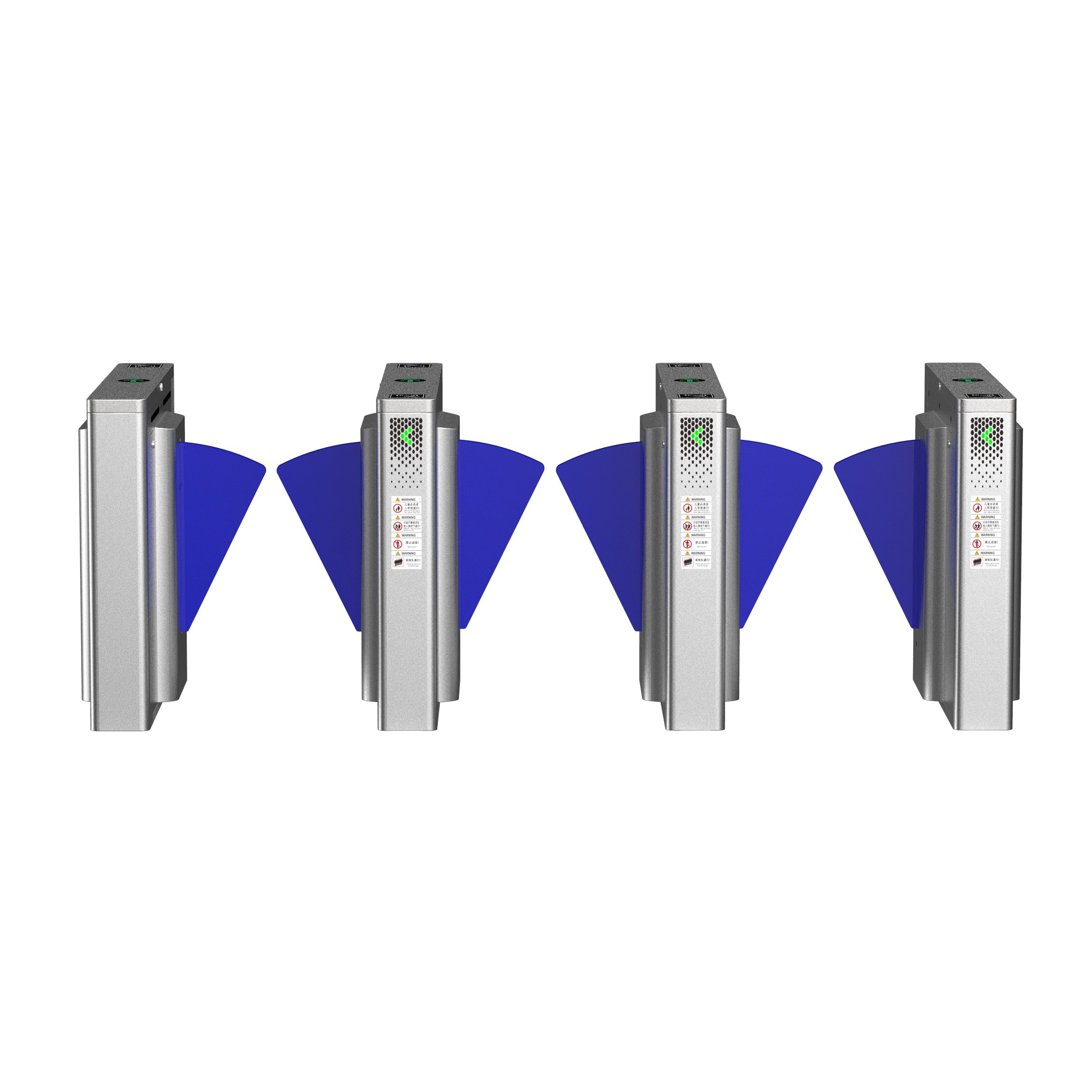

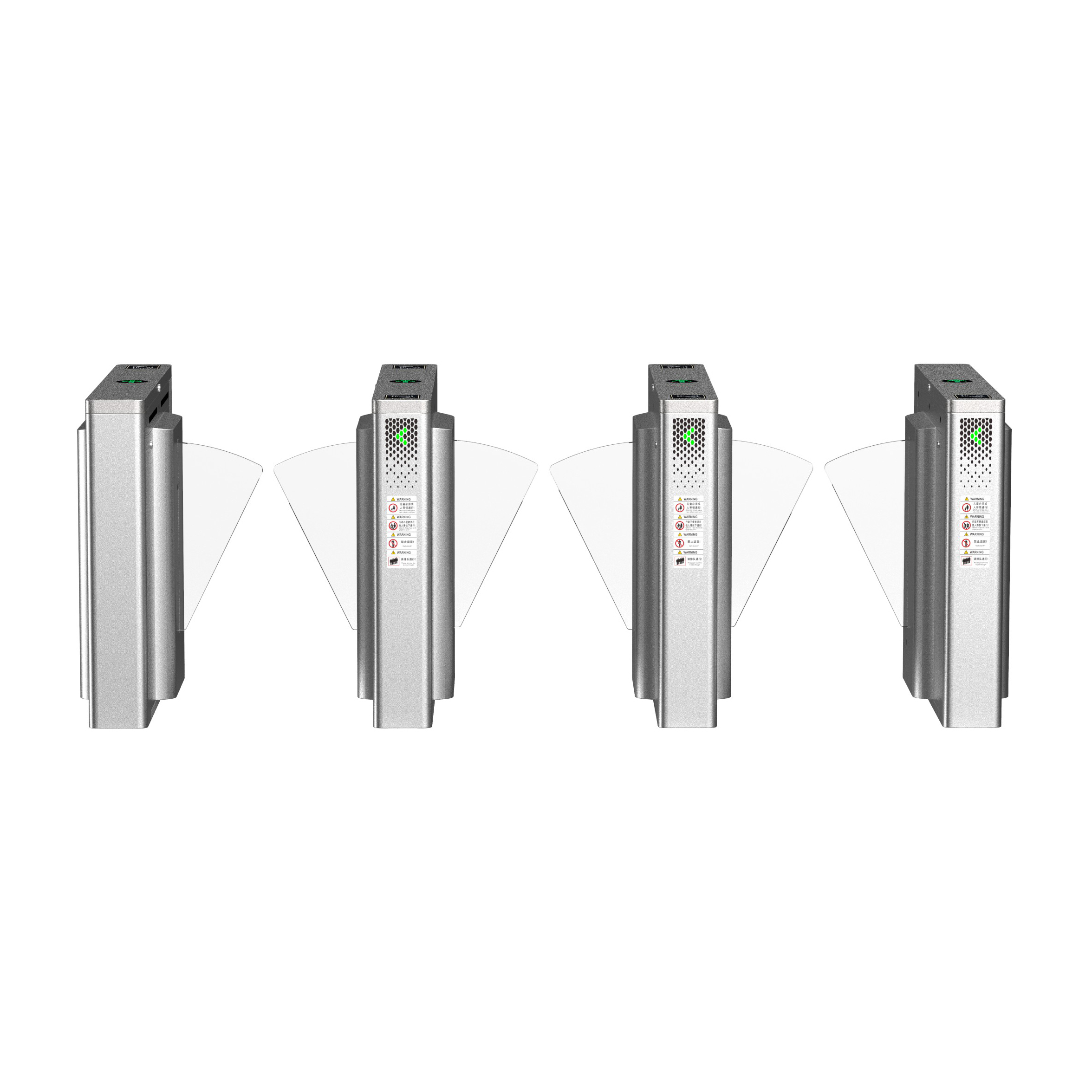

Kapaisi KPS-TD-3203 Flat Barrier Subway Turnstile

Kapaisi KPS-TD-3203 Flat Barrier Subway Turnstile

The Kapaisi KPS-TD-3203 Flat Barrier Subway Turnstile is made from high-quality national standard 304 stainless steel through precision stamping. It features a brushless DC motor, offering a sleek and modern design that is both durable and resistant to external damage. The device supports a wide range of access control terminals, including IC/ID card readers, ID card scanners, QR code readers, and facial recognition systems, ensuring easy integration with access control systems. It is widely used for pedestrian access management in areas such as CBD business centers, modern office buildings, upscale residential communities, and kindergartens.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material Characteristics: The top cover is made of 1.2mm thick national standard 304 stainless steel, and the housing is made of 1.0mm thick national standard 304 stainless steel, ensuring stable and durable structure.
• Motor Type: Equipped with a brushless DC motor, the device performs self-check upon startup, has a low failure rate, and offers a long service life.
• Audio-Visual Alarm Function: Equipped with LED indicators to show passage direction and status; provides visual and audible alerts for authorized access and unauthorized intrusions.
• Passage Memory Function: The system can remember multiple authentications and keeps track of the number of people passing. It will close only after all users have passed, allowing fast and continuous access.
• Delay Reset Function: If no one passes within the set time after the gate is opened, the system will automatically cancel the current access permission. The passage duration is configurable.
• Custom Voice Settings: Supports multiple voice prompts for different locations, allowing customized audio playback after card verification.
• Multiple Passage Modes: Supports bi-directional controlled access, or controlled entry with sensor-based exit. Gate opening/closing speed can be adjusted based on foot traffic to improve efficiency.
• People Counting Function: Supports directional counting of entries and exits.
• Simplified Master-Slave Design: Only four wires are needed between the master and slave units, making on-site installation and debugging easier.

Safety Features

• Anti-Pinch Function: Infrared sensors detect obstacles during gate closure and trigger an audible alarm to prevent pinching.
• Obstacle Rebound Function: If an obstacle is detected while the gate is closing, the motor stops and the gate reopens to avoid injury. If the gate closes without triggering the infrared sensor and encounters an object, it will rebound.
• Anti-Tailgating Function: Uses 4pairs of infrared sensors and tailgating prevention technology to ensure only authorized personnel pass. Unauthorized entries trigger an alarm. Operates reliably in various environments such as sunny or rainy conditions with minimal false alarms.
• Power Failure Access: In the event of a power outage, the gates automatically open to allow free passage, meeting fire safety regulations.
• Multi-Level Anti-Collision Buffering: If unauthorized passage or forceful entry occurs without a valid open signal, the gate buffers at a certain angle and triggers reverse force and an alarm. This design minimizes mechanical damage and prolongs the core mechanism’s lifespan while ensuring user safety.
• Fire Alarm Linkage: When triggered by a fire signal, the gate automatically opens for emergency evacuation.
• Built-in Leakage Protection: Enhances personal safety and simplifies wiring during installation. All electrical modules operate below 24V for added safety.

Optional Features

• Optional Wireless Receiver: When paired with a remote control, enables peak-hour always-open mode, single entry gate opening, and single exit gate opening.
• Supports Integration With: Various IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals.
