Driveway Barrier Gate for Parking Lot
- Durable for Outdoor Use
- Smooth and Reliable Operation
- Intelligent and Versatile Control
- Easy Installation and Management
Product Parameter

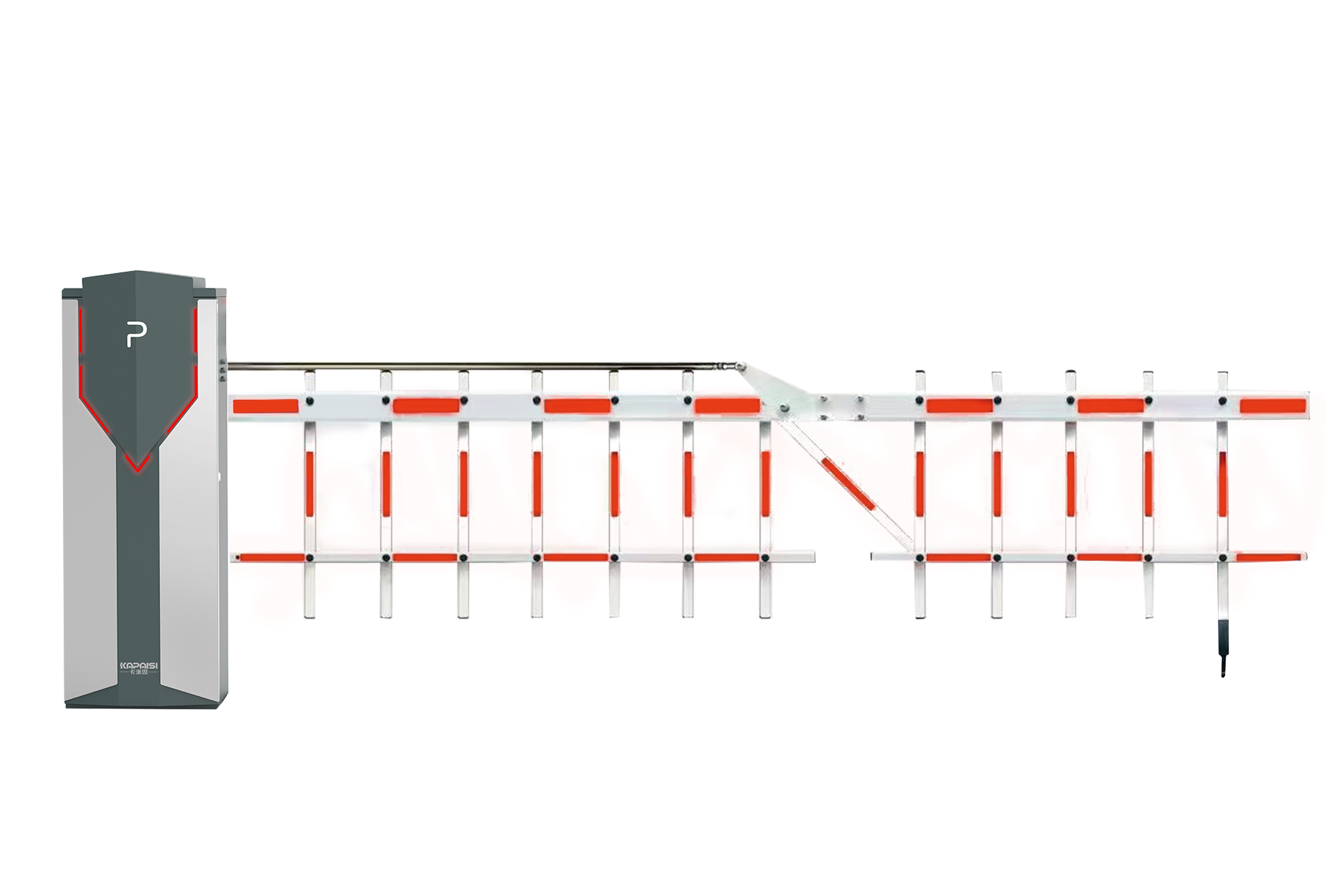

Kapaisi KPS-DZ-8002 Driveway Barrier Gate for Parking Lot
The KPS-DZ-8002 is a sleek and durable gate barrier with a robust housing, featuring advanced surface treatment suitable for outdoor environments. It utilizes a three-stage gear and crank-link structure with a high-power DC brushless motor for smooth and reliable operation. The integrated core design simplifies installation and maintenance, and it supports 24V uninterruptible power and solar power for seamless operation even during outages. Equipped with bright LED strips and multiple control options (including remote and external control boxes), it integrates with vehicle detectors for auto-lowering, anti-crash functions, and is widely used for vehicle management at parking lots, residential areas, and other entry points.

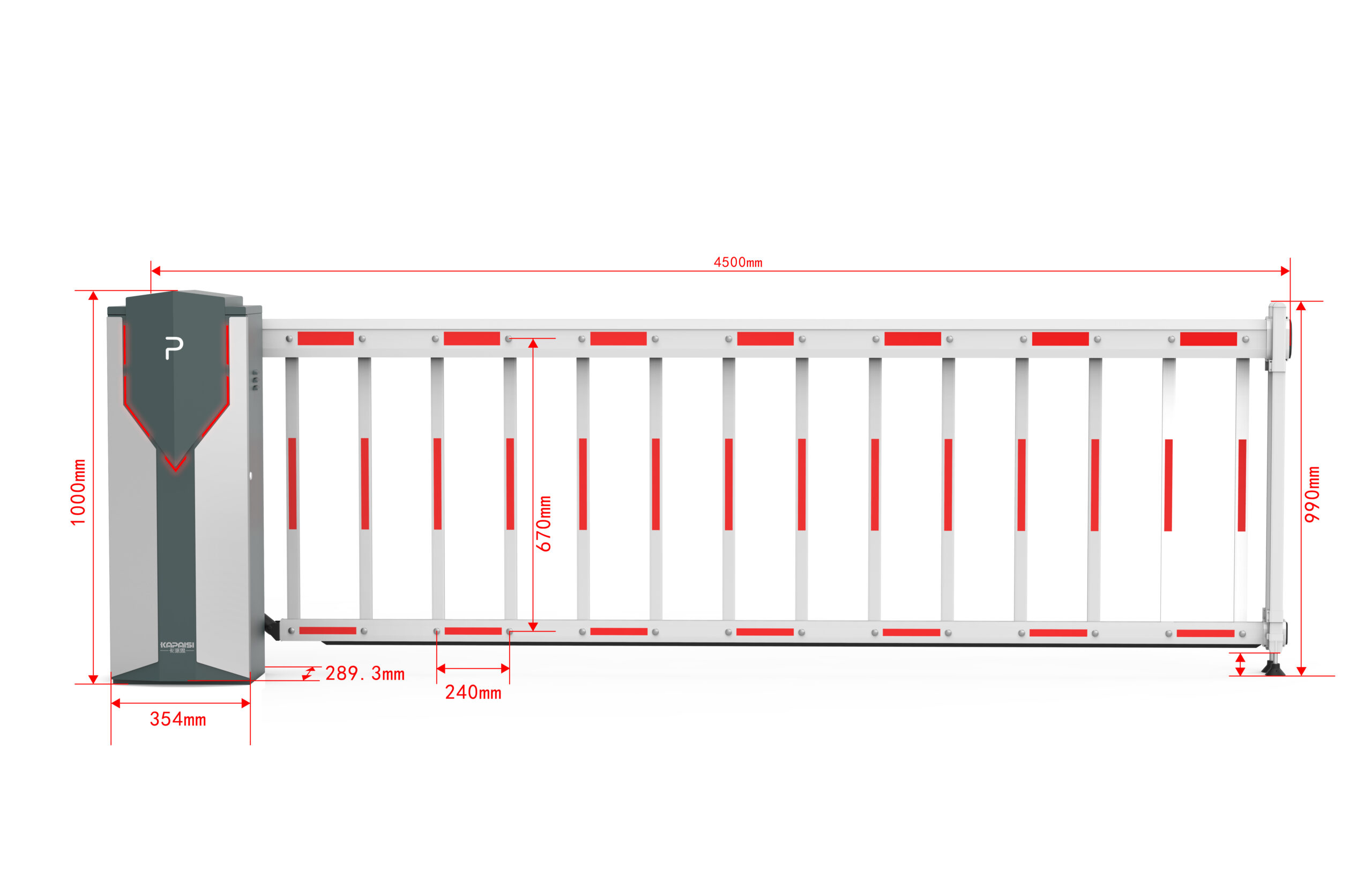

Product Dimensions
| Item | Specification |
| Main Unit Dimensions | 1000 × 354 × 289 mm |
| Packaging Dimensions | 1100 × 400 × 330 mm |
| Barrier Arm Size | Large Arm: 120 × 45 × 1.7 mm Middle Arm: 80 × 45 × 1.7 mm Small Arm: 45 × 21 × 1.0 mm |
Technical Specifications
| Parameter | Specification |
| Power Supply | AC 220V ±10%, 50/60Hz; DC 24V, 10A |
| Rated Power | 200W |
| Leakage Current | ≤2mA |
| Insulation Resistance | ≥1MΩ (under normal conditions for motor power circuit) |
| Grounding Resistance | ≤0.1Ω (for AC operation) |
| Operating Temperature | -25℃ to +75℃ |
| Operating Humidity | ≤90% RH |
| Remote Control Frequency | 430MHz, learning code; effective distance ≤30m Supports up to 25 groups of codes, each with 2 remotes |
| Arm Opening/Closing Time | 3–6 seconds (≤6 seconds, adjustable according to site requirements) |
| Cabinet Material | Dual-arm housing, made of Q235 cold-rolled steel, thickness T = 1.5 mm, powder-coated surface |
| Protection Grade | IP44 |
| Service Life | ≥1,000,000 open/close cycles |
Core Mechanism Features
- Equipped with a brushless DC motor + three-stage gear reducer + dual crank-arm linkage with dual-spring balance structure.
- Clutchless design with a manual handwheel for emergency operation.
- Pure copper windings in the rotor ensure high efficiency and durability.
- Main swing arm and driving crank arm are made of cast steel; linkage components use cast steel with deep-groove ball bearings.
- Dual balance springs mounted on both sides of the mechanism ensure smooth and stable movement.
- Main shaft diameter: ∮40mm, made of precision-machined 45# steel with galvanized surface treatment.
- Balance springs: (∮5/∮6.5) × ∮40 × 460, multiple springs selected according to barrier arm length and matching mounting holes.
Basic Product Functions
- Gate opening/closing angle: 90° ±2°.
- Equipped with standard dry contact interfaces for open, close, and stop signals.
- Supports integration with vehicle detectors, infrared sensors, pressure wave sensors, and barrier radar to prevent vehicle collisions.
- Controller timeout protection: If the gate operation exceeds the expected time due to a fault, the gate will automatically stop.
- Supports control via wireless remote or wired control buttons for open, close, and stop operations.
- Uses a brushless DC motor with a pure copper rotor for stable gate movement.
- Equipped with counting and digital check functions for gate operation tracking.
