Kapaisi KPS-DZ-8005 Driveway Barrier Fence Gate
- High visibility design
- Smooth and Reliable Operation
- Durable construction
- Easy installation
Product Parameter
Kapaisi KPS-DZ-8005 driveway Barrier Fence Gate

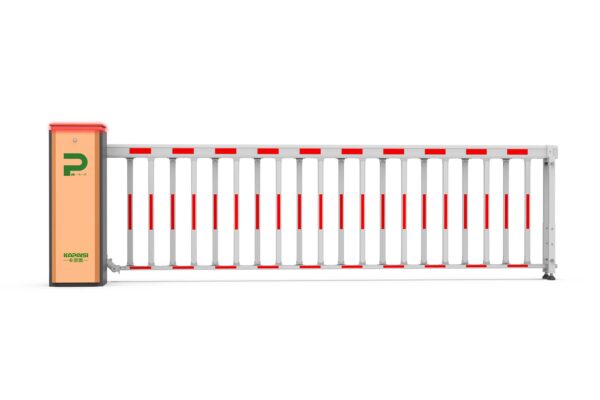

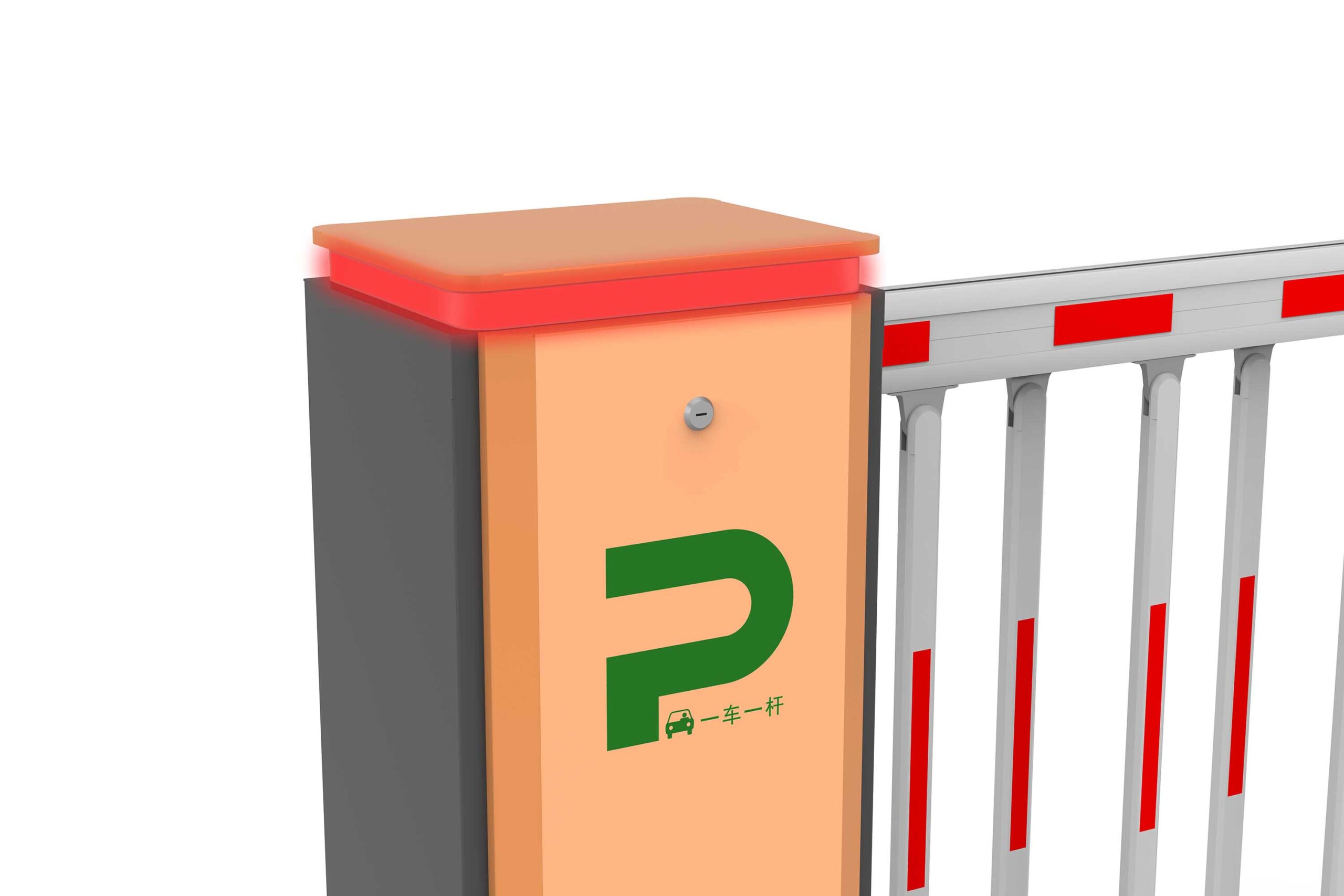

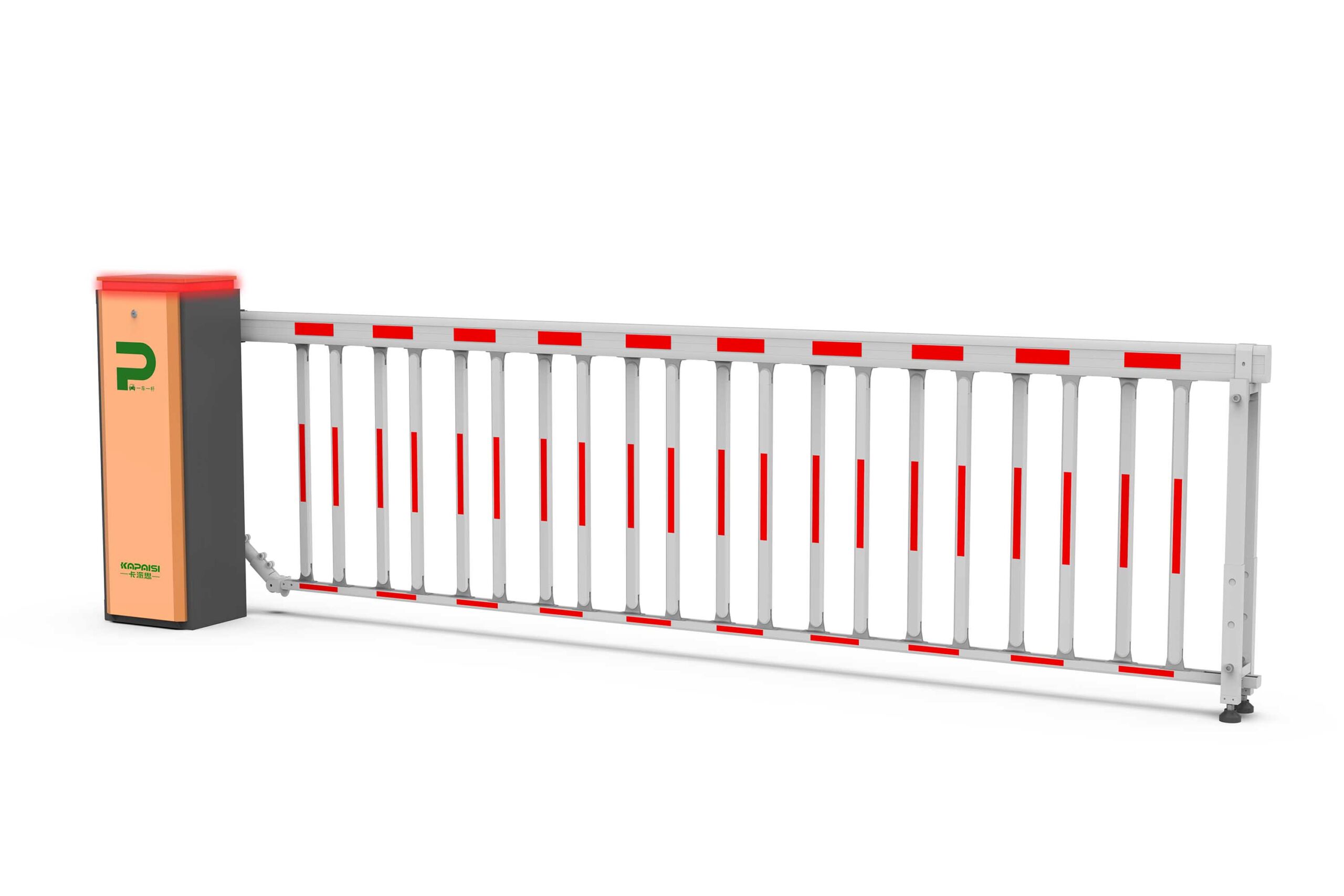

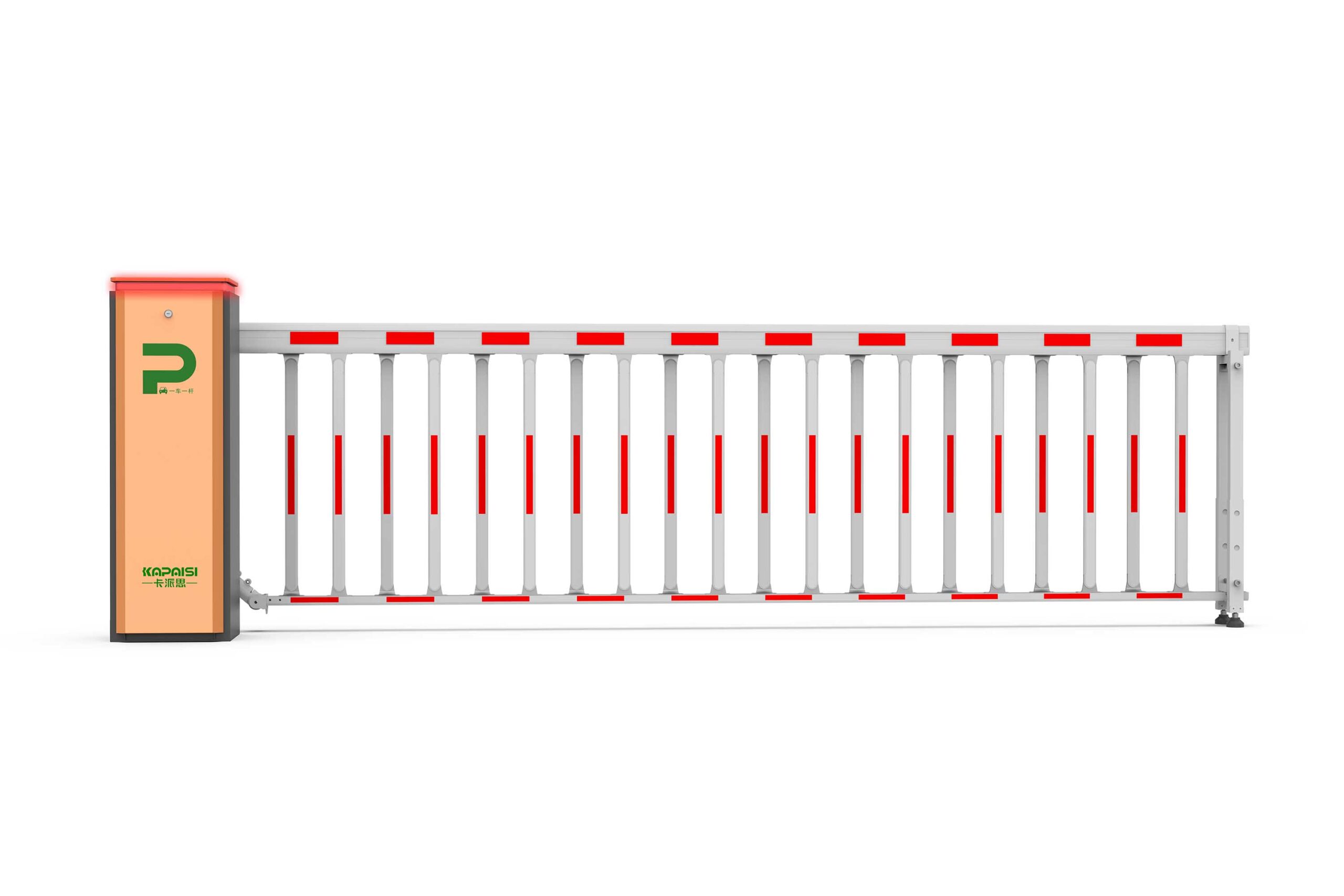

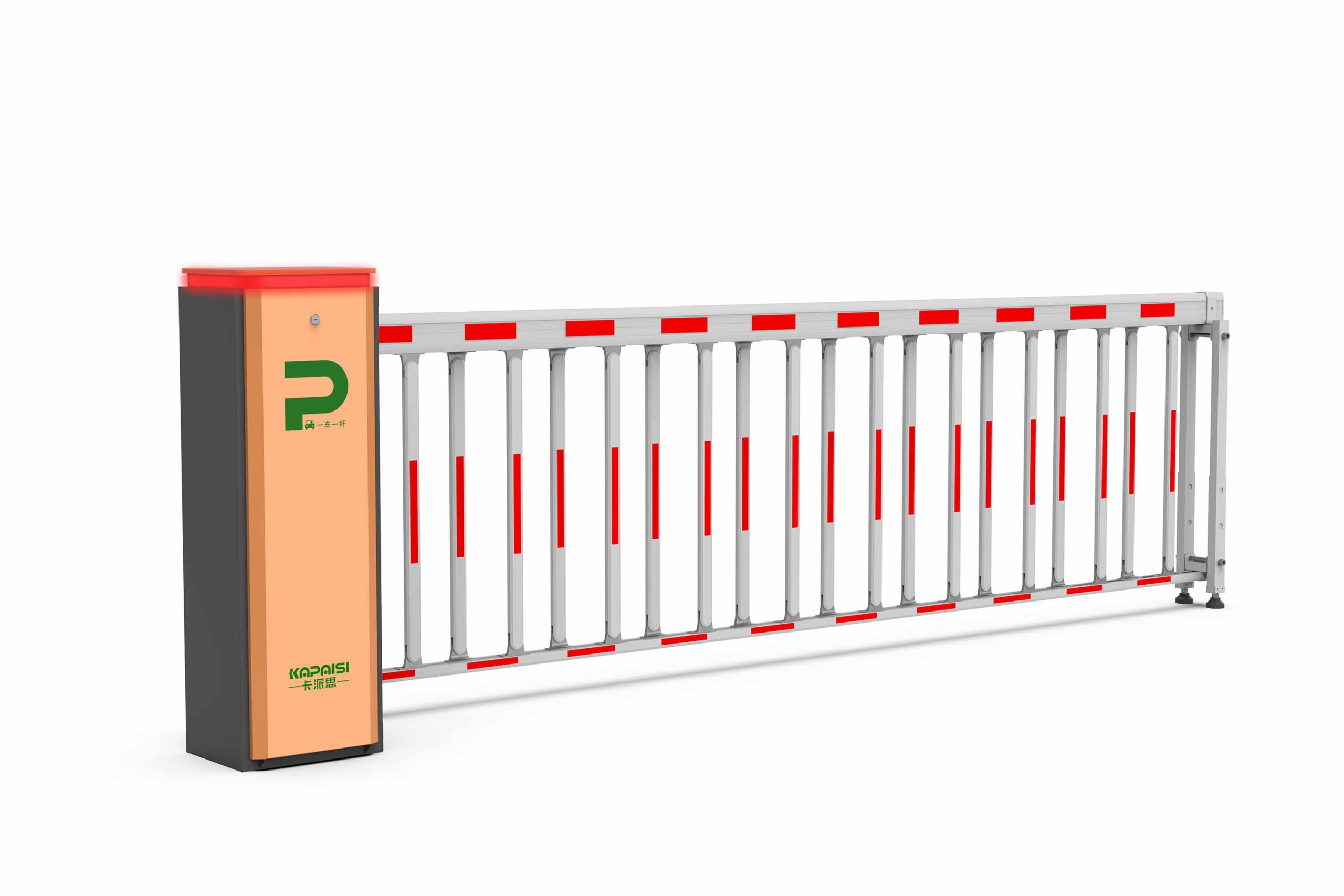

The Kapaisi KPS-DZ-8005 Driveway Barrier Fence Gate is a robust and efficient solution for vehicle access control, ideal for parking lots, residential communities, and industrial areas. Featuring a sleek design with red and white striped bars, this gate ensures high visibility and safety. The gate is supported by multiple vertical pillars and equipped with an advanced control box that includes car plate recognition technology, enhancing automated entry management. Constructed with durable materials, it offers reliable performance and easy installation, making it a versatile choice for secure and convenient access control.
Product Dimensions
| Item | Specification |
| Main Unit Dimensions | 1380 × 668.6 × 450 mm |
| Barrier Arm Size | 6500*1295*45mm |
Technical Specifications
| Parameter | Specification |
| Power Supply | AC 220V ±10%, 50/60Hz; DC 24V, 10A |
| Rated Power | 200W |
| Leakage Current | ≤2mA |
| Insulation Resistance | ≥1MΩ (under normal conditions for motor power circuit) |
| Grounding Resistance | ≤0.1Ω (for AC operation) |
| Operating Temperature | -25℃ to +75℃ |
| Operating Humidity | ≤90% RH |
| Remote Control Frequency | 430MHz, learning code; effective distance ≤30m Supports up to 25 groups of codes, each with 2 remotes |
| Arm Opening/Closing Time | 3–6 seconds (≤6 seconds, adjustable according to site requirements) |
| Cabinet Material | Dual-arm housing, made of Q235 cold-rolled steel, thickness T = 1.5 mm, powder-coated surface |
| Protection Grade | IP44 |
| Service Life | ≥1,000,000 open/close cycles |
Core Mechanism Features
- Equipped with a brushless DC motor + three-stage gear reducer + dual crank-arm linkage with dual-spring balance structure.
- Clutchless design with a manual handwheel for emergency operation.
- Pure copper windings in the rotor ensure high efficiency and durability.
- Main swing arm and driving crank arm are made of cast steel; linkage components use cast steel with deep-groove ball bearings.
- Dual balance springs mounted on both sides of the mechanism ensure smooth and stable movement.
- Main shaft diameter: ∮40mm, made of precision-machined 45# steel with galvanized surface treatment.
- Balance springs: (∮5/∮6.5) × ∮40 × 460, multiple springs selected according to barrier arm length and matching mounting holes.
Basic Product Functions
- Gate opening/closing angle: 90°±2°.
- Equipped with standard dry contact interfaces for open, close, and stop signals.
- Supports integration with vehicle detectors, infrared sensors, pressure wave sensors, and barrier radar to prevent vehicle collisions.
- Controller timeout protection: If the gate operation exceeds the expected time due to a fault, the gate will automatically stop.
- Supports control via wireless remote or wired control buttons for open, close, and stop operations.
- Uses a brushless DC motor with a pure copper rotor for stable gate movement.
- Equipped with counting and digital check functions for gate operation tracking.
相关产品
Barrier GateKapaisi KPS-DZ-8004 Advertising Barrier Fence Gate
Barrier GateBarrier Gate Controller License Plate Recognition
- Barrier Gate

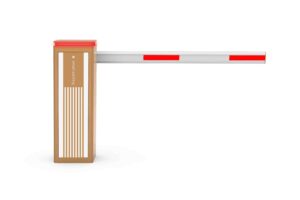

Automatic Barrier Arm Gate KPS-DZ-8003
