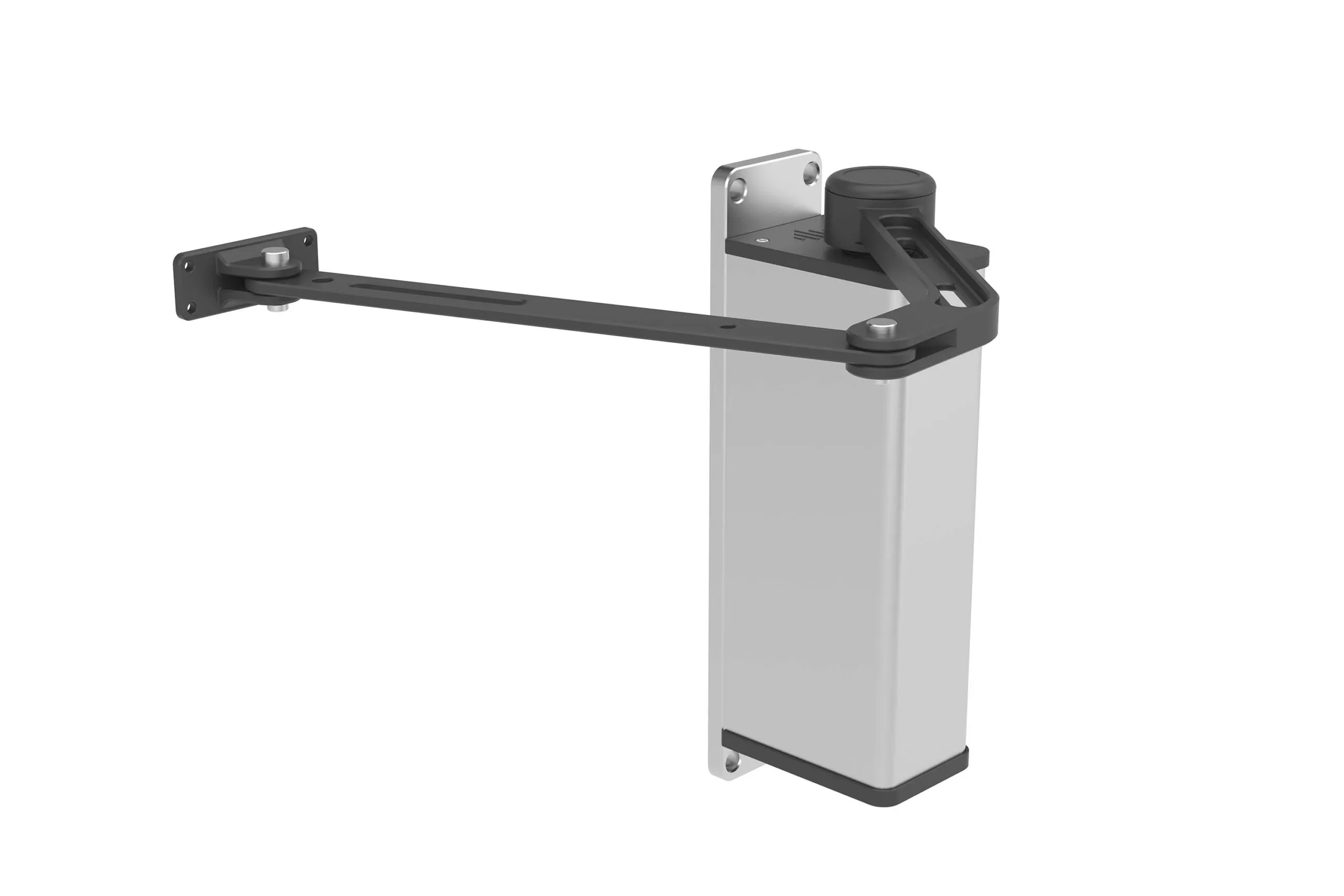

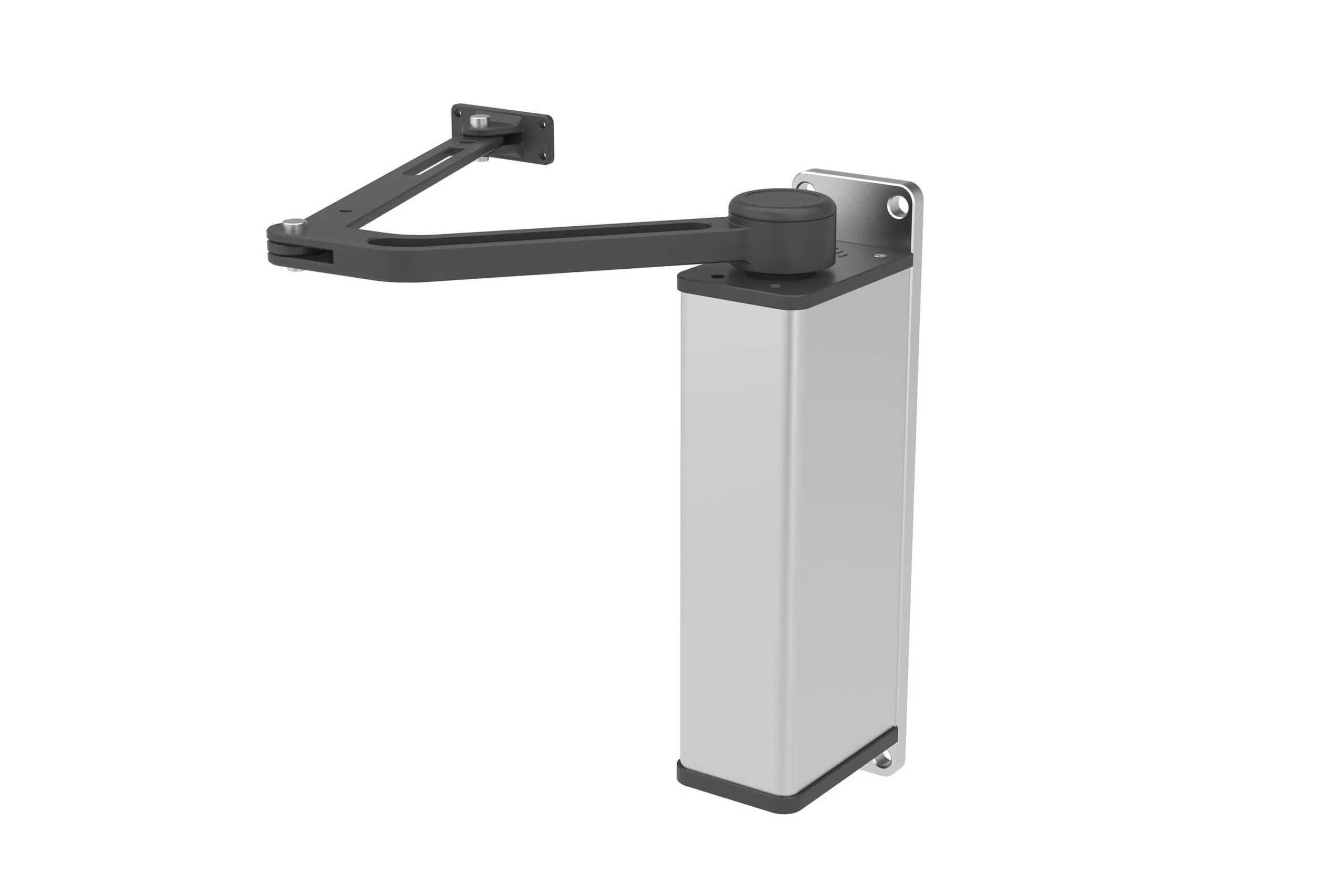

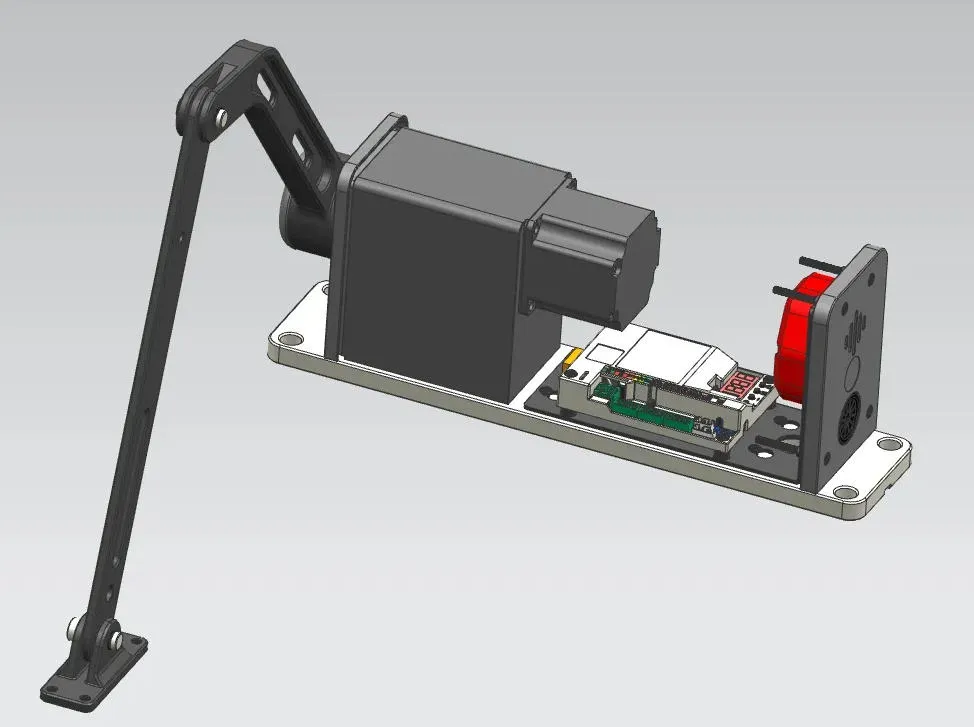

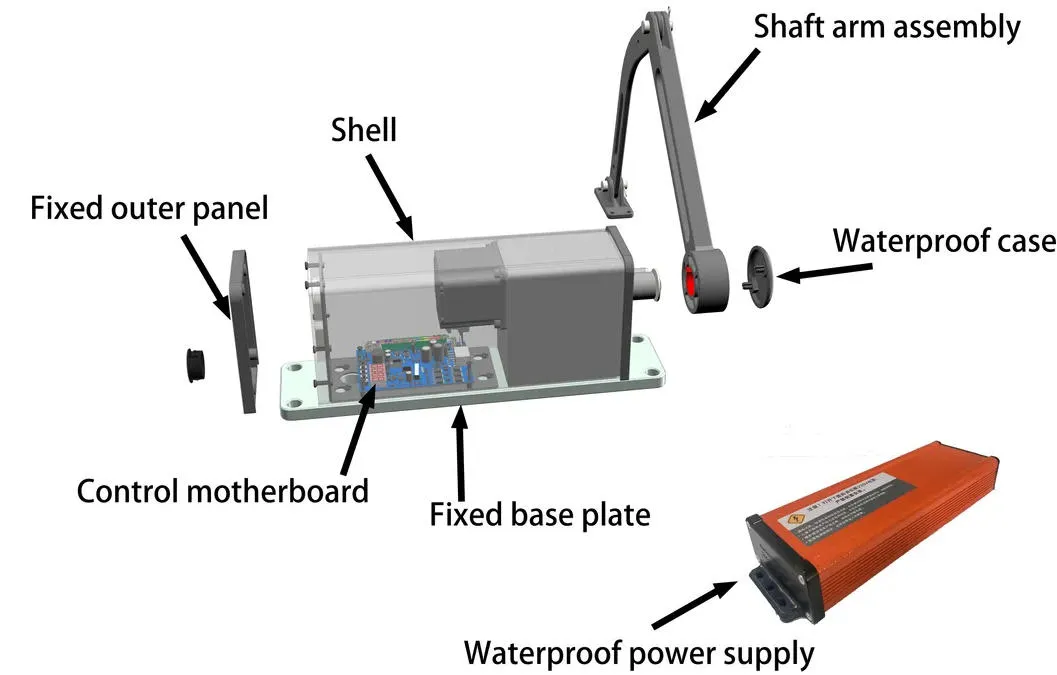

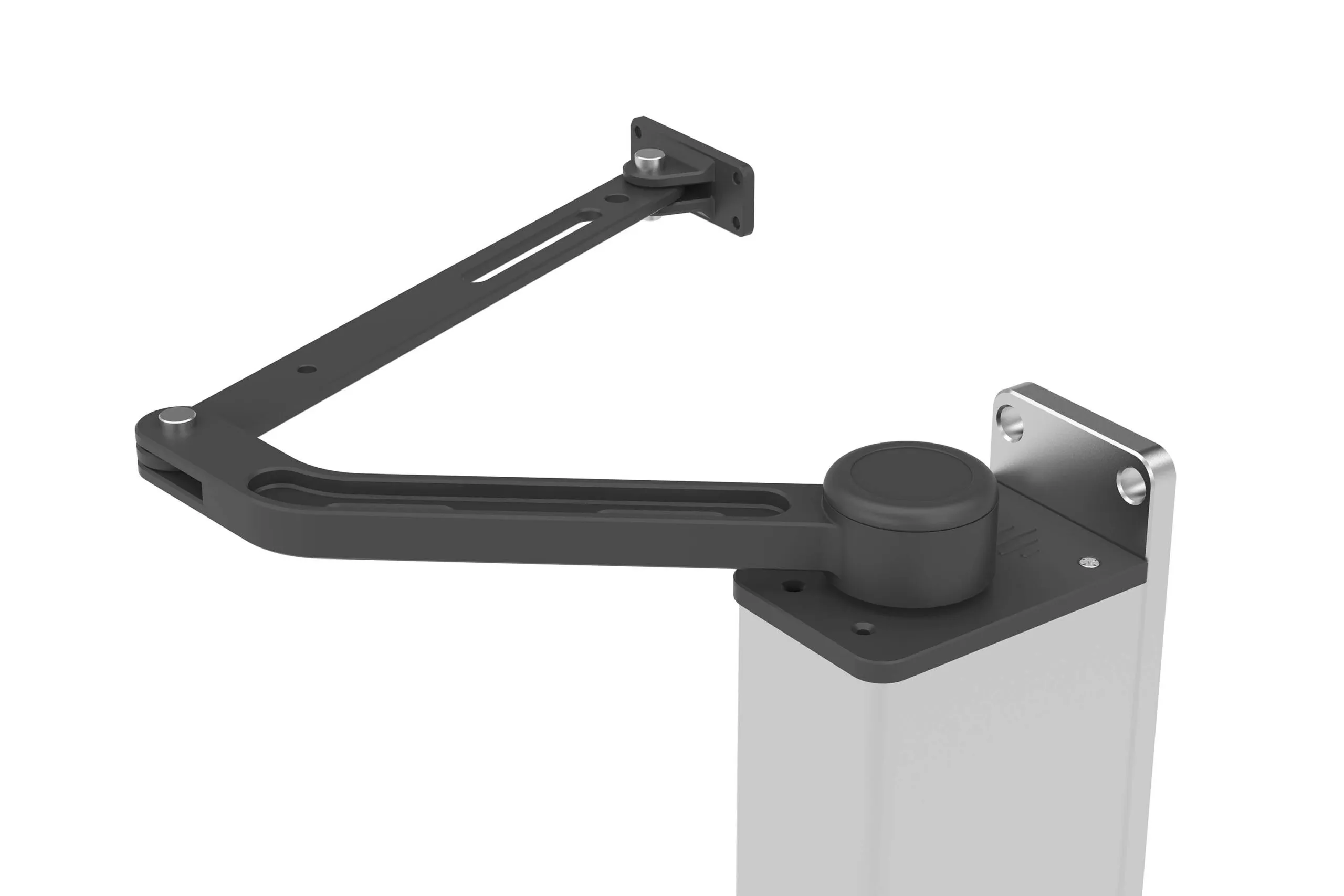

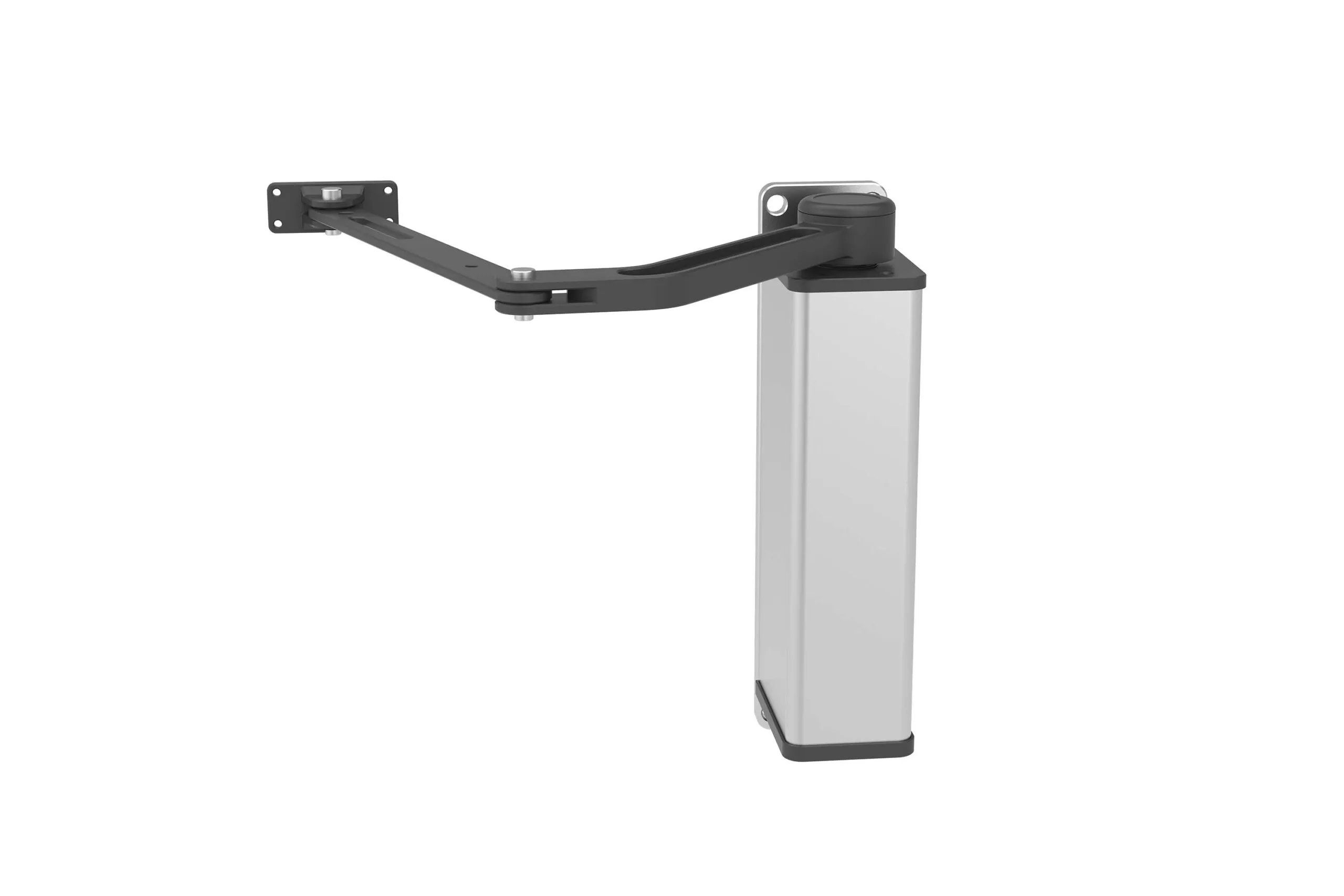

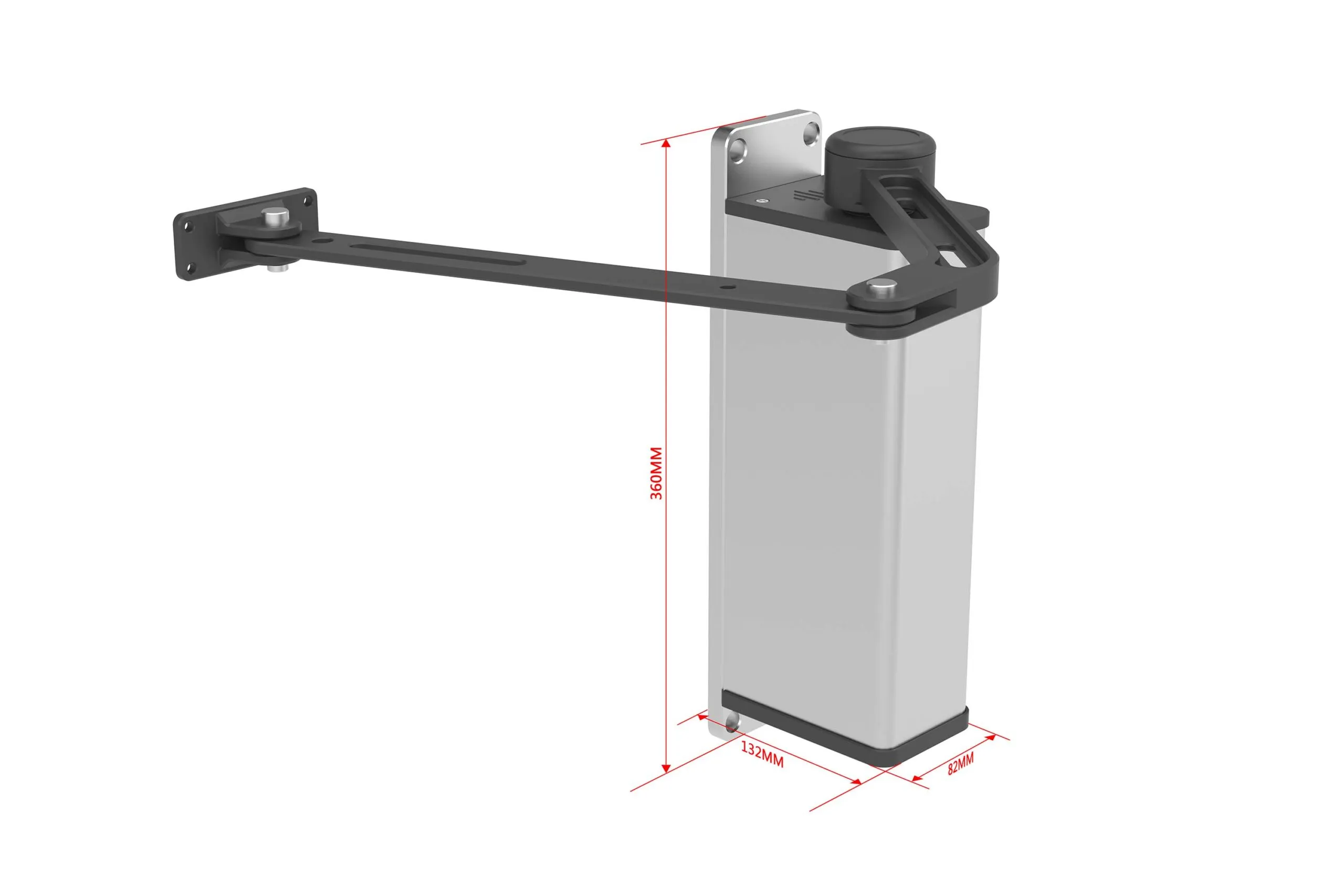

Kapaisi Automatic Swing Door Opener KPS-KM-4001
- Low Power, High Efficiency
- Ultra-Quiet Operation
- Strong & Fire-Safe Design
- Smart Control & Connectivity
Product Parameter
The KPS-KM-4001 Automatic Door Opener is an advanced and intelligent solution designed for smooth, quiet, and reliable access control. Engineered with low power consumption (<2W in standby mode, 60W during operation), it ensures energy efficiency without compromising performance. With a powerful motor capable of handling doors up to 260 kg, it is ideal for both residential and commercial applications.
Operating at a noise level below 45dB, the device guarantees ultra-quiet performance for noise-sensitive environments. The built-in power-on self-locking mechanism eliminates the need for magnetic locks while still allowing door release during power outages—fully complying with fire safety standards.
The KPS-KM-4001 supports dual-door operation with synchronized opening, along with adjustable opening/closing speed, distance, and hold-open time for complete customization. It also features smart Bluetooth mini-program support for on-site debugging and control and can be upgraded with 4G and WiFi modules for seamless remote management.
This opener is the perfect blend of strength, intelligence, and safety for modern door automation needs.
Product Feature
- Low power consumption, static power < 2W, maximum working power:60w,
- Ultra quiet, noise level during operation is lower than 45dB;
- Strong force, maximum door pushing weight:260 Kg;
- Power-on self-locking, no magnetic lock required, can open door whenpower is off, in line with fire protection requirements;
- Dual door mode can achieve simultaneous opening;
- The speed of door opening and closing can be adjusted; the distance ofdoor opening and closing can be adjusted,the duration of door opening can be adjusted;
- Supports intelligent Bluetooth mini-program debugging and control, canbe extended with 4G module,WiFi module, for remote control;
General Technical Conditions
- Normal Insulation Resistance: The motor insulation resistance shall not be lower than 100MΩ
- Electrical Strength: The conductive parts of the motor and the housing bracket shall withstand 700V/S without breakdown.
- Motor Temperature Rise:≤75K.
- Motor Noise:s45dB.
- Working Temperature&Humidity:-25C to 60C, humidity ≤95%(no condensation).
- Altitude: Below 2,000 meters

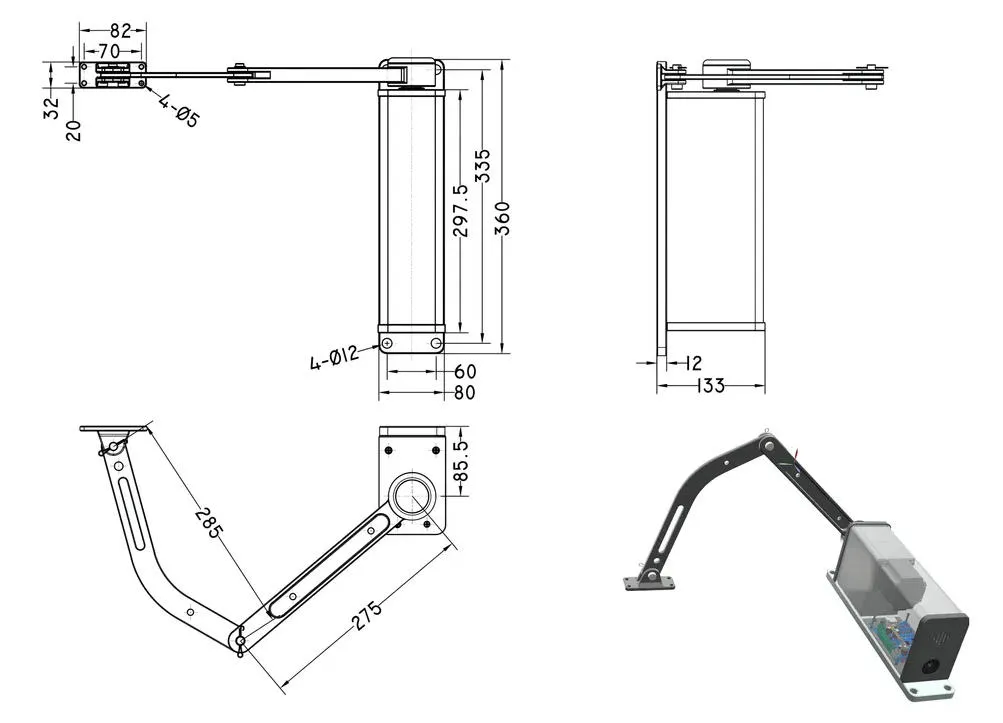

Product Parameter:
| Parameter | Specification |
| Product Model | KPS-KM-4001 |
| Installation Method | Side Mount |
| Single Door Load-Bearing | 260KG |
| Single Door Width | 150CM |
| Input Voltage / Frequency | AC95V–260V, 47Hz–63Hz |
| Rated Power | 60W, Maximum Power 100W |
| Static Power Consumption | <2W (without electromagnetic lock) |
| Working Temperature | -25°C ~ 60°C |
| Working Humidity | Less than 95% (no condensation) |
| Signal Input Type | Active or Passive |
| Door Opening/Closing Speed Level | Adjustable from 30 to 99 (corresponding to 2–6 seconds for 90° rotation) |
| Door Open Duration | 1–99 seconds |
| Overall Machine Weight | 6KG |
| Door Opening Angle | 115° |
相关产品

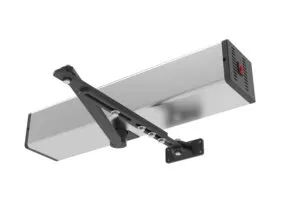

Automatic Door OpenerKapaisi Automatic Electric Door Opener KPS-KM-4003
- Automatic Door Opener

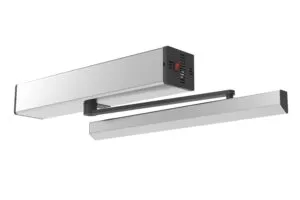

Kapaisi Automatic Swing Door Operator KPS-KM-4002
