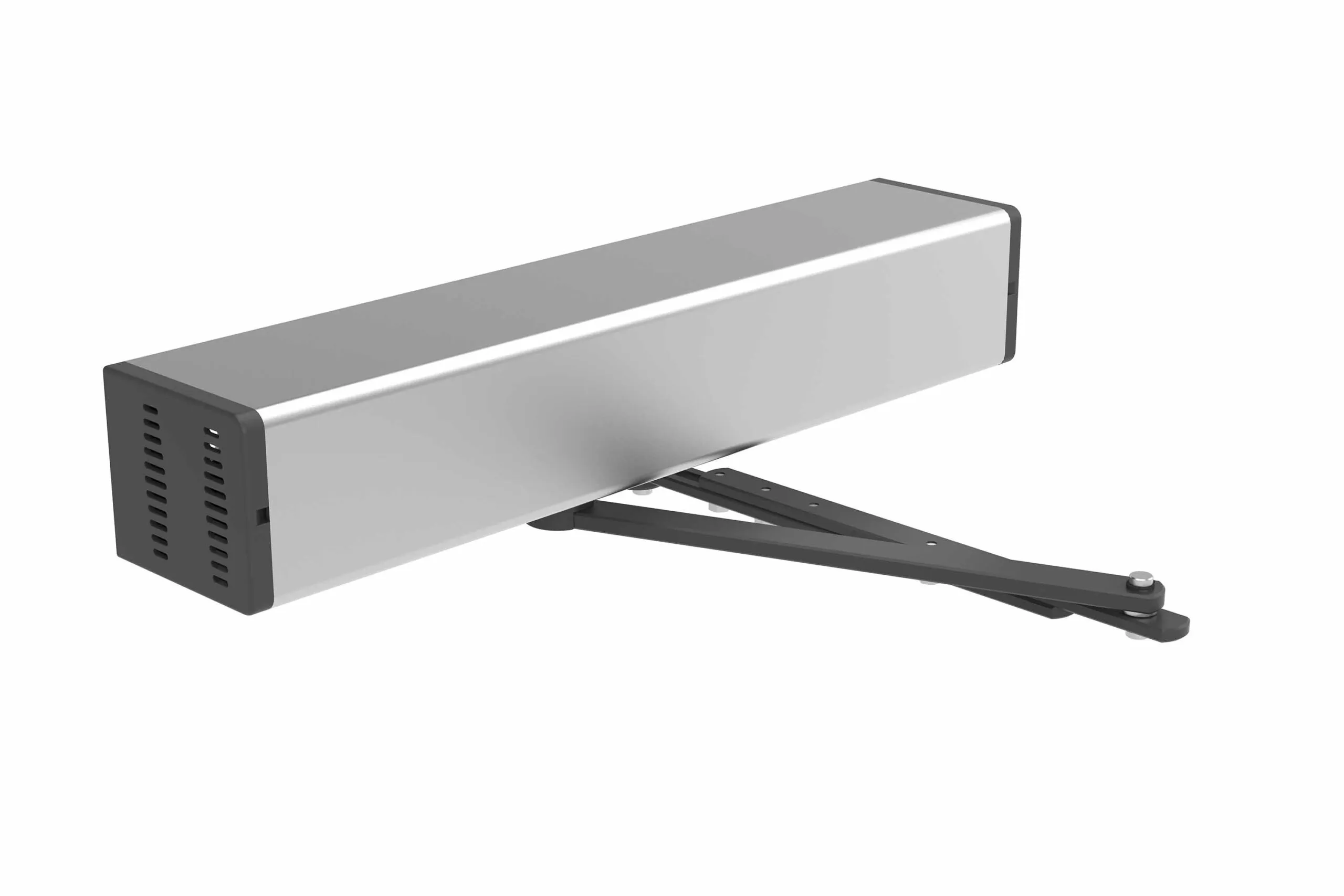

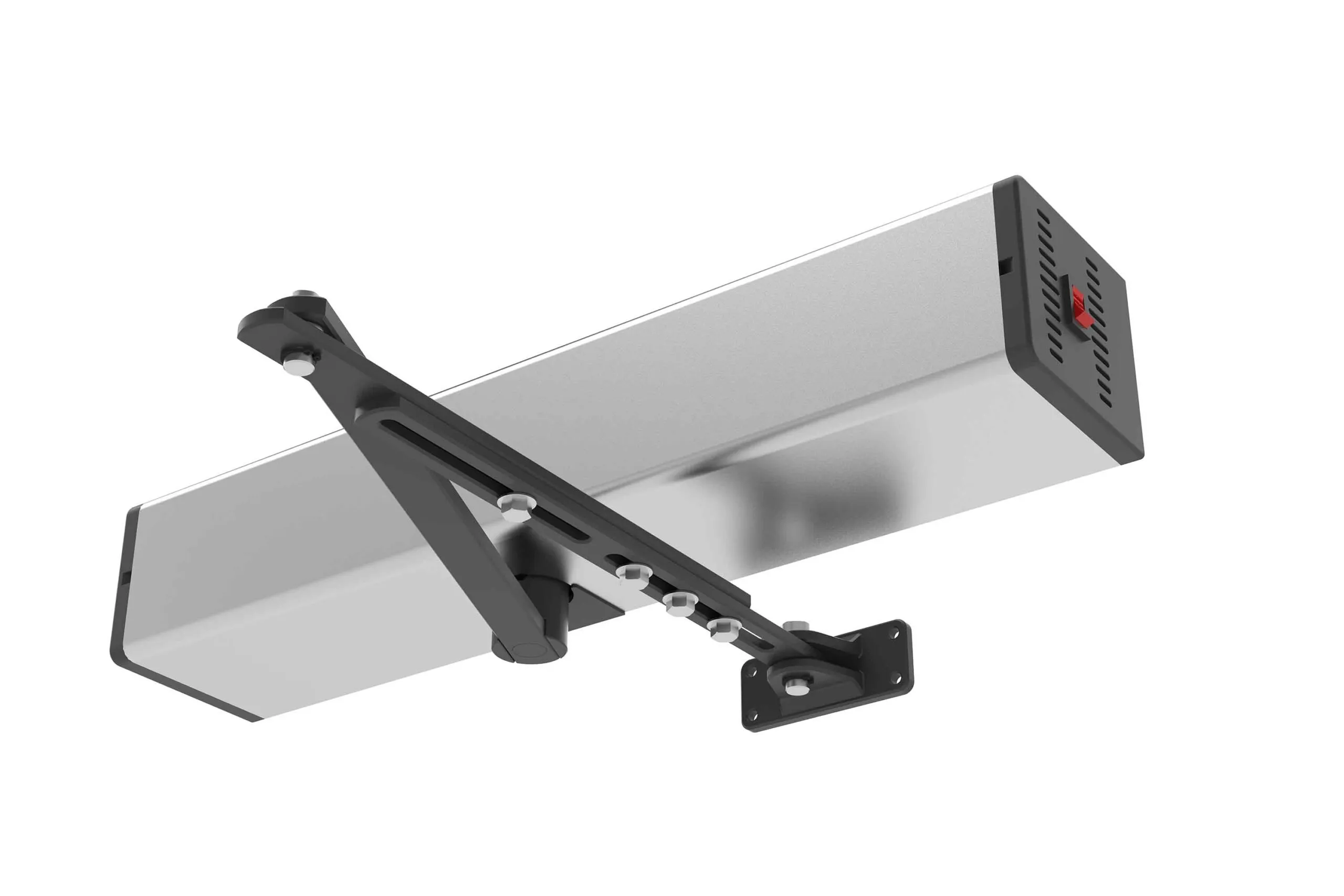

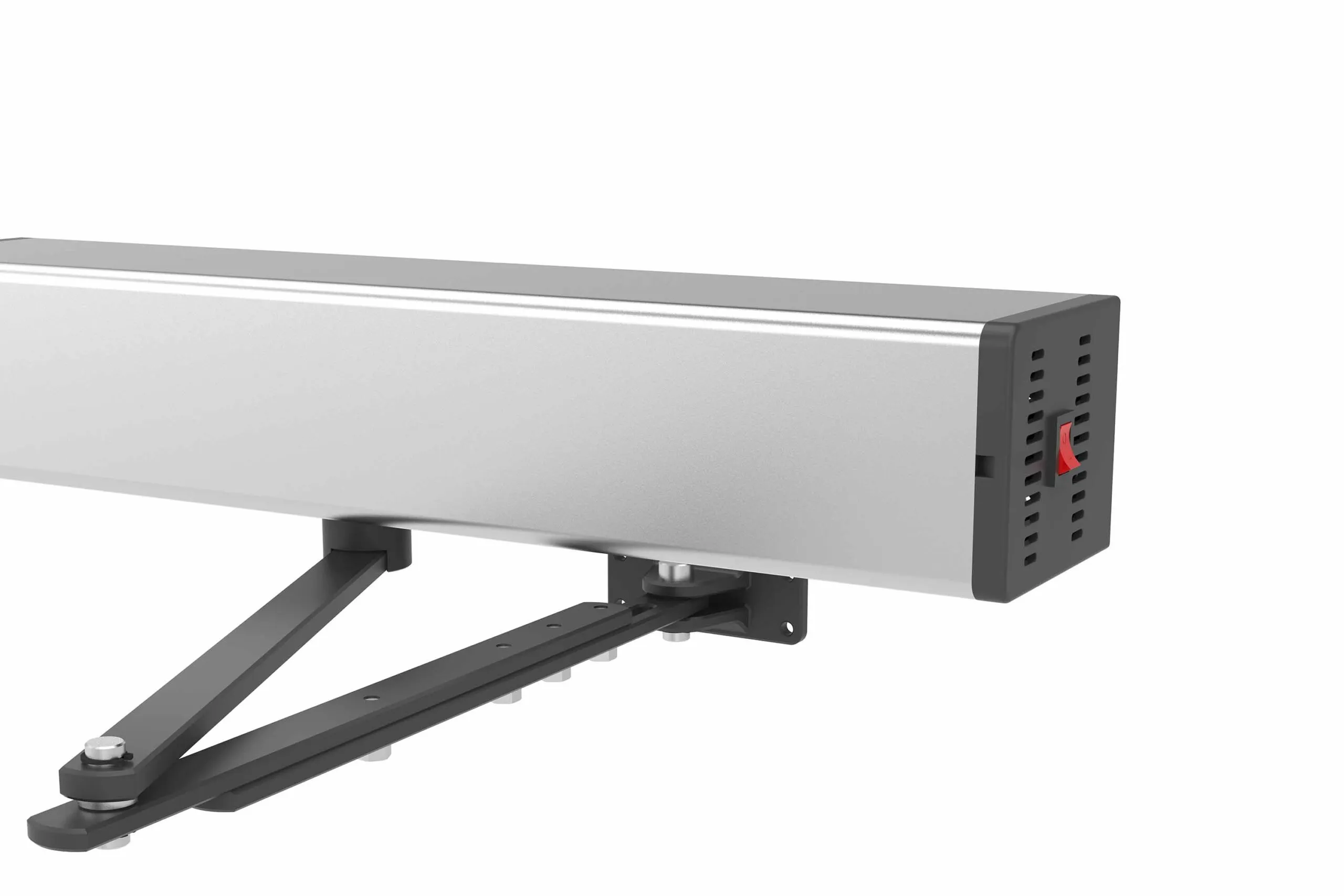

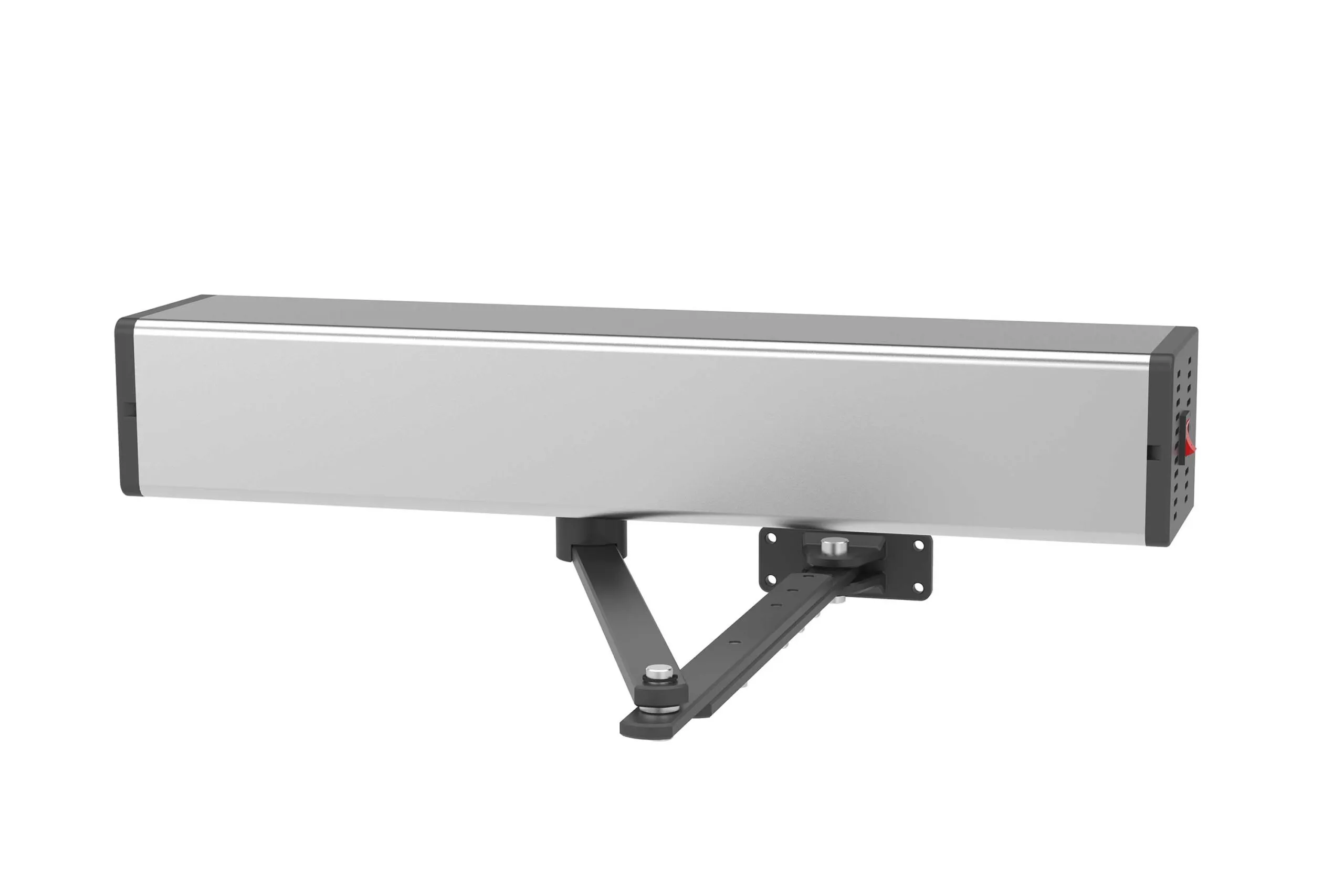

Kapaisi Automatic Electric Door Opener KPS-KM-4003
- Quiet Operation <50dB
- Smart Dual-Door Sync
- Multi-Signal Integration
- Comprehensive Safety Protections
Product Parameter
The Kapaisi KPS-KM-4003 is a next-generation automatic electric door opener designed for modern access control environments that demand both performance and versatility. Tailored for a wide range of door types—including single doors, double doors, and leaf-and-a-half configurations—the KPS-KM-4003 delivers reliable and customizable operation for offices, residential complexes, public buildings, and more.
Powered by a secure 24V DC system, it ensures user safety while maintaining exceptional energy efficiency with a static power consumption of less than 1W and a peak operating power of just 60W. The unit features independent speed adjustment for both opening and closing actions, combined with a multi-phase speed curve that provides smooth, linear motion for a seamless user experience.
Designed for intelligent integration, the KPS-KM-4003 supports a variety of signal inputs including relay and voltage signals, and allows remote control via external devices. Infrared motion sensor compatibility and built-in anti-collision rebound functionality further enhance pedestrian safety.
Advanced protection mechanisms are built in to guard against motor overcurrent, overload, short circuit, reverse polarity, and system faults. The KPS-KM-4003 also supports RS-485 communication for synchronized dual-door operation, making it an excellent choice for high-traffic or secure entry points.
Highly configurable and engineered for quiet operation below 50dB, this door opener meets the demands of smart buildings and energy-conscious projects while delivering uncompromising safety, flexibility, and durability.
Product Feature
- Safety:Powered by a 24V DC power supply to ensure personal safety.
- Energy Saving:Static power consumption is less than 1W; maximum working power is 60W.
- Adjustable Speed:Independent adjustment of door opening and closing speeds.
- Smooth Operation: Multi-stage speed design ensures linear and stable movement.
- Quiet: Operating noise is below 50dB.
- Multiple Signal Inputs Supported: Compatible with relay signals and voltage signals.
- Multiple Protections:Includes motor overcurrent, overload, short-circuit, fault, and reverse polarity protection.
- Pedestrian Safety: Features anti-collision and obstacle rebound functions.
- Infrared Sensor Support:Supports infrared body detection input to enhance pedestrian safety.
- External Remote Control Supported:Compatible with remote controller input.
- Customizable Parameters:Various operational parameters can be configured.
- Supports Multiple Door Types:Suitable for single doors, double doors, and leaf-and-a-half doors.
- RS-485 Communication:Enables synchronized opening/closing between two doors via RS-485 communication.
Product Parameter:
| Parameter | Specification |
| Product Model | KPS-KM-4003 |
| Installation Method | Horizontal installation |
| Single Door Load-Bearing | 135KG |
| Single Door Width | 120CM |
| Input Voltage / Frequency | AC95V–260V, 47Hz–63Hz |
| Rated Power | 45W, Maximum Power 60W |
| Static Power Consumption | <2W (without electromagnetic lock) |
| Working Temperature | -25°C ~ 60°C |
| Working Humidity | Less than 95% (no condensation) |
| Signal Input Type | Active or Passive |
| Door Opening/Closing Speed Level | Adjustable from 30 to 99 (corresponding to 2–6 seconds for 90° rotation) |
| Door Open Duration | 1–99 seconds |
| Overall Machine Weight | 6KG |
| Door Opening Angle | 115° |
