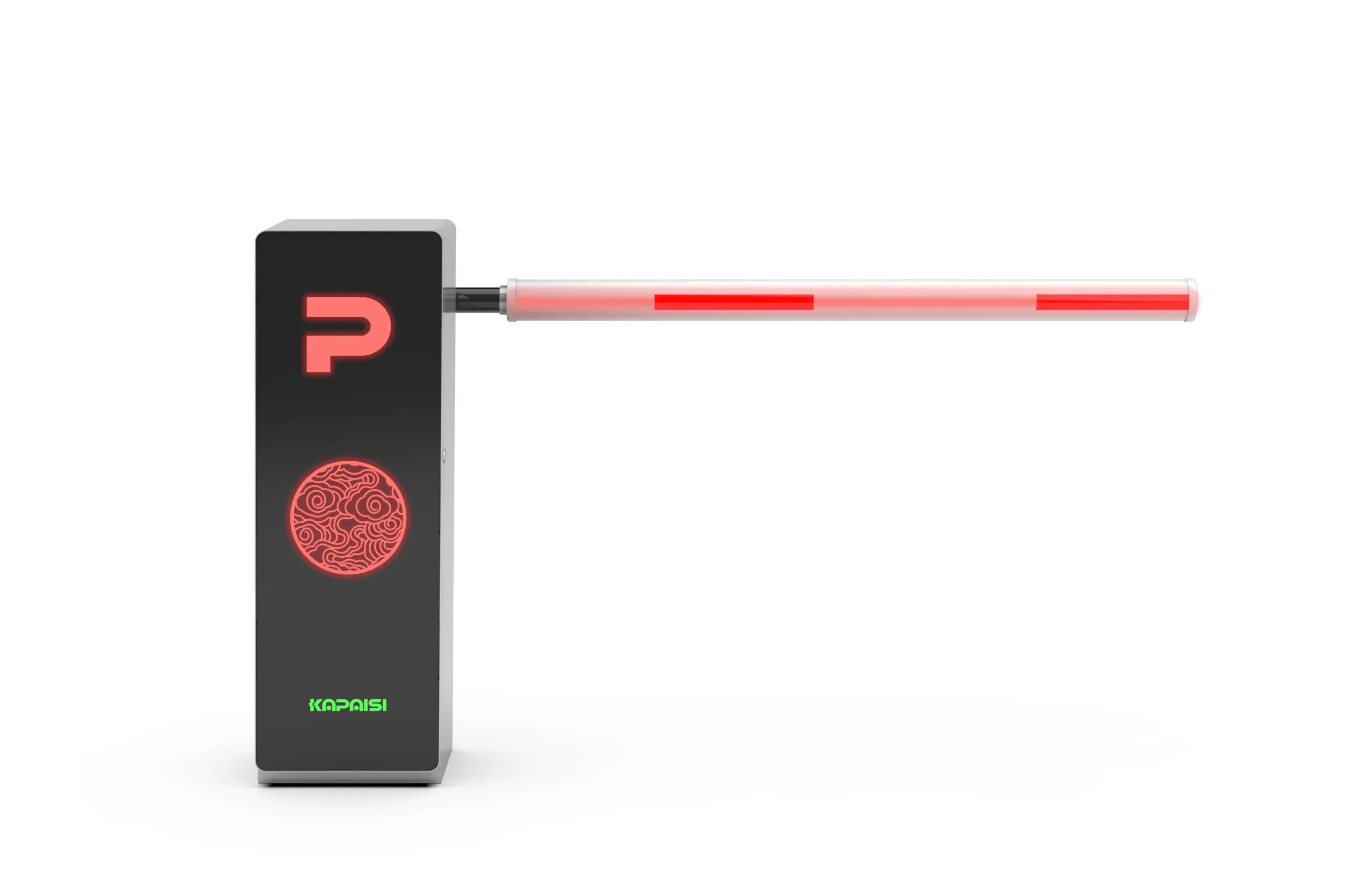

Automatic Barrier Arm Gate KPS-DZ-8003
- Sleek and elegant design
- High-strength aluminum alloy main housing
- Stable operation with low heat generation
- Compact size and easy installation
Product Parameter

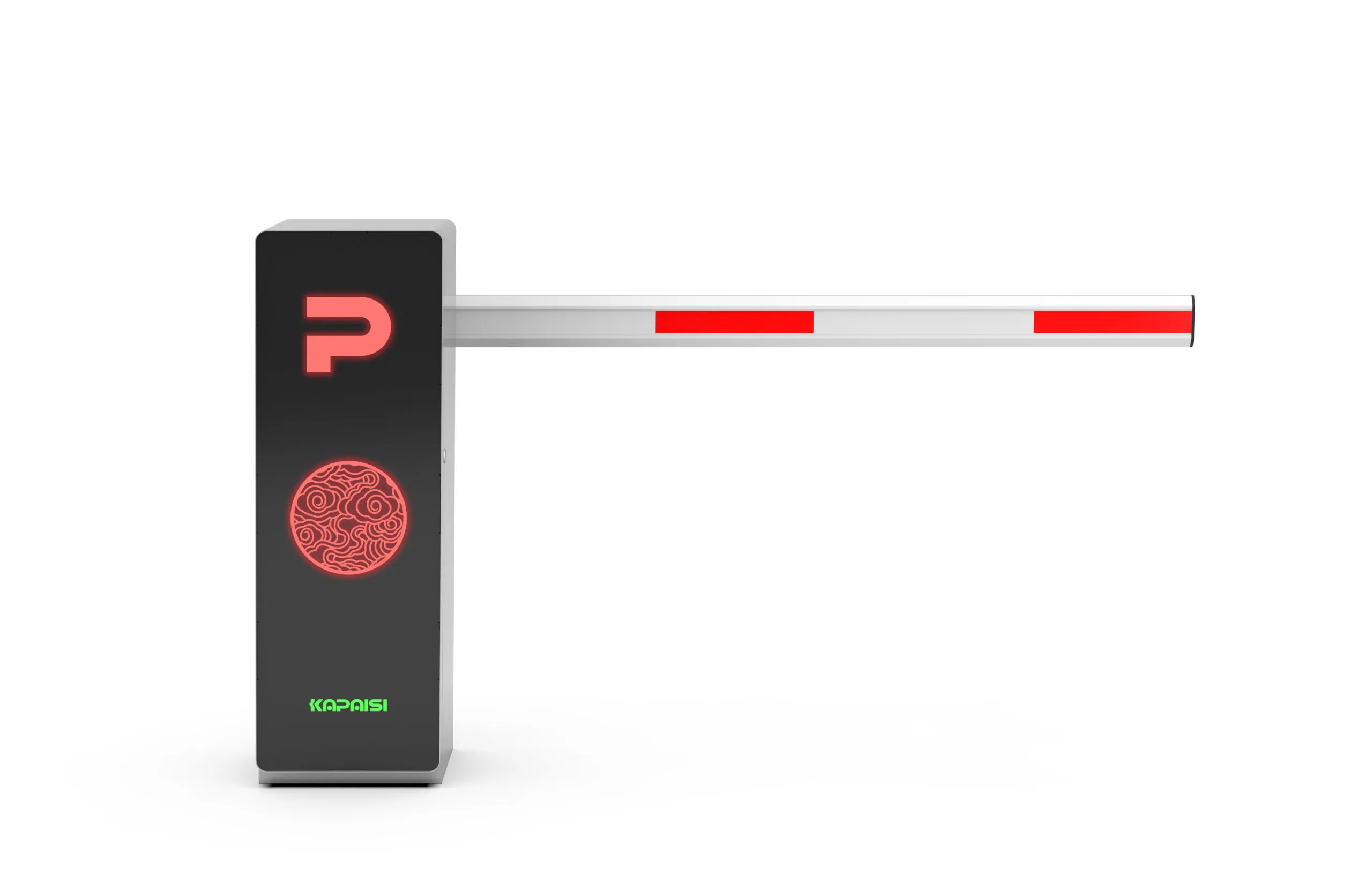

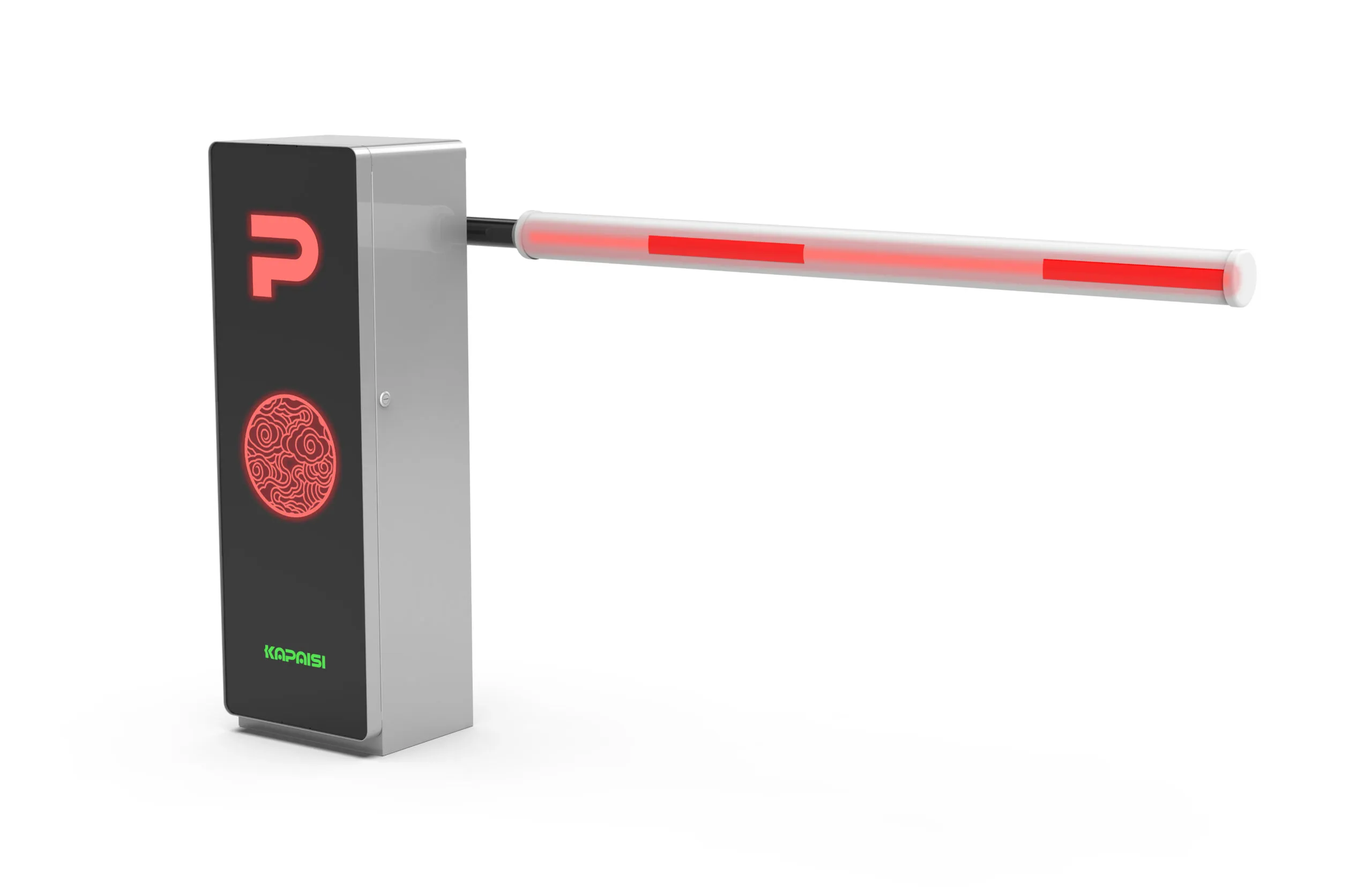

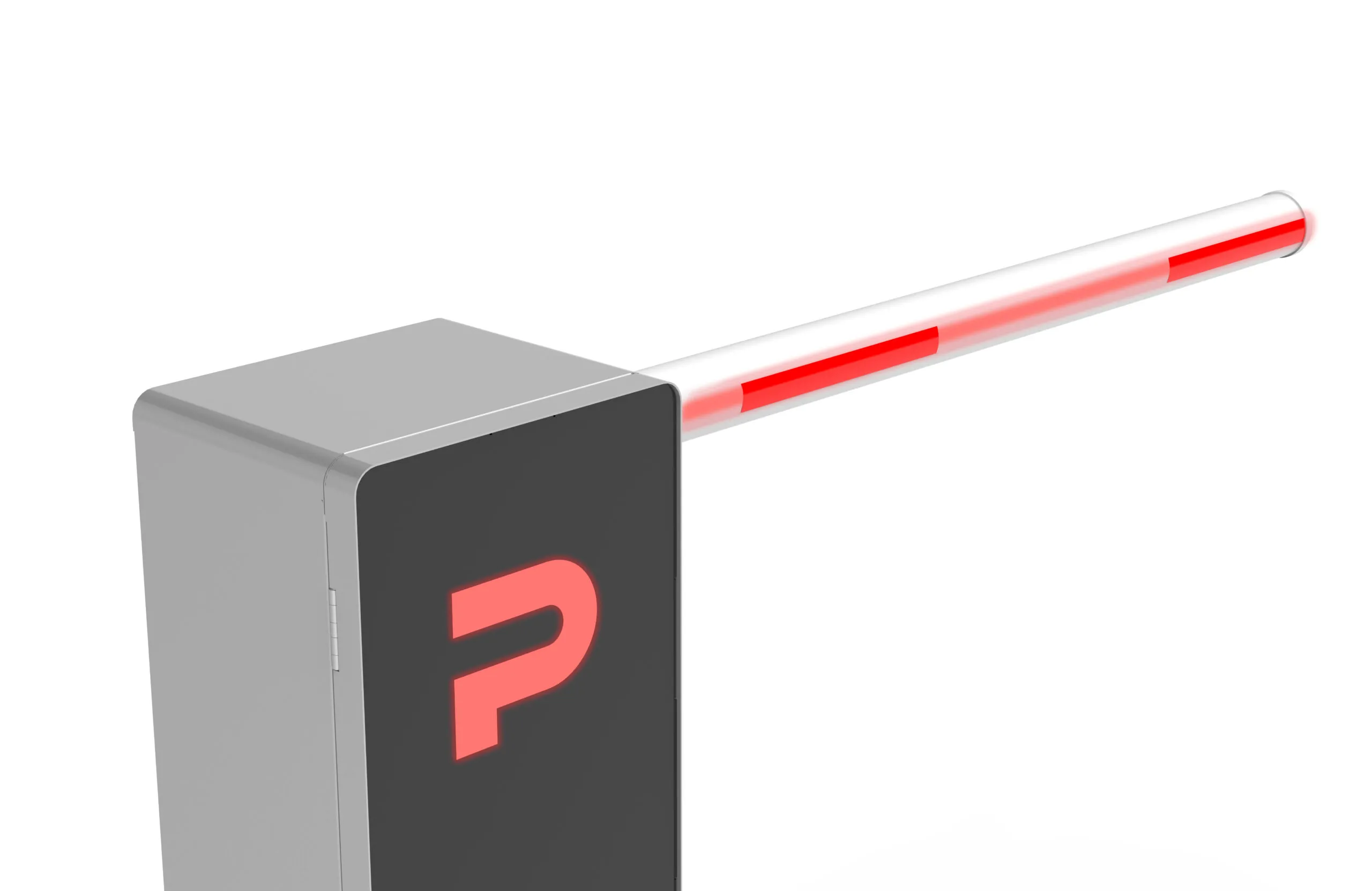

Kapaisi Automatic Barrier Arm Gate KPS-DZ-8003
The Kapaisi automatic barrier arm gate KPS-DZ-8003 features a brushless DC motor and servo control system, allowing stepless speed adjustment for smooth and quiet operation. It supports 24V UPS and solar power, ensuring uninterrupted performance during power outages. With fully digital operation and centralized network management, it is ideal for vehicle access control at parking lots, residential communities, corporate facilities, and parks.

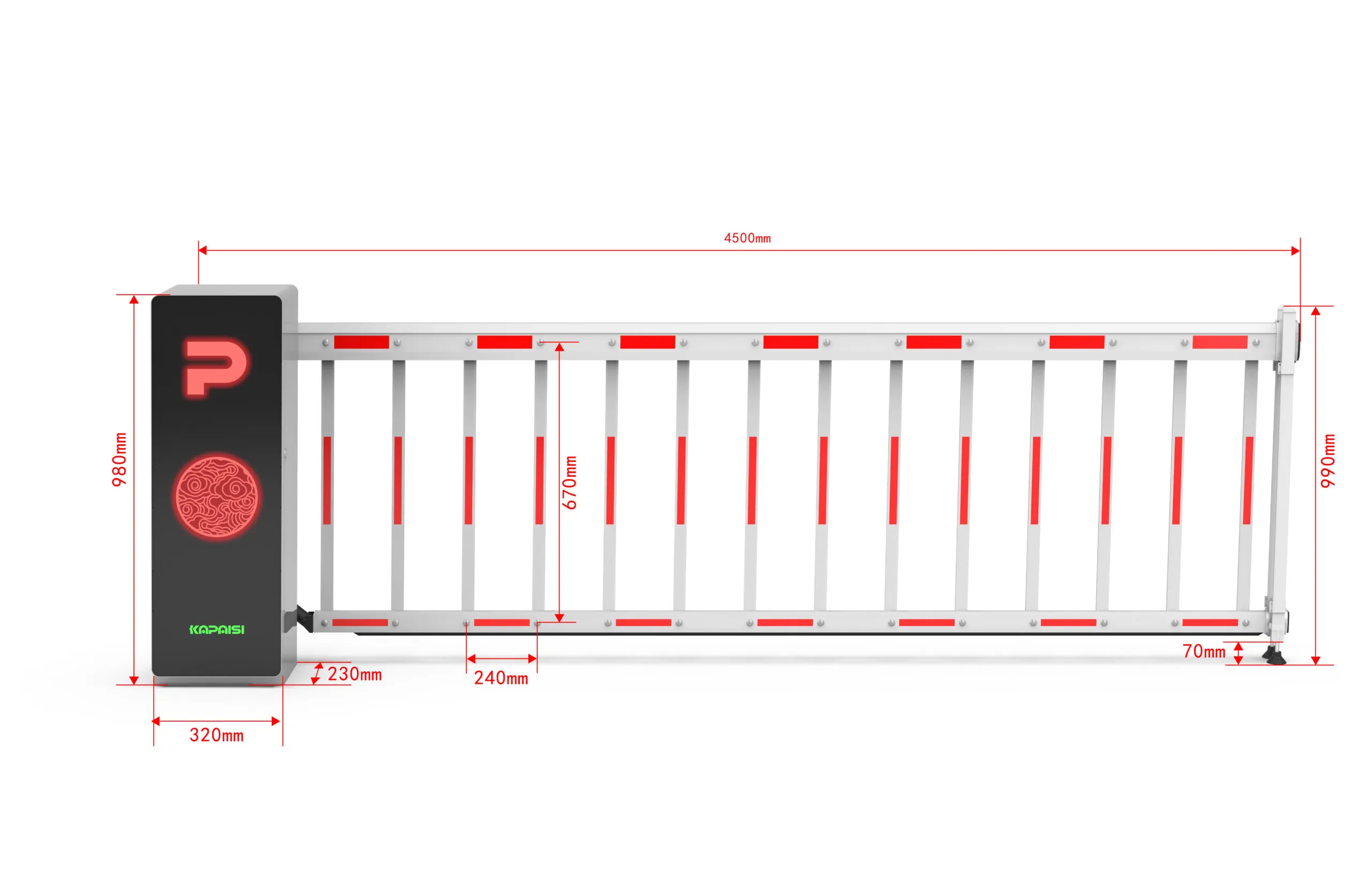

Product Dimensions
| Item | Specification |
| Main Unit Dimensions | 980 × 320 × 230 mm |
| Packaging Dimensions | 1060 × 420 × 265 mm |

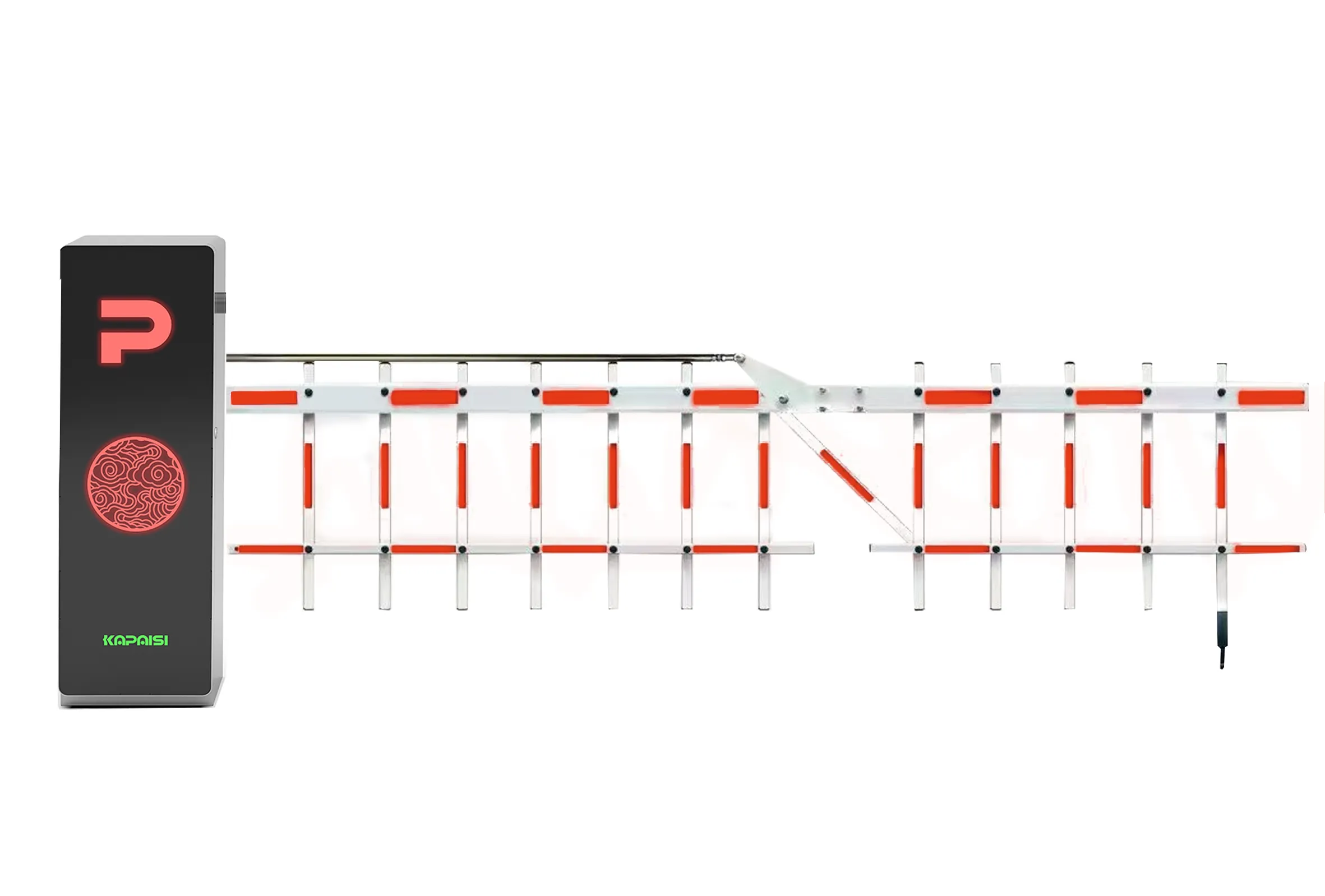

| Barrier Arm Options | 1–6 meters optional (straight arm / fence arm / curved arm / oval arm / water-cut arm [4 meters]) |
Technical Specifications
| Parameter | Specification |
| Power Supply | AC 220V ±10%, 50Hz |
| Rated Power | 120W |
| Leakage Current | ≤2mA |
| Insulation Resistance | ≥1MΩ under normal conditions (motor power line) |
| Grounding Resistance | ≤0.1Ω during AC operation |
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | ≤90% RH |
| Remote Control Frequency | 433MHz, learning code |
| Remote Control Distance | ≤30 meters; supports up to 10 individual remote codes |
| Arm Opening/Closing Time | Stepless adjustable from 1 to 6 seconds |
| Housing Material | Q235 cold-rolled steel, thickness T = 1.5 mm, powder-coated surface |
| Protection Grade | IP54 |
| Service Life | ≥1,000,000 open/close cycles |
Core Mechanism Features
- The movement is installed by side fixation, featuring a compact structure.
- The main body of the movement is made of aluminum alloy through die-casting process, with an integrated structure that is small in size, reliable in mechanical strength, and fast in heat dissipation.
- The movement adopts helical gear reduction transmission, which is highly efficient, stable in performance, and causes little power output loss; the gears undergo carburizing heat treatment, high-precision gear grinding, and are shock-resistant, ensuring a long service life.
- It is a DC brushless movement with low heat generation, stable transmission, and large output torque. Through the driver, speed regulation, buffer deceleration during the lifting and lowering of the barrier can be achieved, ensuring smooth and stable operation.
- The motor uses a safe 24V DC voltage, which is safer compared to traditional AC motors.
Basic Functions
- Gate opening/closing angle: 90° ±2°.
- Equipped with standard dry contact interfaces for open, close, and stop commands; supports remote control and mobile control via mini programs.
- Features automatic operation monitoring; anti-crush force and sensitivity time are adjustable without the need for external safety devices.
- Controller timeout protection: If the gate operates abnormally and exceeds the set time for raising/lowering, it will automatically stop.
- Supports wireless remote control and wired control buttons for open, close, and stop functions.
- Equipped with red-green traffic light function and breathing light effect.
- Features self-learning function and vehicle queuing (fleet) counting capability.
