Kapaisi Arc-Shaped Access Control Turnstile KPS-TD-3303
- Stable and Durable Construction
- Comprehensive Safety Protection
- Smart Access & Flow Management
- Easy Installation & Maintenance
Product Parameter
Kapaisi Arc-Shaped Access Control Turnstile KPS-TD-3303

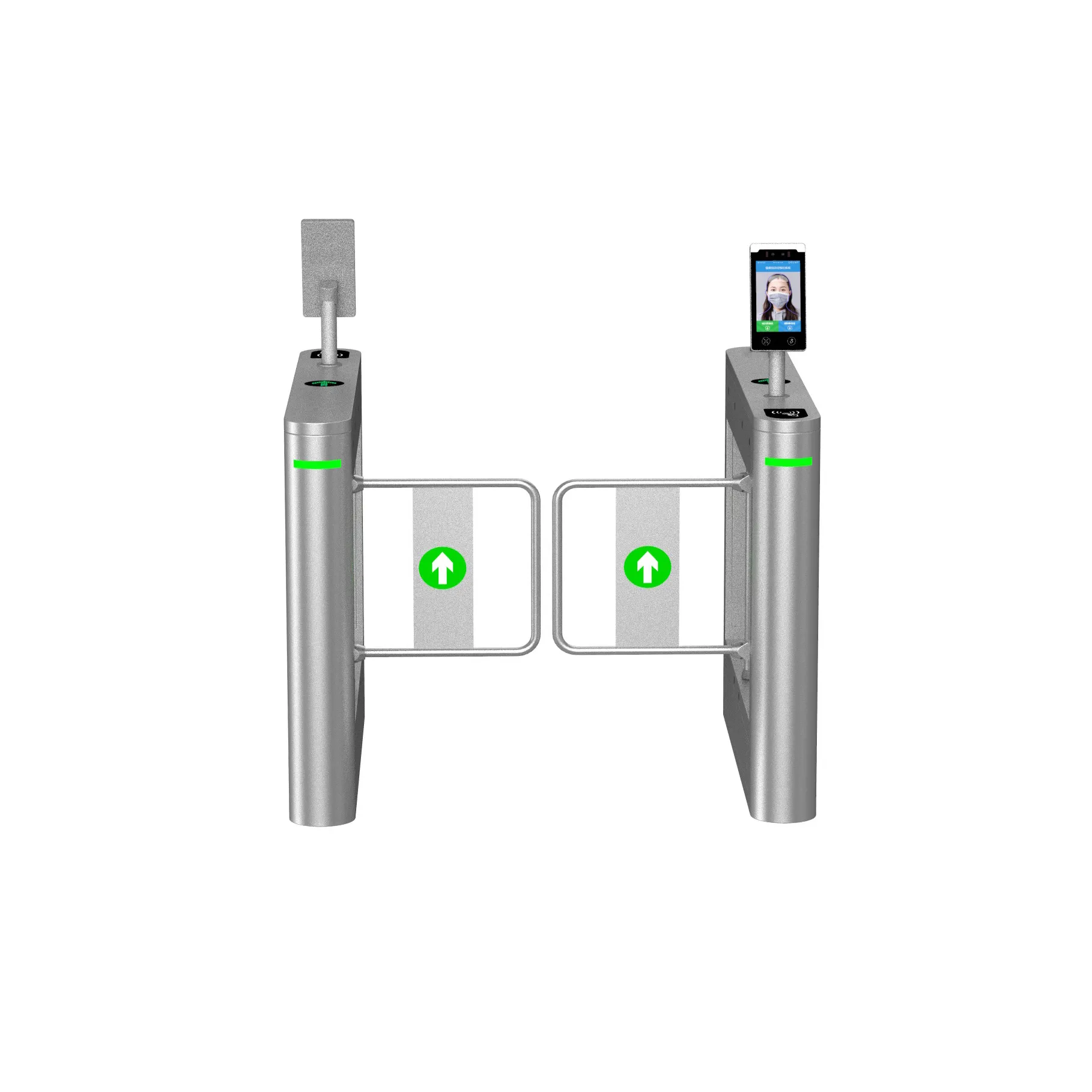

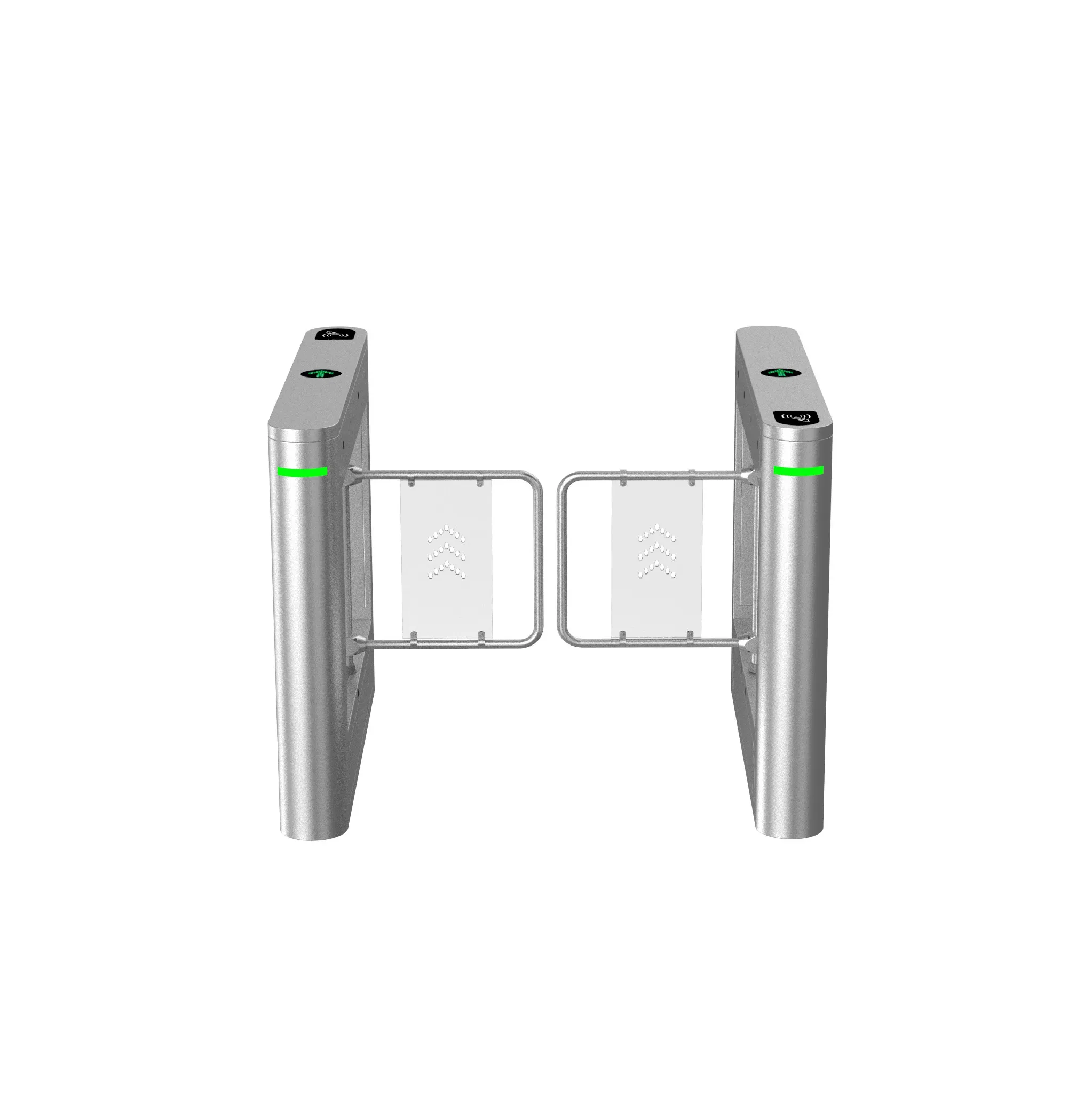

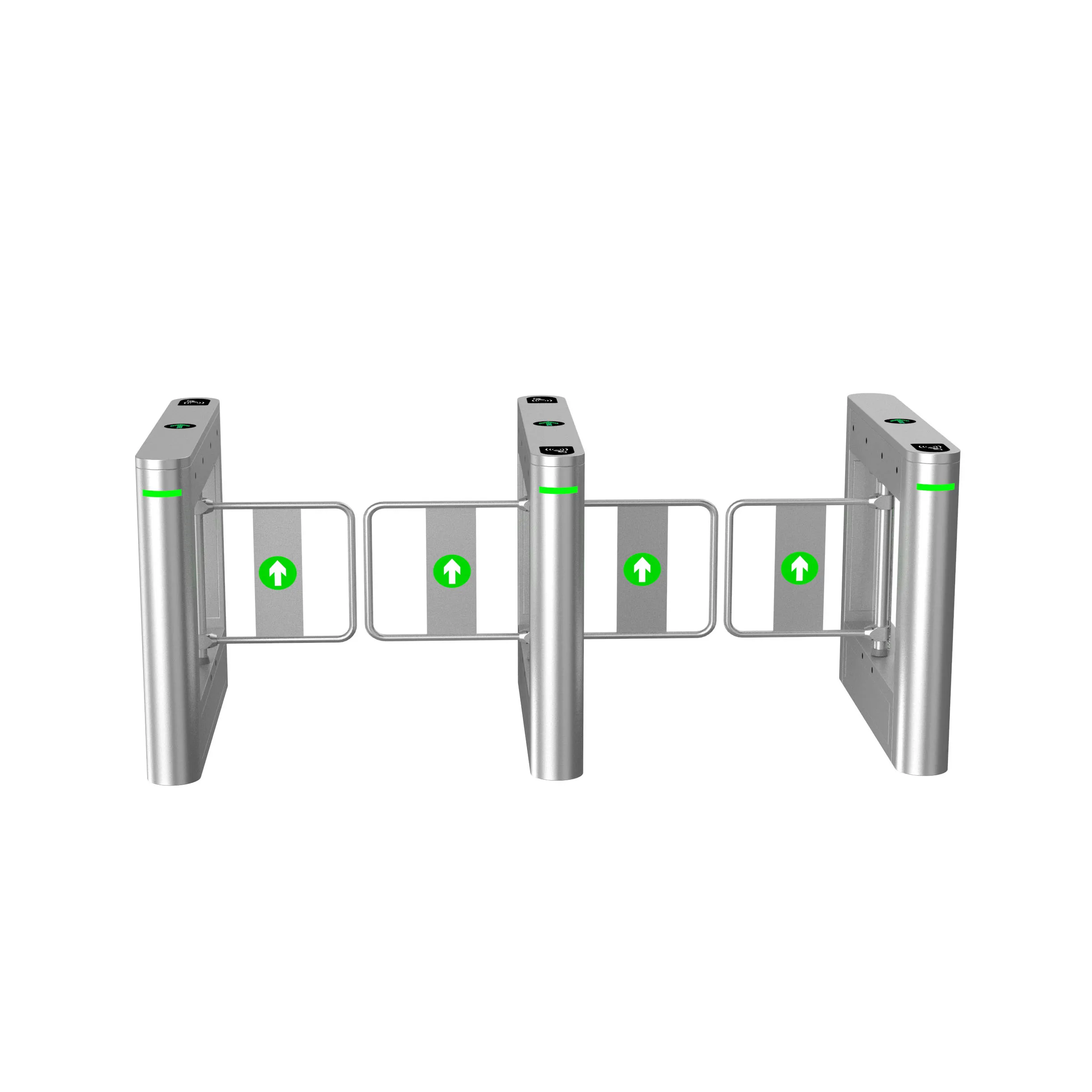

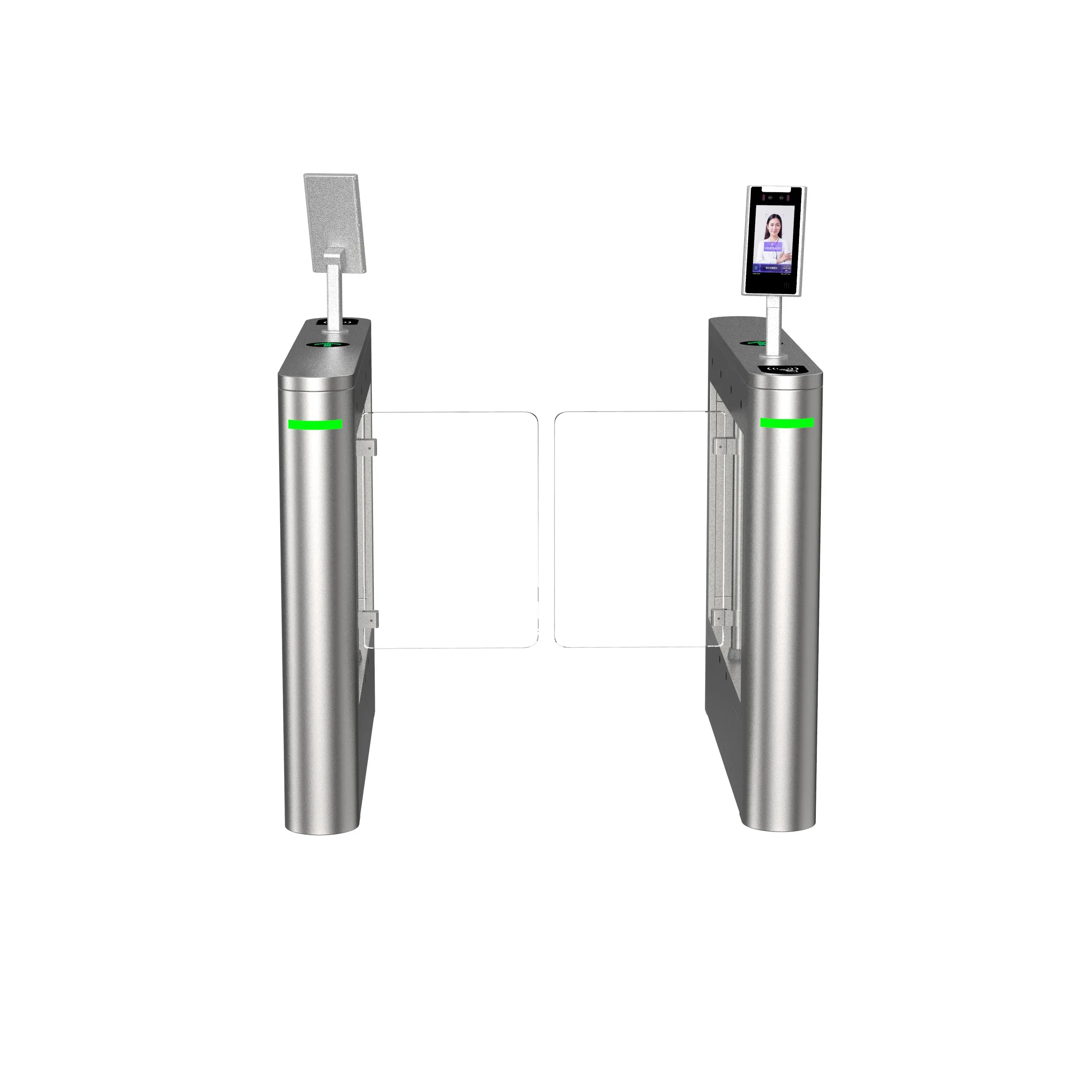

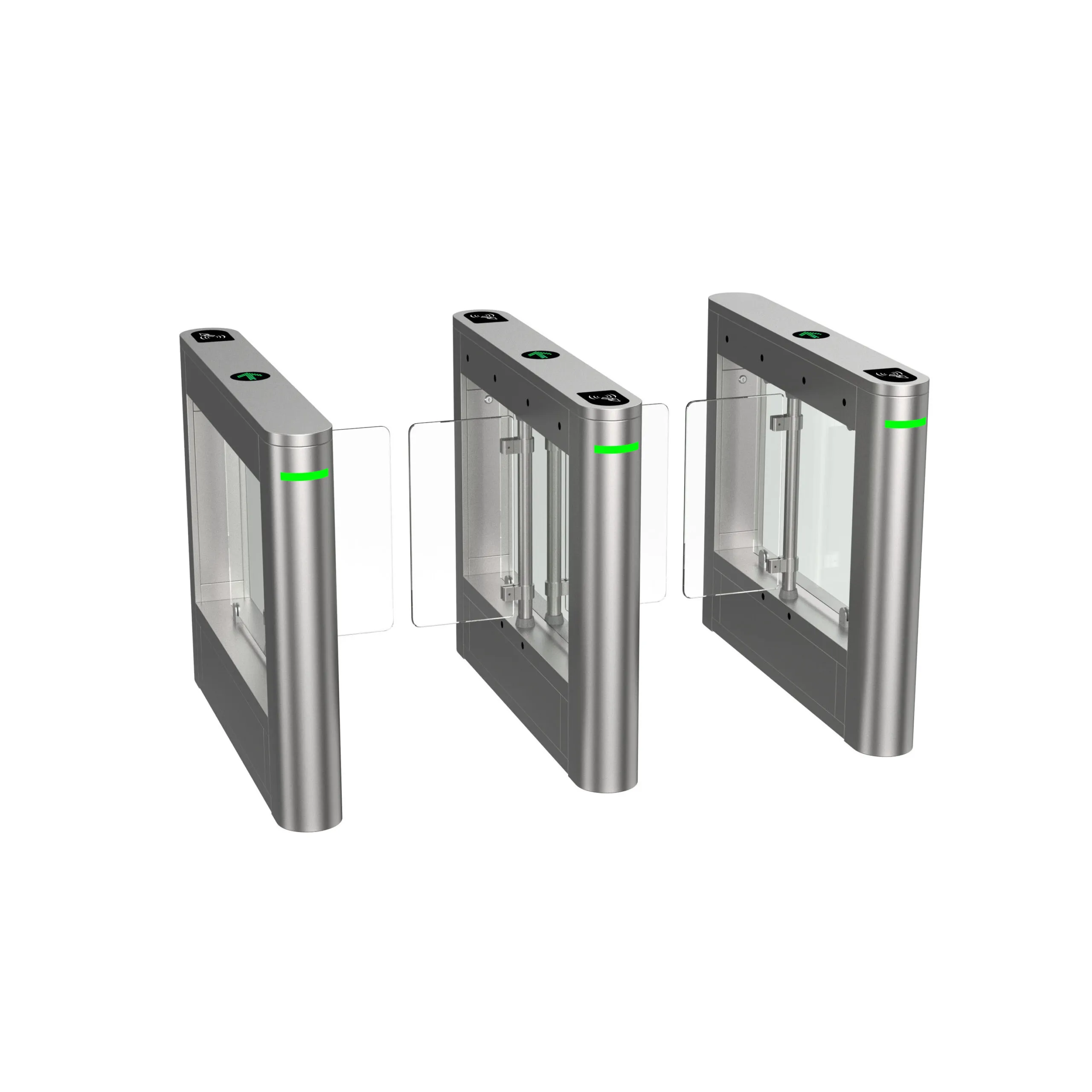

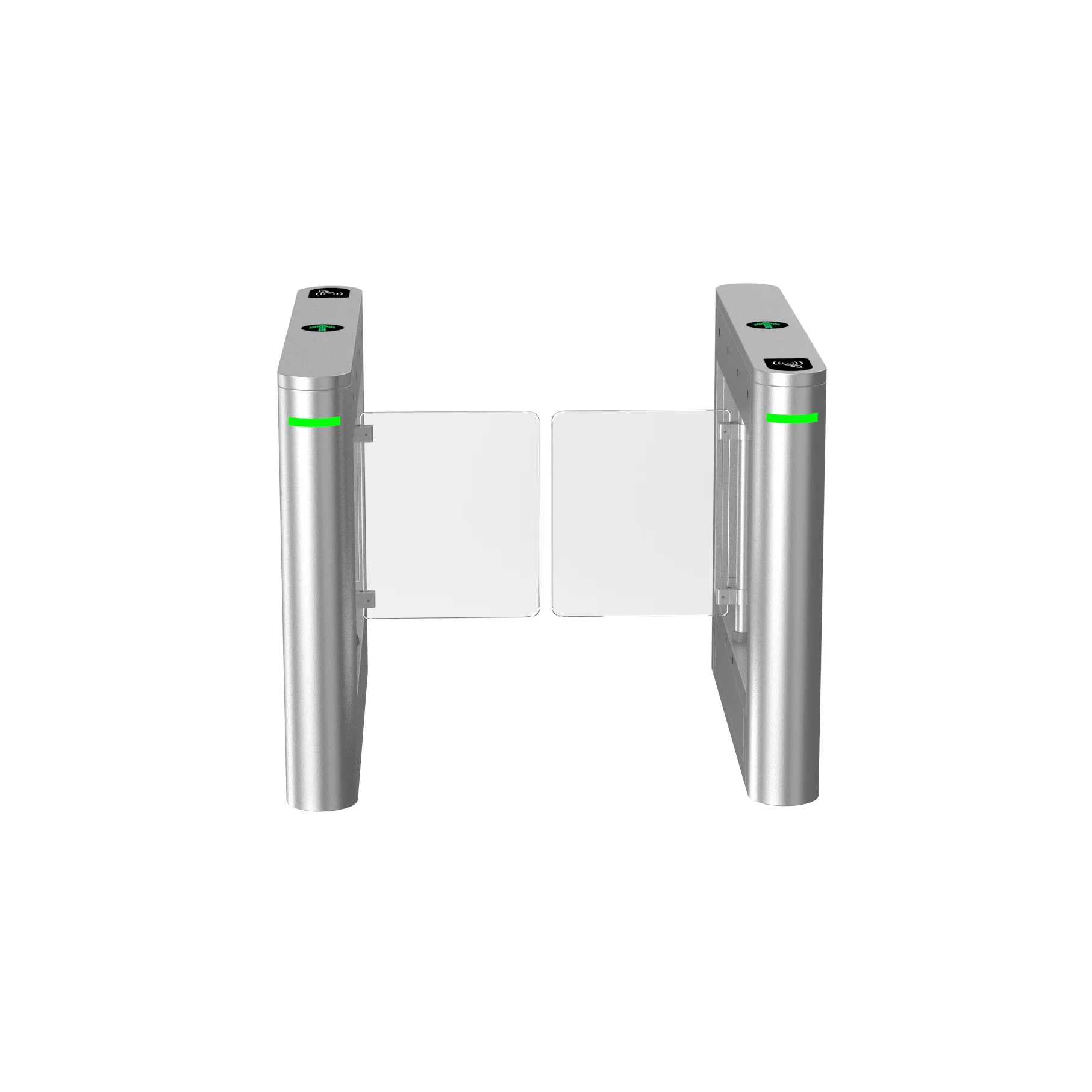

The KPS-TD-3303 Arc-Shaped access control turnstile is manufactured from stamped national-standard 304 stainless steel and powered by a DC brushless motor. It features an elegant and modern design, offering high durability and strong resistance to external impact. The device supports various identification methods, including IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals, making it easy to integrate with access control systems. It is widely used for pedestrian access control in CBD business centers, well-organized office buildings, upscale residential communities, and kindergartens.
Dimensions
| Overall Size | 1200mm(L)*160mm(W)*980mm(H) |
| Passage Width | 550mm–900mm |
| Throughput Rate | 20–60 persons/min (actual speed may vary depending on user behavior and passage mode) |
Technical Specifications
| Power Supply | AC220V, 50/60Hz |
| Power Consumption | ≤180W per single lane; Standby power <16W |
| Physical Interfaces | RS485, left open, right open, fire alarm interface |
| MTBF (Mean Time Between Failures) | ≥ 5 million cycles |
Operating Environment
| Operating Temperature | -20℃ to 70℃ |
| Relative Humidity | ≤95%, non-condensing |
| IP Rating | IP54 |
| Applicable Environment | Indoor, outdoor |
Aesthetics
| Housing Material | 304 stainless steel; Top cover: 1.2mm (national standard); Body: 1.0mm (national standard) |
| Gate Material | Acrylic or U-shaped stainless steel tube |
Product Features
- Material Characteristics:The top cover is made of 1.2mm and the body of 0.8mm national-standard 304 stainless steel for high durability and corrosion resistance.
- Structural Design:Outdoor waterproof construction suitable for both indoor and outdoor use. The top cover features an inward-flip design for convenient wall-mounted facial recognition installation.
- Motor Type:Equipped with a DC brushless motor with power-on self-check, offering low failure rate and long service life. Supports at least 5 million fault-free operations.
- Audio-Visual Alarm Function:LED indicators show the direction and status of passage. Both authorized access and unauthorized intrusion trigger corresponding sound and light alerts.
- Anti-Tailgating Function:Equipped with 4 pairs of infrared sensors and tailgating prevention technology. Only authorized individuals can pass. Unauthorized entry triggers an alarm. The system operates reliably in both sunny and rainy conditions without false alarms.
- Passage Memory Function:The system remembers the number of users after multiple authentications and closes the gate only after all have passed, allowing continuous and fast passage.
- Auto-Reset Function:If no passage occurs within the preset time after the gate opens, the system automatically cancels the current access permission. Passage time can be configured.
- Customizable Voice Prompts:Supports multiple voice options, allowing custom prompts to be played after card authentication according to different environments.
- Multiple Passage Modes:Supports bi-directional controlled access or controlled entry with sensor-triggered exit. Gate opening/closing speed can be adjusted based on pedestrian flow to improve efficiency.
- People Counting:Supports entry and exit counting functions for accurate statistics.
- Easy Maintenance:Clamp-type gate arm design makes arm replacement quick and convenient, simplifying future maintenance.
- Simplified Master-Slave Wiring:Only four wires are needed between the master and slave units, simplifying installation.
Safety Features
- Anti-Pinch Function:Infrared sensors detect obstructions during gate closing and trigger a sound alarm to prevent injury.
- Obstacle Rebound Function:If an obstacle is detected during gate reset, the motor stops automatically. If the gate closes without triggering infrared and encounters an obstacle, it rebounds to the open position to prevent injury.
- Power-Off Auto-Open:Equipped with a supercapacitor. In case of power failure, the gate wings automatically open to allow free passage and avoid panic.
- Multi-Level Anti-Collision Buffering:If the gate is forced without receiving an open signal, it buffers the impact angle and activates immediate reverse thrust and an alarm. This design minimizes injury and mechanical damage from frequent or repeated collisions, extending the motor’s lifespan.
- Fire Alarm Integration:Upon receiving a fire alarm signal, the gate will open automatically for emergency evacuation.
- Built-in Leakage Protection:Enhances personal safety and simplifies on-site wiring. All electrical modules in the unit operate at no more than 24V for added safety.
Optional Features
- Wireless Receiver (Optional): Can be paired with a remote control to enable remote gate opening, normally open, and normally closed modes. One receiver can connect to up to 80 remote controls, and one remote control can be paired with multiple receivers to achieve one-to-many functionality.
- Access Control Integration (Optional):Supports integration with facial recognition systems, IC/ID card readers, and QR code scanners.
