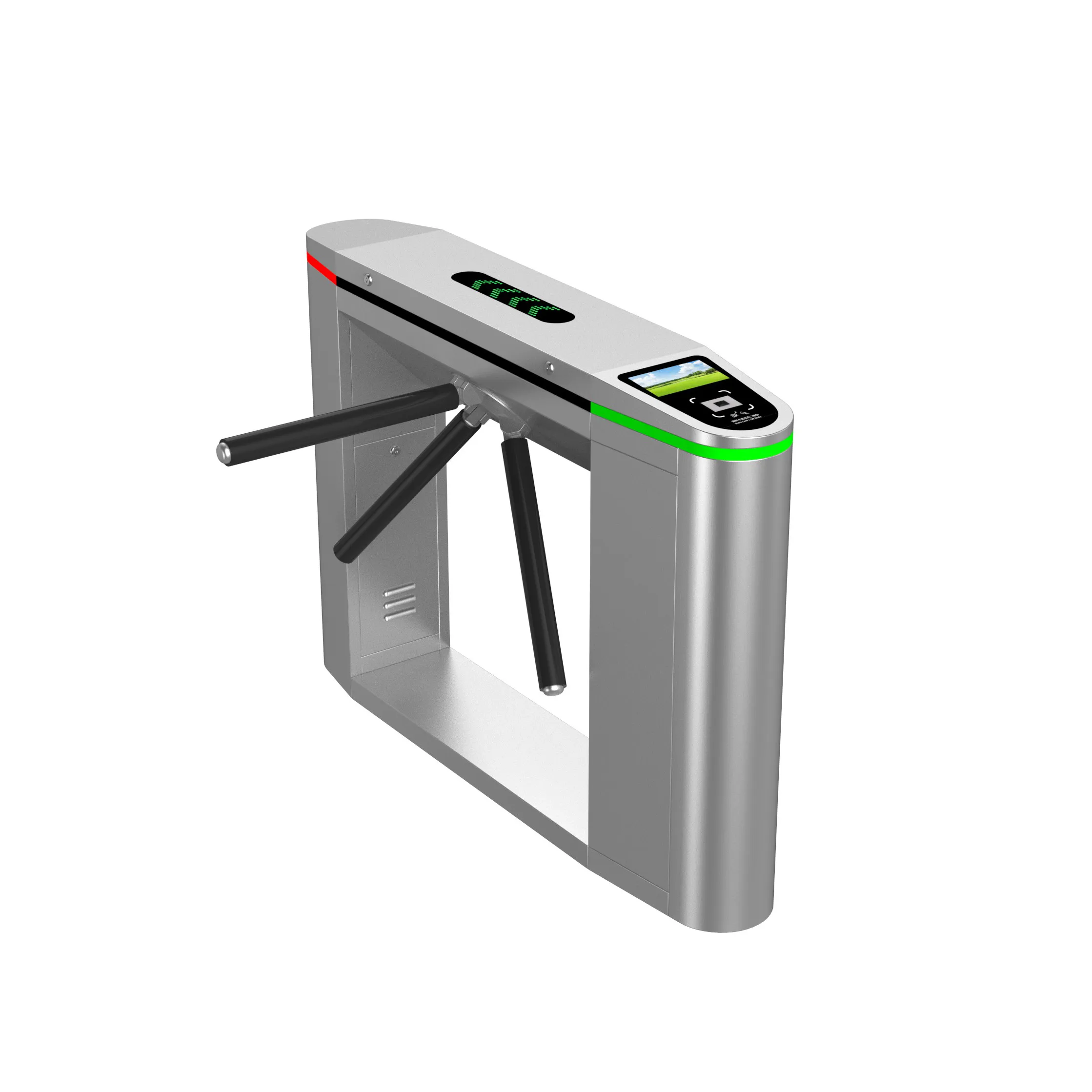

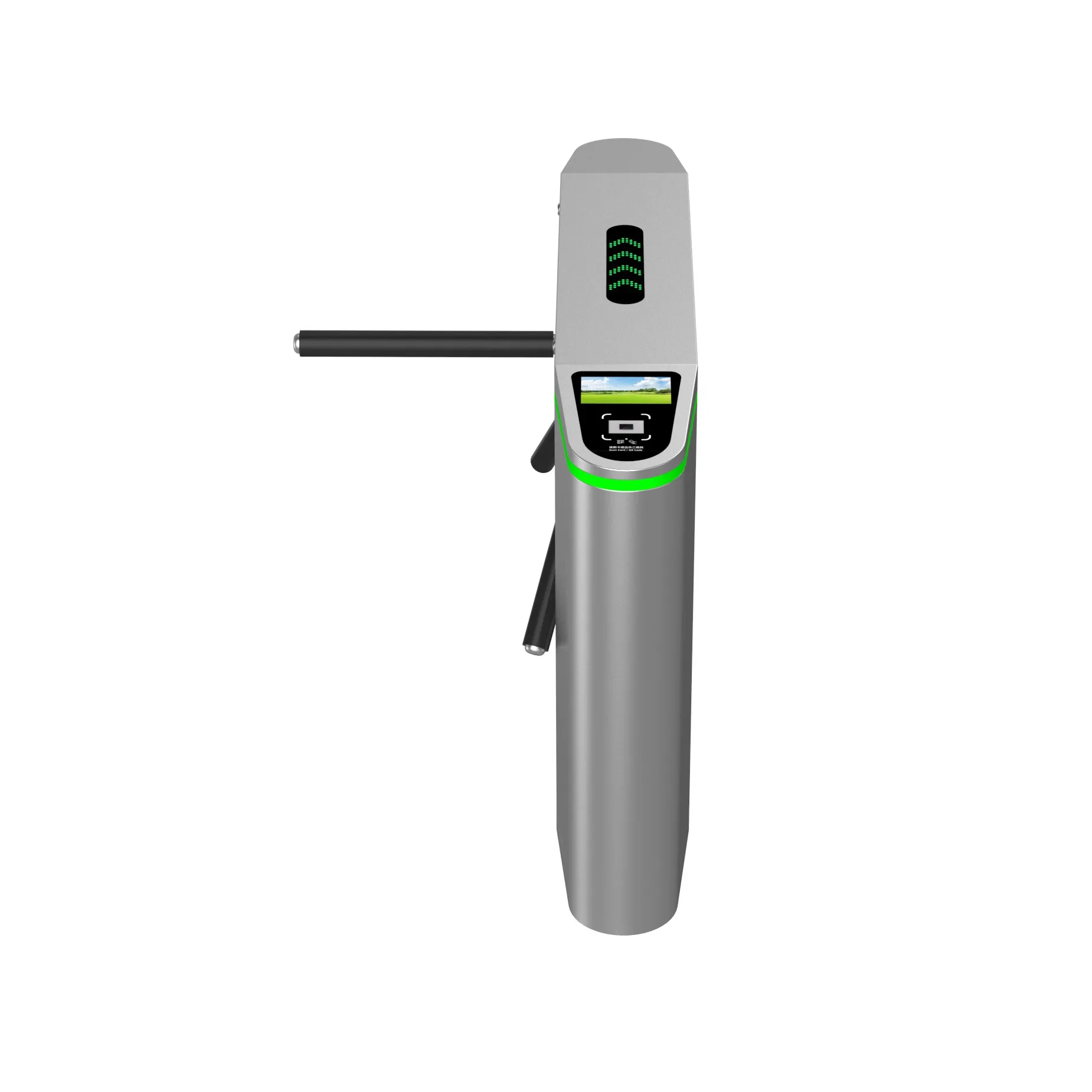

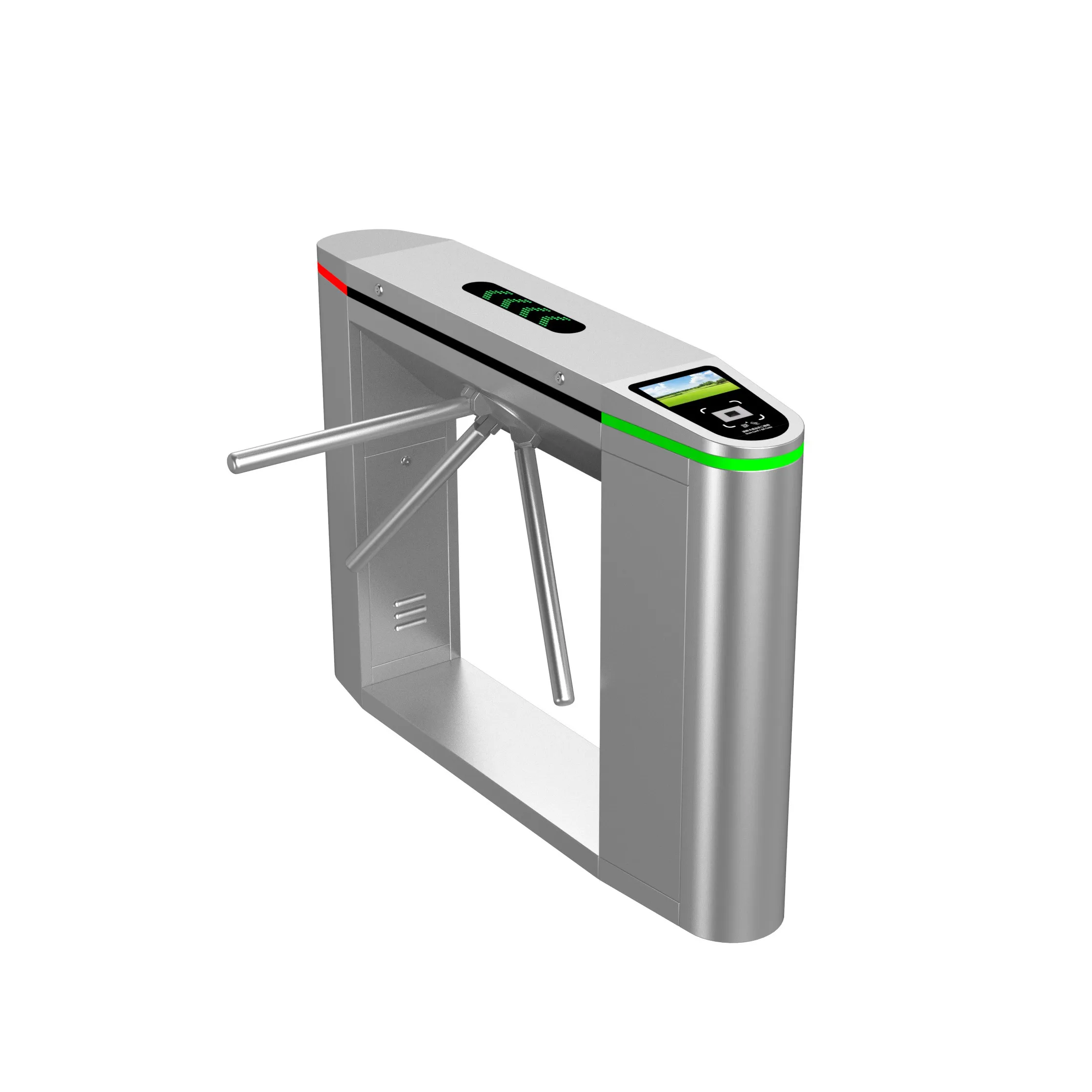

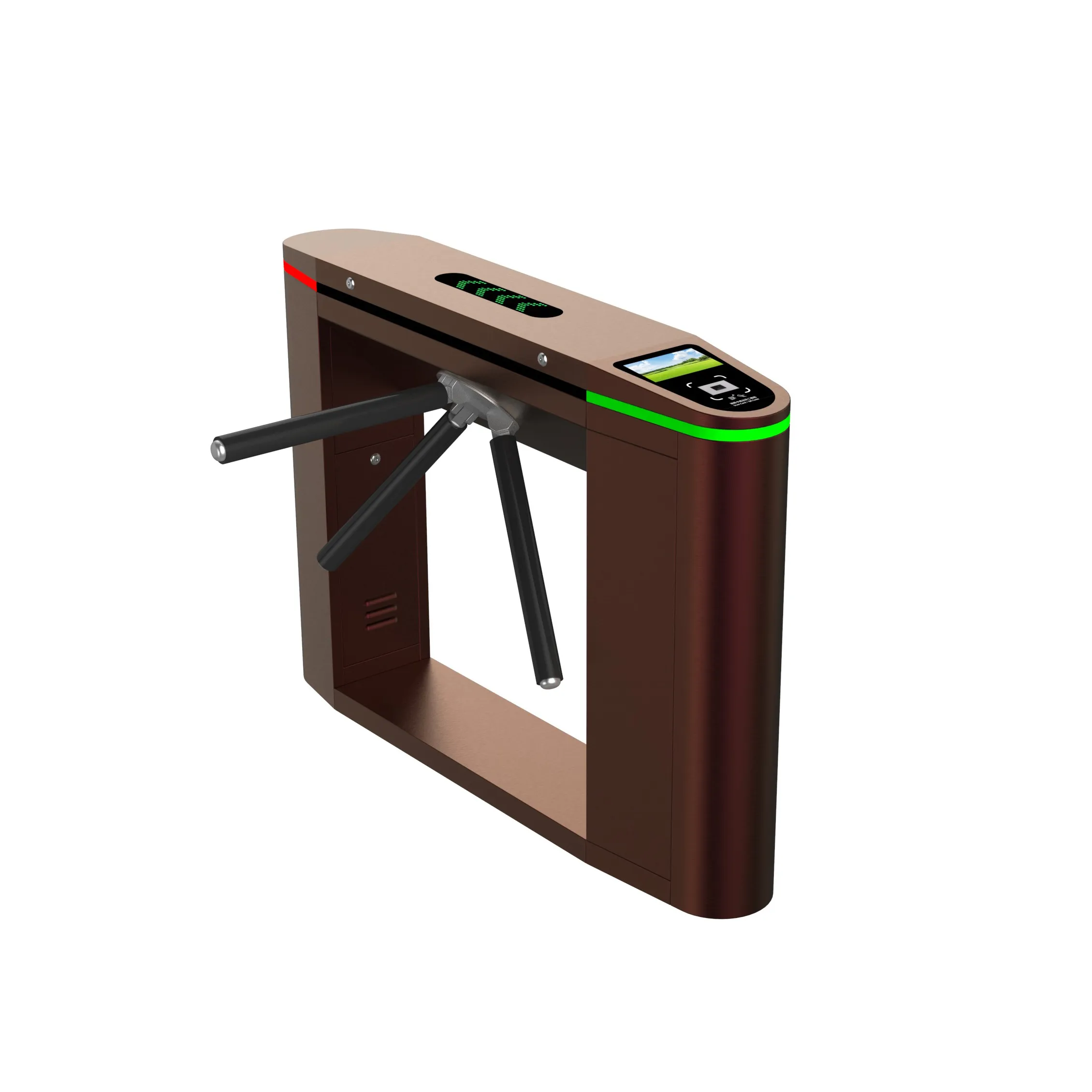

Kapaisi Access Control Tripod Turnstile KPS-TD-3106

Kapaisi Access Control Tripod Turnstile KPS-TD-3106

The Kapaisi Access Control Tripod Turnstile KPS-TD-3106 uses high-longevity and high-stability components in all key modules, making it ideal for high-traffic ticketing scenarios. It supports optional integration with facial recognition modules, ticketing control units, 7-inch HD LCD displays, ID card readers, various IC/ID card readers, QR code scanners, and ID verification devices. Interface documentation is available to facilitate seamless integration with various systems. This turnstile is widely used for access control in scenic spots, buildings, residential communities, universities, and stadiums.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• The housing is made of high-quality 304 stainless steel with a national standard top cover thickness of 1.75mm and body thickness of 1.45mm. The body includes side sealing panels, ensuring a stable and sturdy structure.
• The entire unit uses a grooving process with minimal gap spacing. It features an outdoor waterproof design, suitable for both indoor and outdoor use.
• Equipped with a brushless DC motor that performs self-checks on power-up, offering low failure rates and an exceptionally long service life.
• Features large LED indicators displaying passage direction and status. Authorized access triggers green light; unauthorized pushing activates audible and visual alarms.
• Unique noise-reducing mechanism design ensures low-noise operation, enhancing the user experience.
• Only authorized users can pass. If an unauthorized user attempts to push through, the clutch locks and triggers audible and visual alarms.
• Auto-reset function: If authorized users do not pass within the preset time, the system automatically cancels the current access permission. The time limit is user-configurable.
• Flexible passage modes including normally open, normally closed, bi-directional, one-way authorization, and free passage; modes can be freely combined.
• Passage memory function: The turnstile can receive multiple consecutive authorizations and allow the corresponding number of users to pass, tracking the count in real-time until the last person passes.
• Fire linkage and emergency: Supports external fire alarm or emergency button signals. Upon receiving a signal, the arm drops automatically, meeting fire safety requirements.
• Anti-reverse function: The control board detects rotation direction via sensors; only forward rotation after authorization is allowed; reverse rotation triggers automatic locking.
• Automatic arm lift and drop: The arm automatically drops during power failure to ensure unobstructed passage and lifts automatically when power is restored, improving efficiency.
• Personalized voice prompts: Offers multiple voice options to broadcast specific messages after card swipes, suitable for different locations.
• Provides linkage input interface to enable remote control of the turnstile, meeting special user requirements, fire safety standards, and remote management needs.
• Features self-diagnosis and alarm functions for easy maintenance and use.
• Ventilation system: Designed with special airflow channels, equipped with dual long-life ball-bearing fans and insulation cotton to effectively prevent condensation caused by temperature differences inside and outside the housing.
• Built-in leakage protection device enhances personal safety and facilitates onsite wiring. All related electrical modules operate at voltages below 24V.
• Supports optional peripherals including facial recognition modules, ticketing control units, 7-inch HD LCD displays, ID card readers, various IC/ID card readers, QR code scanners, and ID verification devices.
