Kapaisi KPS-TD-3802 Access Control Speed Gate Turnstile

Kapaisi KPS-TD-3802 Access Control Speed Gate Turnstile

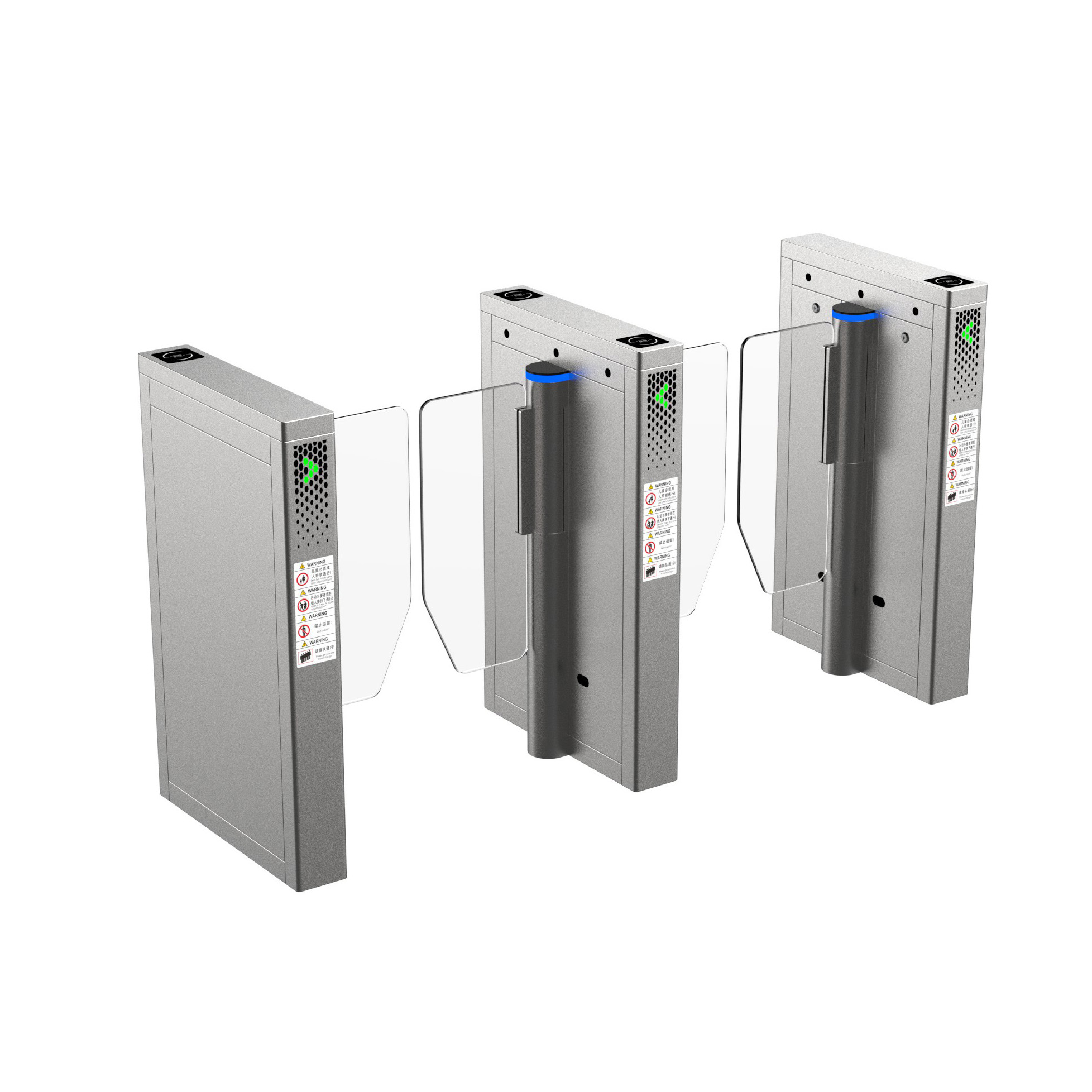

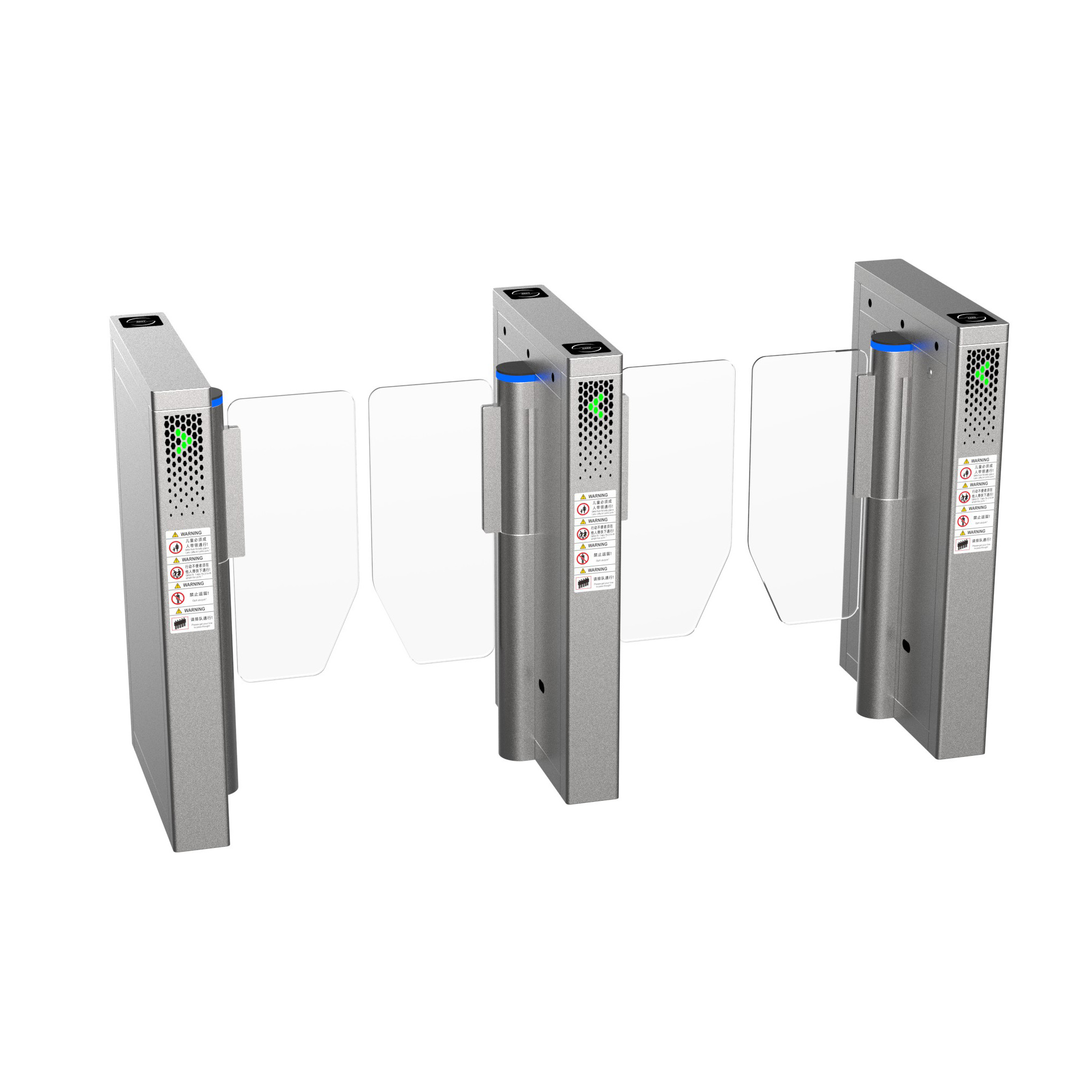

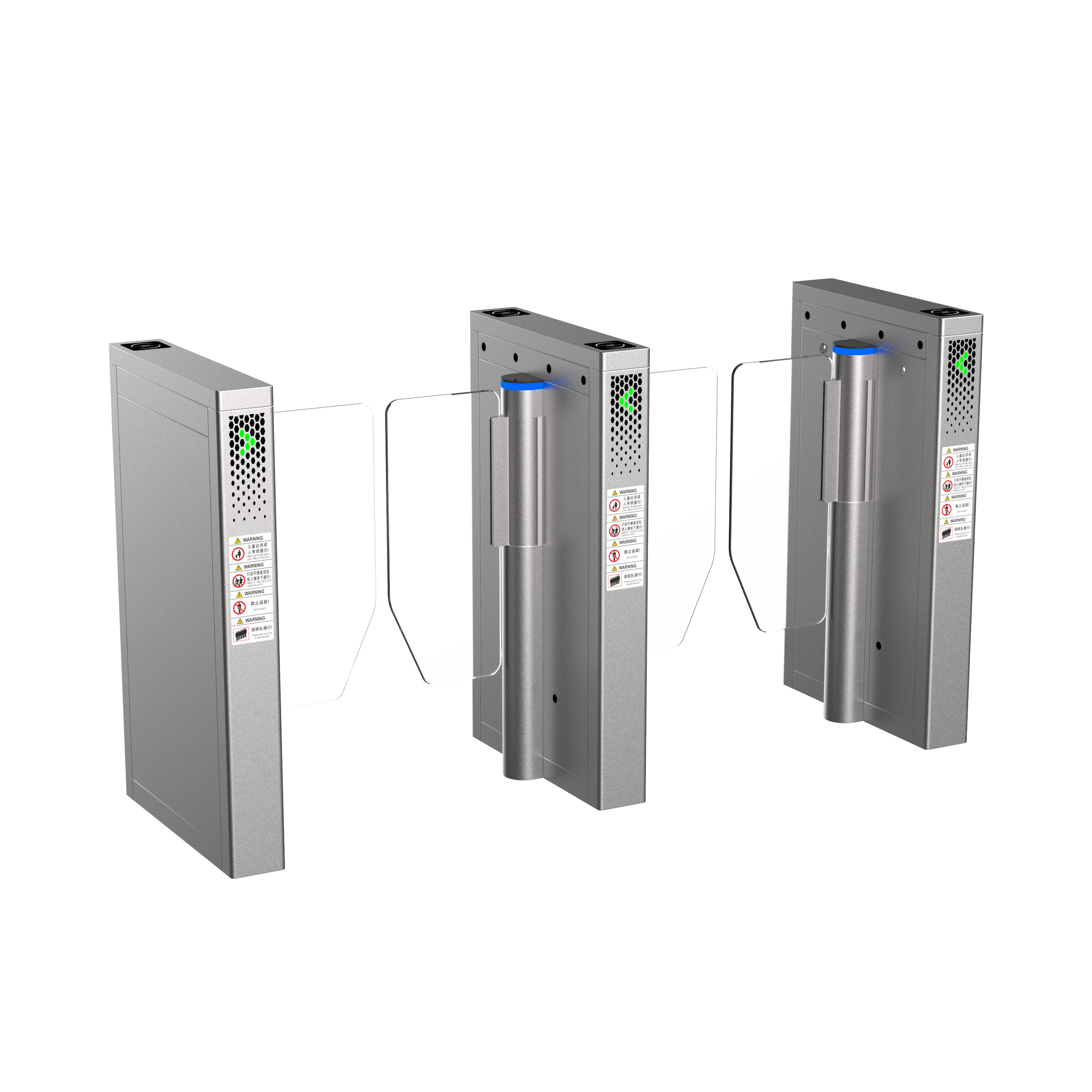

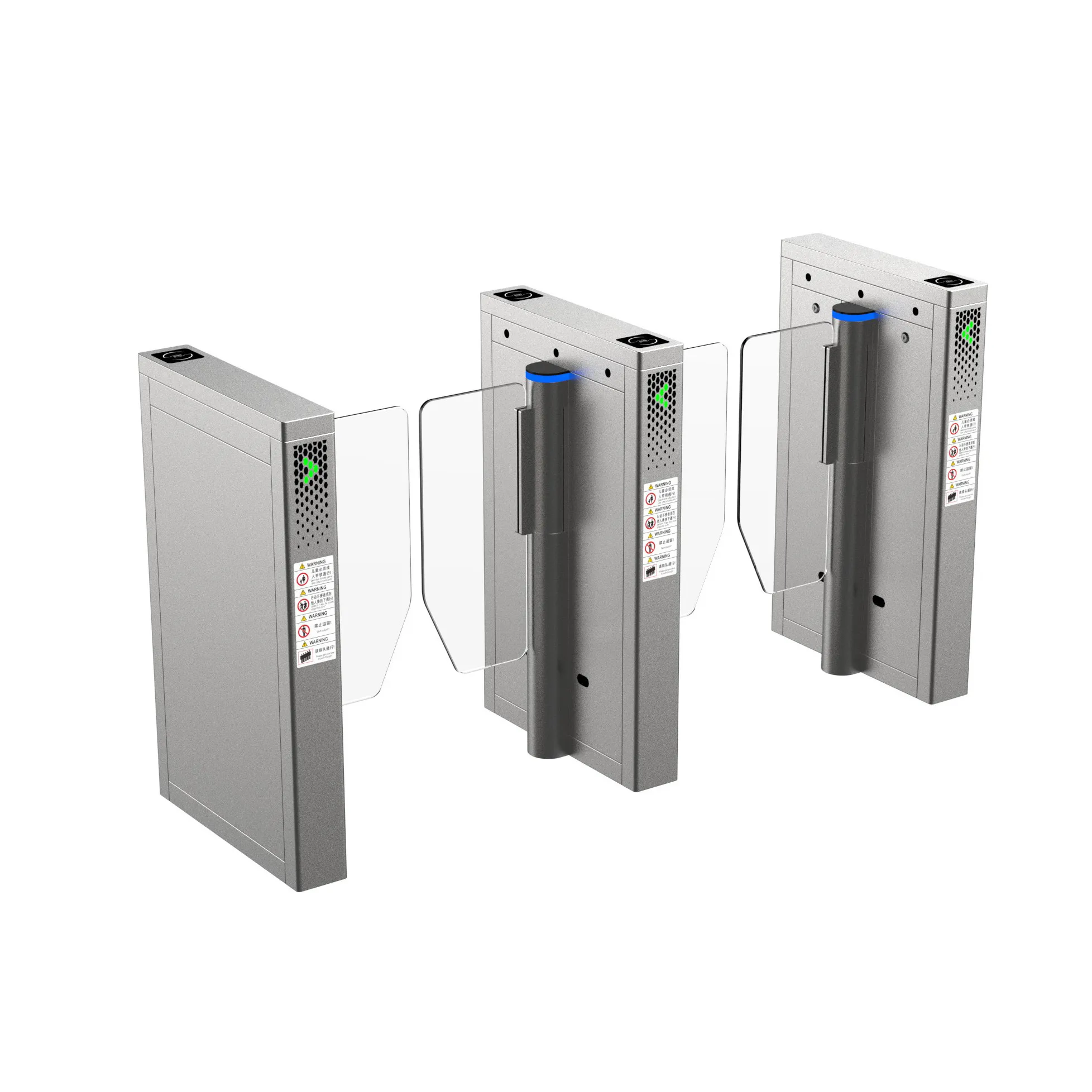

The Kapaisi KPS-TD-3802 Access Control Speed Gate Turnstile is made of high-quality national standard 304 stainless steel through stamping, featuring a sleek and modern design that is both durable and resistant to external damage. It is equipped with a brushless DC motor for reliable and long-lasting performance. The gate supports a wide range of access control devices, including IC/ID card readers, ID card scanners, QR code readers, and facial recognition terminals, making it easy to integrate with various access control systems. It is widely used for pedestrian access control in CBD business centers, modern office buildings, high-end residential communities, and kindergartens.

Dimensions

Technical Specifications

Operating Environment

Aesthetics

Product Features

• Material Quality: The entire housing is made of high-quality 1.2mm national standard 304 stainless steel, offering a stable and robust structure.
• Craftsmanship & Structure:The entire unit adopts grooving technology for tighter seams and refined workmanship. The waterproof structure is suitable for both indoor and outdoor use. The inward-folding top cover makes it convenient to install facial recognition devices close to a wall.
• Motor Type:Equipped with a brushless DC motor, which performs self-check on startup, ensuring low failure rate and long service life.
• Audio-Visual Alarm Indicators:Features LED indicators for passage direction and status. Audible and visual alerts are triggered for authorized access or unauthorized intrusion.
• Passage Memory Function:When multiple authentications occur, the system records the number of users and allows all to pass before closing, enabling fast and continuous passage.
• Auto-Reset Function:If no passage occurs within a set time after opening, the system automatically cancels the access permission. Passage timeout duration is configurable.
• Custom Voice Prompts:Supports multiple voice settings to broadcast specific messages upon card reading in different environments.
• Multiple Passage Modes: Supports bidirectional controlled access, or controlled entry with sensor-based exit. The opening/closing speed can be adjusted based on pedestrian flow to enhance efficiency.
• People Counting:Supports separate statistical counts for entry and exit directions.
• Easy Maintenance: The gate wings adopt a clamp-style design, allowing for quick and convenient replacement, making maintenance easier.
• Simplified Master-Slave Design:The brushless control system uses a 1-to-1 master-slave configuration, requiring only a 4-core cable for communication between the main and secondary units, simplifying installation and maintenance.

Safety Functions

• Anti-Pinch Protection:Equipped with infrared anti-pinch sensors. If an obstruction is detected while the gate is closing, an audible alarm is triggered.
• Obstacle Rebound:If an obstacle is encountered during the gate’s reset process, the motor automatically stops to prevent injury. If the gate encounters resistance while closing without an IR trigger, it rebounds to the open position.
• Anti-Tailgating:Equipped with 5 pairs of infrared sensors and advanced tailgating detection technology. Only authorized individuals are allowed to pass; unauthorized intrusions trigger alarms. Functions reliably in various weather conditions without false alarms.
• Power Failure Access:In the event of a power outage, the gate wings automatically open to allow free passage and prevent panic.
• Brake Lock Anti-Collision:If no open signal is received and a user attempts forced entry, the high-precision clutch system will lock the gate after it is hit and deviates to a certain angle. It then automatically resets while triggering an alarm. This design prevents injury and significantly reduces mechanical damage from frequent or repeated impacts, extending the motor’s lifespan.
• Fire Alarm Integration:When a fire signal is triggered, the gate opens automatically for emergency evacuation.
• Built-in Leakage Protection:Equipped with a leakage protection device to enhance personal safety. All electrical components in the device operate at voltages below 24V, ensuring safe installation and usage on-site.

Optional Features

• Optional Wireless Receiver: When paired with a remote control, enables peak-hour always-open mode, single entry gate opening, and single exit gate opening.
• Supports Integration With: Various IC/ID card readers, ID scanners, QR code readers, and facial recognition terminals.
