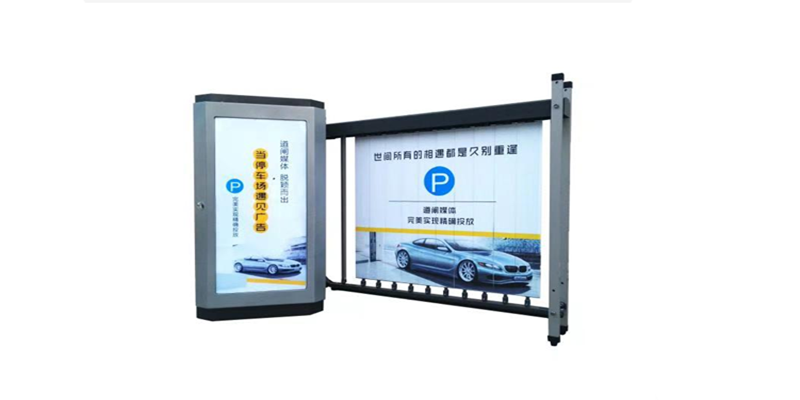

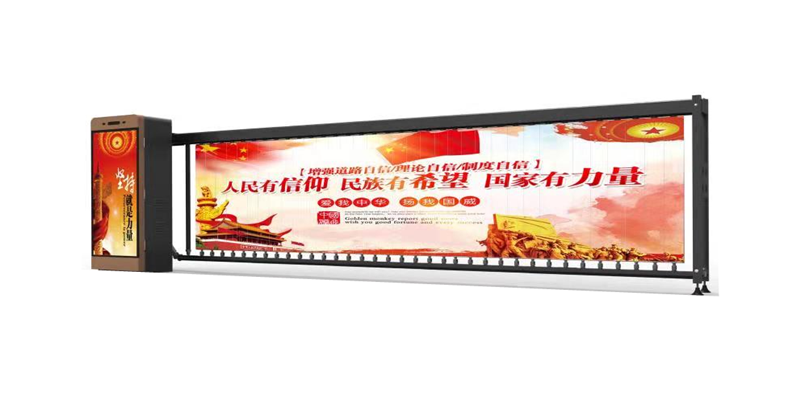

Five Key Features of Barrier Gate Advertising Media
Powerful Visual Impact
Precise Targeting of Mainstream Driving Consumers
Mandatory Exposure with Over 99% Reach Rate (Car Owners)
Exclusive Advertisement Display
Dynamic Presentation

Advantages of Barrier Gate Advertising Media
High-Quality Audience
The target audience primarily consists of middle- to high-income individuals in urban areas—those with strong purchasing power.Strong Selectivity and Targeting
Barrier gate advertising allows advertisers to directly reach their intended audience, based on specific demographic and geographic criteria. Unlike traditional media that deliver broad, generalized messaging, this format ensures the ad is seen by the most relevant consumers.Extended Exposure Duration
Unlike a 30-second television ad that disappears immediately, barrier gate ads remain visible for repeated viewing. Audiences can absorb the message multiple times before making a purchase decision, increasing recall and conversion potential.Unavoidable and Compelling Visibility
Positioned directly in the line of sight of drivers and pedestrians at entry and exit points, barrier gate ads cannot be ignored. This forced exposure significantly enhances brand visibility and influence.Highly Efficient Communication
Advertisers can strategically place ads in specific communities based on population demographics and location. With an average of five exposures per person per day, barrier gate advertising delivers accurate, focused, and repeated impressions.Measurable Effectiveness
The impact of advertising can be clearly evaluated by tracking changes in product sales before and after campaigns. This data-driven approach allows for better targeting and selection of future advertising locations—an advantage that outperforms many traditional media formats.

General Specifications
Item | Specification |
---|---|
Operating Voltage | 220V ±10% / 50Hz |
Motor Power | 200W |
Operating Temperature | -40°C to +80°C |
Barrier Arm Length | Customizable based on site requirements |
Number of Flip Panels | Determined by the length of the barrier arm |
Flip Panel Dimensions | 80mm × 830mm |
Lightbox Display Size | 450mm × 880mm |
LED Light Strip Power | 16.7A, 15W |
Boom Raise Time | Approximately 5 seconds (customizable upon request) |
Top Beam Center Height | 1050mm |
Remote Control Distance | ≤30 meters |
Input Interface | +12V level signal or a pulse signal over 100ms; driving current <10mA |
Communication Interface | RS485 (Electrical Standard) |
Overall Dimensions | 450mm × 360mm × 1180mm |

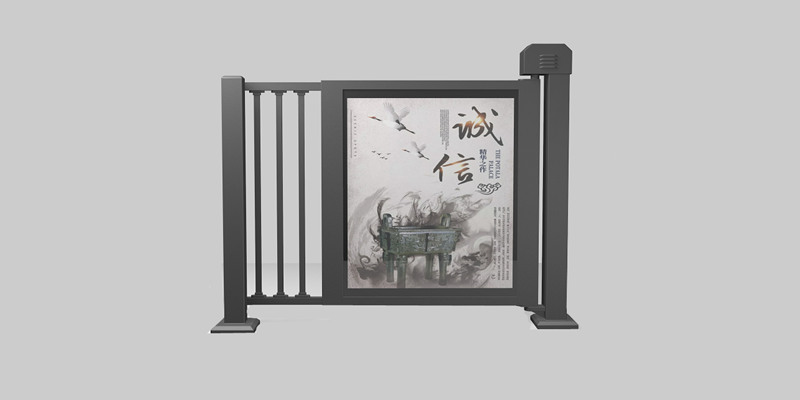

Advertising Barrier Gate Door – Specifications
Operation Modes
Card Swipe / Password / Push Button
Included Components
Control board
Motor
Power supply
Electromagnetic lock
Access control card reader
Material
Steel
Color
Onyx Black
Thickness
Door frame post: 2.0 mm (national standard)
Tempered glass: 5 mm
Advertising Display Size
Retractable version: 700 × 1128 mm (tempered glass)
Cabinet Dimensions
Retractable version: 1200–1800 × 143 × 1690 mm
Corrosion Protection
High-temperature baking paint with outdoor-grade powder coating; full-unit heat treatment
Door Opening Direction
Supports both left and right fixed-opening configurations
90° swing opening
Interchangeable left/right orientation
Functional Features
Adjustable door hold-open time: 3 to 10 seconds
Door automatically closes after pedestrian passes through
Door is locked by an electromagnetic lock, capable of withstanding up to 200 kg of pulling force
System Capacity & Integration
Maximum event log capacity: 60,000 entries
Communication interfaces: RS485 / TCP/IP
User capacity: up to 4,000 users
Compatible with most mainstream access control readers, enabling one-card access across residential communities
Electrical & Installation Details
Working voltage: DC 24V
Mounting base: 250 × 200 mm
Expansion bolts: M12
Operating temperature: –25°C to +65°C
Standard accessories: includes 2 remote controls (ideal for security room use)
Gear transmission system: large gear ratio design for extended motor lifespan
Motor type: Supports both brushed and brushless options
